Automatic Floor Deck Roll Forming Machine for YXB Series (0.8-2.0mm)
Floor deck roll forming machine for building construction. Processes closed/open type decks, 0.8-2.0mm thickness, 8-15m/min. 18-24 rollers, PLC control, ±1mm cutting. Q235B/Q355B/galvanized/color coated steel.
material quality：hot-dip galvanized sheet
producer：Guosu Technology Manufacturing
wxxl2024@gmail.com
Detail
High-Performance Open Floor Deck Machine: Accelerate Construction for Global Contractors
📅 May 25, 2026 · Read Time: 8 min
Table Of Contents
1. Equipment Introduction

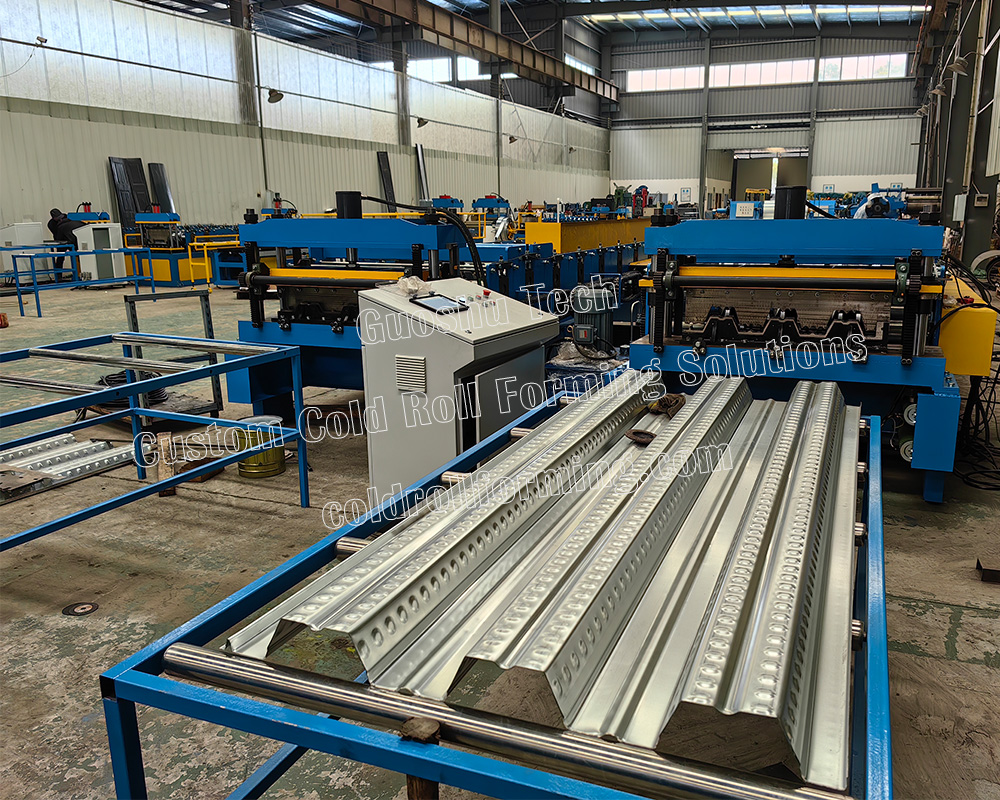

The open floor deck roll forming machine is an automated cold roll forming system specifically designed for producing open-type composite steel floor decks. It continuously converts galvanized steel coils or black strip steel into mainstream open profiles such as YX75-200-600, YX76-344-688, and YX51-250-750.

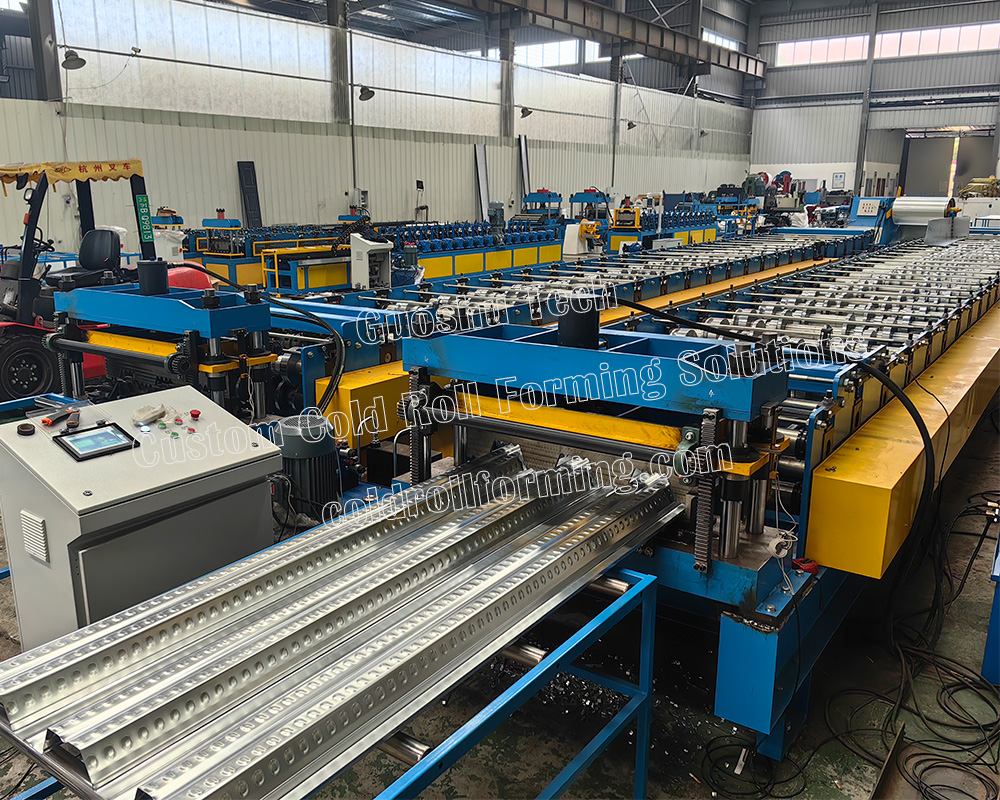

The complete production line adopts a heavy-duty frame structure, high-precision chromium-plated rollers, PLC intelligent control, and hydraulic fixed-length cutting. From uncoiling to stacking, the process is fully automated.
2. Core Features
🔧 High Precision Forming
Multi-pass roller design with quenching and chromium plating ensures consistent profile dimensions.
⚡ Efficient & Stable
Variable frequency speed adjustment adapts to different thicknesses and materials.
🔄 Multi-Profile Capability
Change roller tooling to produce multiple open profile types on one machine.
🎮 Smart Operation
PLC touch screen, parameter memory, fault alarm, automatic counting.
🏗️ Heavy-Duty Durable
Heavy-duty design suitable for long-term continuous operation.
3. Technical Specifications
4. Application Scenarios
🏢 High-rise buildings🏭 Industrial plants🏟️ Public buildings🅿️ Parking structures🏠 Steel-structured residential
5. Pain Points & Solutions
⏱️ Pain: Long procurement lead times
High-rise/large plant projects suffer from supplier delays and material shortages, causing costly site idling.
→ Solution: On-site just-in-time production. Deploy at project yard, produce at 8–15 m/min, PLC cutting ±1.0mm, reduce logistics wait by ~70%. Switch profiles (YX75/YX76) instantly.
📌 Case: SE Asia contractor produced 4,000m/day → finished 22 days ahead, saved 35% on storage & outsourcing.
📏 Pain: Poor accuracy & warping
Unstable decks cause lap misalignment and length errors >±3mm, delaying rebar and concrete work.

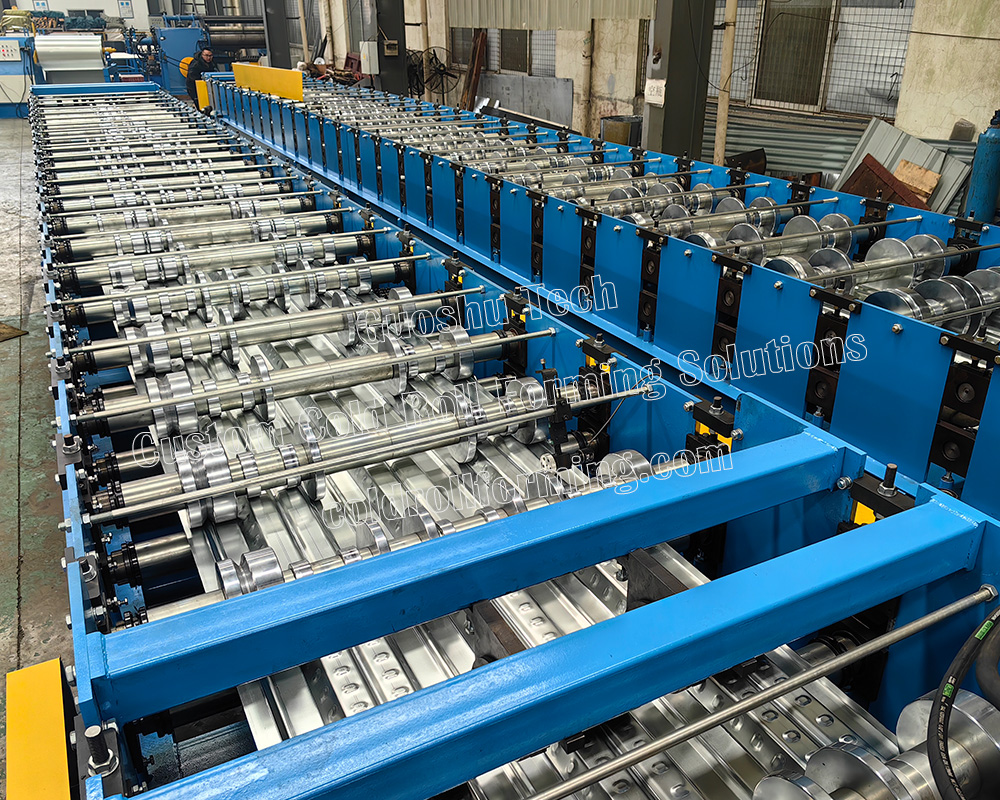

→ Solution: 18-24 heavy-duty roller stations, 45# steel rollers HRC55-60 + hard chrome plated. Hydraulic cutting tolerance ≤±1.0mm, no concrete leakage.
📌 Feedback: Middle East contractor → installation efficiency +50%, first-pass acceptance 100%.
🔄 Pain: Low machine versatility
Different projects require different profiles (YX51, YX75, etc.). Buying separate machines = high CAPEX + idle risk.
→ Solution: Universal quick-change roller system. PLC stores 20+ profile parameters, changeover within 2 hours. Processes up to 2.0mm high-strength material.
💰 ROI: Reduces equipment investment by ~65% — one machine, multiple decks.
6. Brand Advantages
✅ Professional experience
Years of cold roll forming expertise, rigorous pre-delivery testing.
Years of cold roll forming expertise, rigorous pre-delivery testing.
🌍 Full technical support
From selection to training, responsive WhatsApp/email service.
From selection to training, responsive WhatsApp/email service.
🔧 Flexible customization
Custom roller tooling for any open profile drawing.
Custom roller tooling for any open profile drawing.
🛡️ After-sales guarantee
12-month warranty, lifetime support, spare parts in stock.
12-month warranty, lifetime support, spare parts in stock.
🌏 Global recognition
Exported to SEA, Middle East, Africa, South America.
Exported to SEA, Middle East, Africa, South America.
