1. What Is a Cold Roll Forming Machine? (Cold Forming Machine Basics)

A cold roll forming machine (also called a cold forming machine, cold rolled steel machine, or cold roll mill) is a precision metalworking system that continuously bends flat metal strips or coils into custom profiles at room temperature. Unlike hot rolling mills, cold rolling machinery keeps the material below its recrystallization point, preserving mechanical properties while achieving complex cross-sectional shapes. This cold roll forming process is widely used in construction, automotive, solar mounting, and storage solutions due to its high efficiency, repeatability, and ability to produce virtually unlimited lengths.

Whether you call it a cold roll machine or a cold forming machine, the principle remains the same: progressive bending through rotating dies. With increasing demand for customization, high-end non-standard cold roll forming machines have become essential. Changzhou Guosu Technology specializes in full-process custom solutions – from design and manufacturing to commissioning – ensuring your unique profile requirements are met with precision.

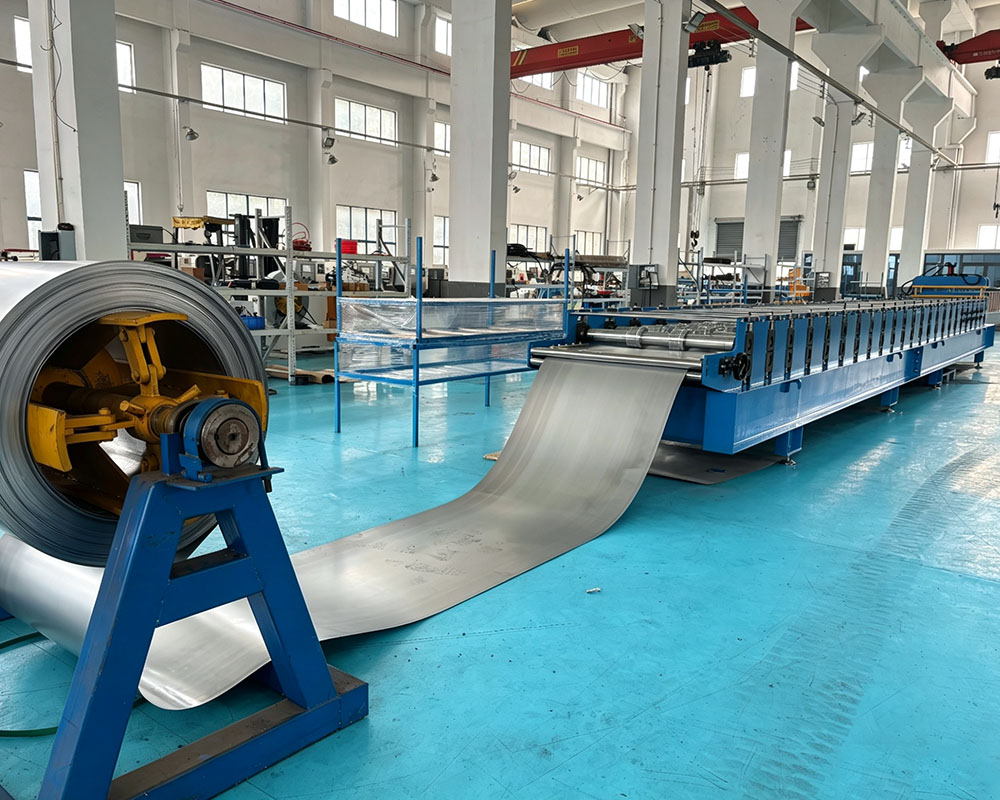

2. How Does a Cold Roll Forming Machine / Cold Rolling Machinery Work?

The operation of a cold roll forming machine follows a continuous, sequential process that distinguishes it from traditional cold rolling machinery used for sheet thickness reduction:

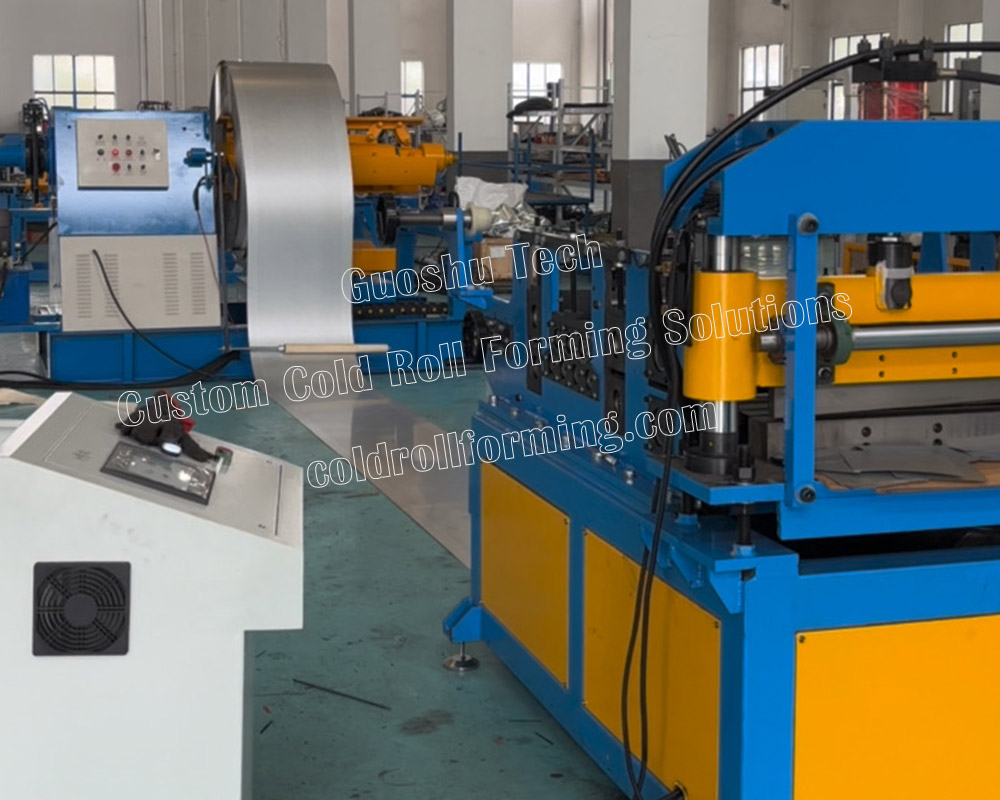

• Uncoiling & Leveling: A metal coil is loaded onto an uncoiler and passed through a leveler to remove curvature. (This step is common to all cold roll mills and cold forming machines.)

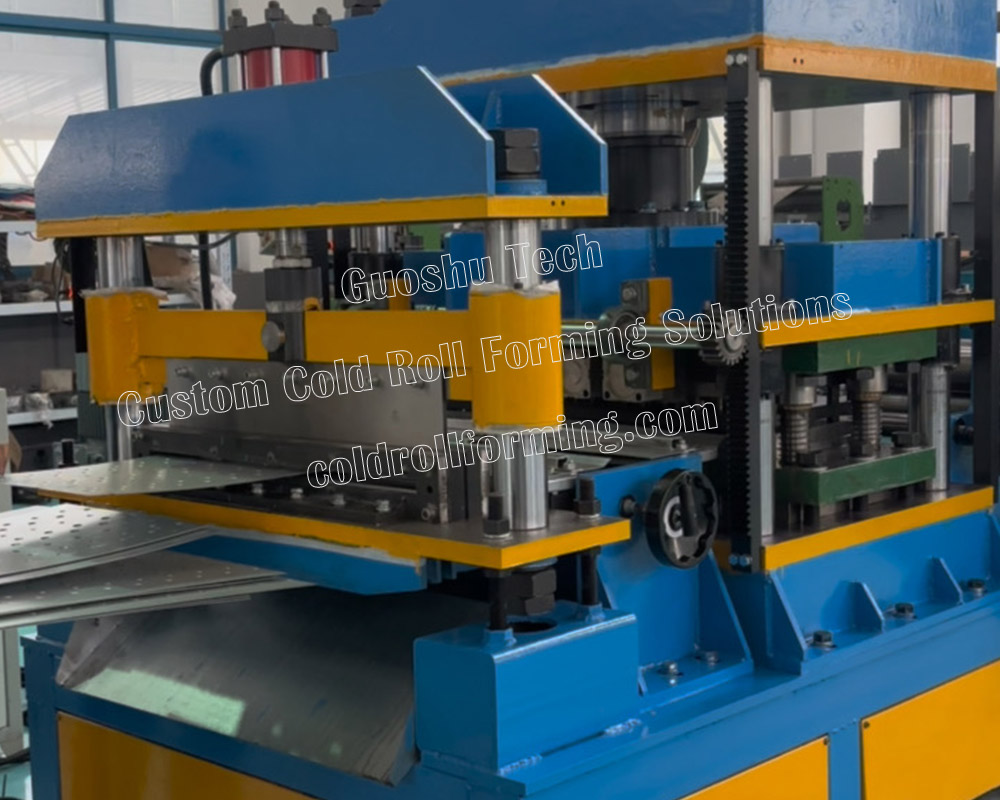

• Feeding & Pre-punching (optional): A servo feeder controls precise length; hydraulic punching creates holes or notches before forming.

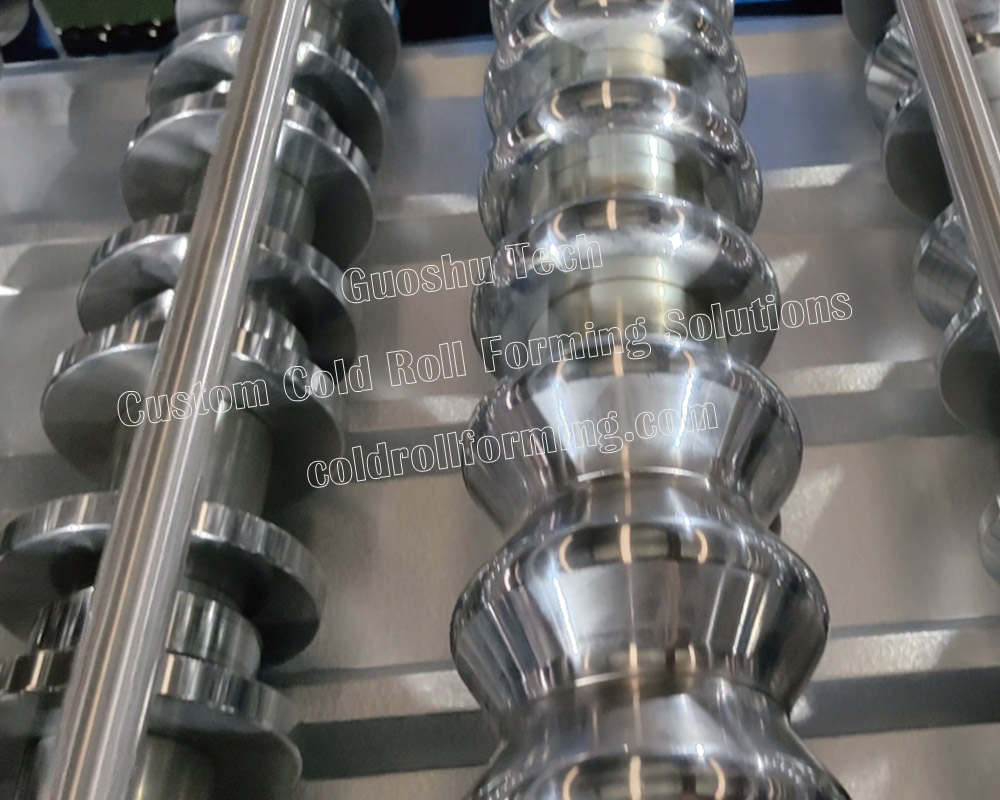

• Roll Forming Stations: The strip passes through multiple pairs of rollers (typically 12–24 stands). Each stand progressively bends the metal until the final profile is achieved – this is the core of any cold roll forming machine.

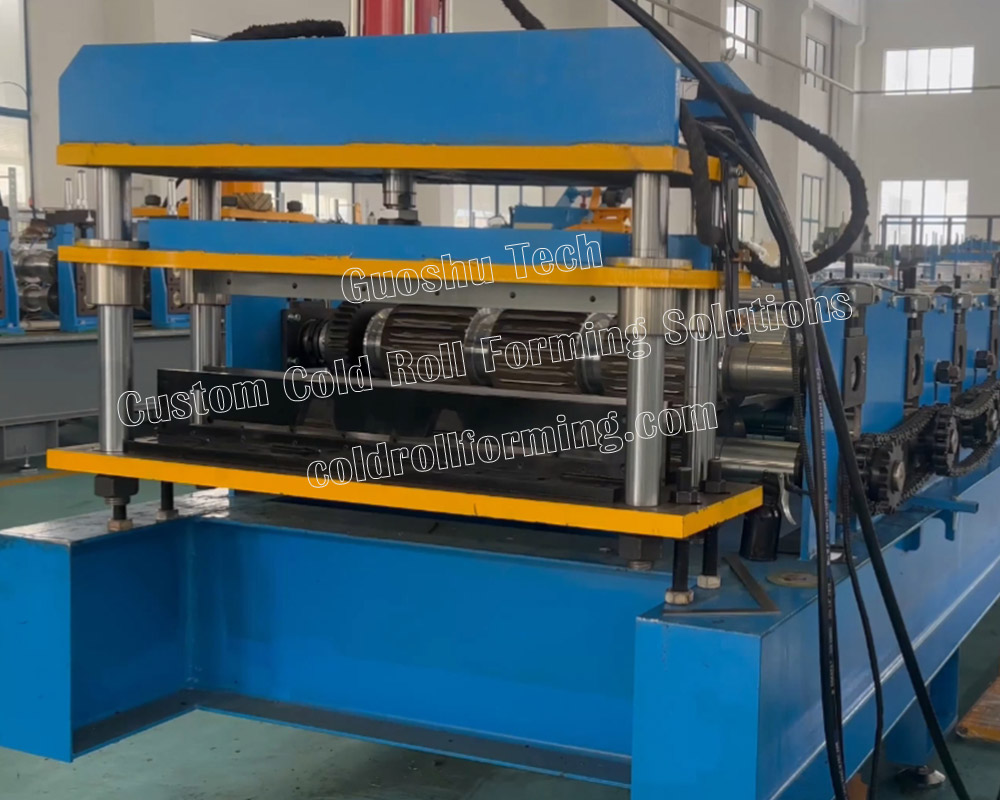

• Cut-to-Length: A flying shear or cut-off die cuts the profile without stopping the line.

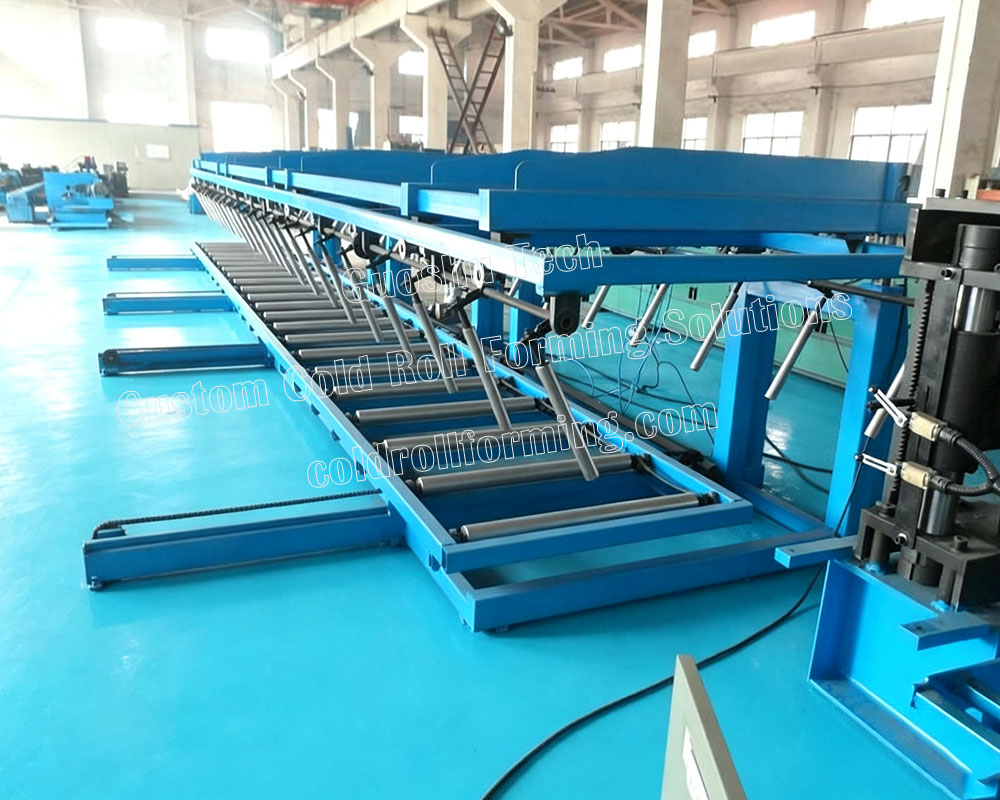

• Output & Stacking: Finished parts are collected on a run-out table or automatic stacker.




The entire process runs continuously at speeds from 10 to 60 m/min (and higher for servo lines). A high-quality cold rolled steel machine preserves the material’s original surface finish and mechanical strength, making it ideal for galvanized, pre-painted, or stainless steel.

3. Types of Cold Forming Machines & Cold Roll Mill Equipment

• Single-Stand Machines: Basic units for simple profiles or low-volume production – entry-level cold roll machine.
• Multi-Stand Continuous Machines: Industry standard – high precision and productivity for mass production. The most common cold forming machine configuration.
• Adjustable / Flexible Roll Formers: Quick width/depth adjustments without changing roll sets, ideal for JIT manufacturing.
• High-Speed Servo Lines: Independent servo drives per stand, capable of variable-depth and complex asymmetric profiles – advanced cold rolling machinery.
• Custom Non-Standard Roll Forming Lines: Designed specifically for customer drawings, integrating punching, embossing, bending, and automatic stacking. Changzhou Guosu Technology excels in this field, offering “turnkey” engineering for any cold roll forming machine requirement.

4. Key Benefits of Modern Cold Rolled Steel Machine Technology

• ✅ High precision & repeatability: Length tolerance ±1mm per meter, consistent cross-section.
• ✅ Excellent material yield: Almost zero scrap – up to 95%+ material utilization.
• ✅ High production speed: Continuous operation, much faster than press braking or welding.
• ✅ Unlimited length capability: Ideal for long-span structural members.
• ✅ Energy efficient & eco-friendly: No heating, low energy consumption compared to hot cold roll mill alternatives.
• ✅ Increased strength: Cold work hardening improves yield strength.
• ✅ Superior surface quality: No scale or coating damage, ready for direct use.

5. Cold Forming Machine vs. Cold Rolling Machinery vs. Other Methods

Note: A cold roll forming machine is often confused with a cold rolling machinery (reducing mill). The key difference: roll forming creates complex shapes, while cold rolling reduces thickness.

6. 2026 Cutting-Edge Cold Roll Forming Innovations

• AI-Driven Quality Control: Machine vision with real-time defect detection on every cold roll machine.
• Quick Tool Change Systems: Reduce changeover time to 5–10 minutes for flexible cold forming machines.
• IoT Remote Monitoring: Real-time data, predictive maintenance for your cold rolled steel machine.
• Hybrid Processes: Roll forming + welding + bending for closed sections.
• Energy Recovery Drives: Lower electricity consumption on high-speed cold roll mills.

7. How to Choose the Right Cold Roll Forming Machine (or Cold Roll Mill)

1. Profile shape, dimensions, material type & thickness – determine if you need a cold forming machine or a simple cold roll mill.
2. Production volume and required speed.
3. Frequency of size changes – flexible cold roll machine or dedicated line?
4. Required auxiliary functions (punching, bending, stacking).
5. Budget and long-term ROI.
6. Supplier’s customization and after-sales capabilities – especially for non-standard cold rolling machinery.

8. Why Choose Custom Non-Standard Cold Forming Machine?

Standard cold roll forming machines often fail to meet unique product requirements. Custom solutions from Changzhou Guosu offer:

• ✔ Design fully matching your product drawings
• ✔ Integrated processes to eliminate secondary operations
• ✔ Optimized machine size for your workshop
• ✔ Full automation and smart control system
• ✔ Complete support from design to commissioning

9. Safety Considerations for Cold Roll Machine Operation

• ⚠️ Always check safety guards and emergency stops before operation.
• ⚠️ Never reach into forming areas during machine running – applies to any cold roll forming machine.
• ⚠️ Use proper personal protective equipment.
• ⚠️ Regular maintenance and lubrication of all cold rolling machinery components.
• ⚠️ Professional training for all operators.

10. Industrial Applications of Cold Roll Forming Equipment

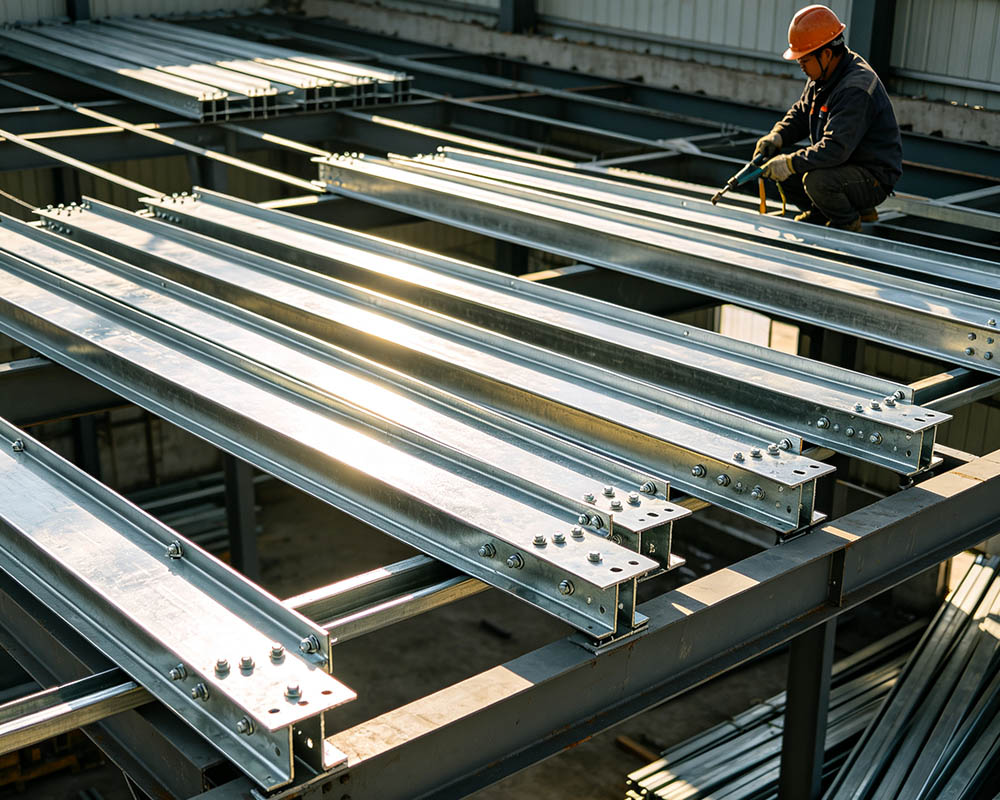

• Construction: C/Z purlins, wall panels, door frames (produced by heavy-duty cold roll forming machines).
• Solar Energy: PV mounting brackets and rails – high-speed cold forming machine.
• Storage: Rack uprights, beams, cable trays – precision cold rolled steel machine.
• Automotive: Structural parts, bumper beams.
• Furniture: Frames, shelves, display components.



11. FAQs: Cold Roll Forming Machine, Cold Forming vs Cold Rolling Machinery

12. Conclusion & Next Steps

Whether you call it a cold roll forming machine, cold forming machine, cold rolled steel machine, cold roll mill, or cold rolling machinery – this technology is indispensable in modern metal fabrication. For high-quality, high-efficiency, and customized production, a high-end non-standard cold roll forming machine is the optimal choice.

Changzhou Guosu Technology delivers reliable, precise, and fully customized cold roll forming solutions for global clients. We support your business with professional design, stable equipment, and comprehensive service.

Contact us today to get your personalized solution.
