1. What Is a Standing Seam Metal Roofing Machine?

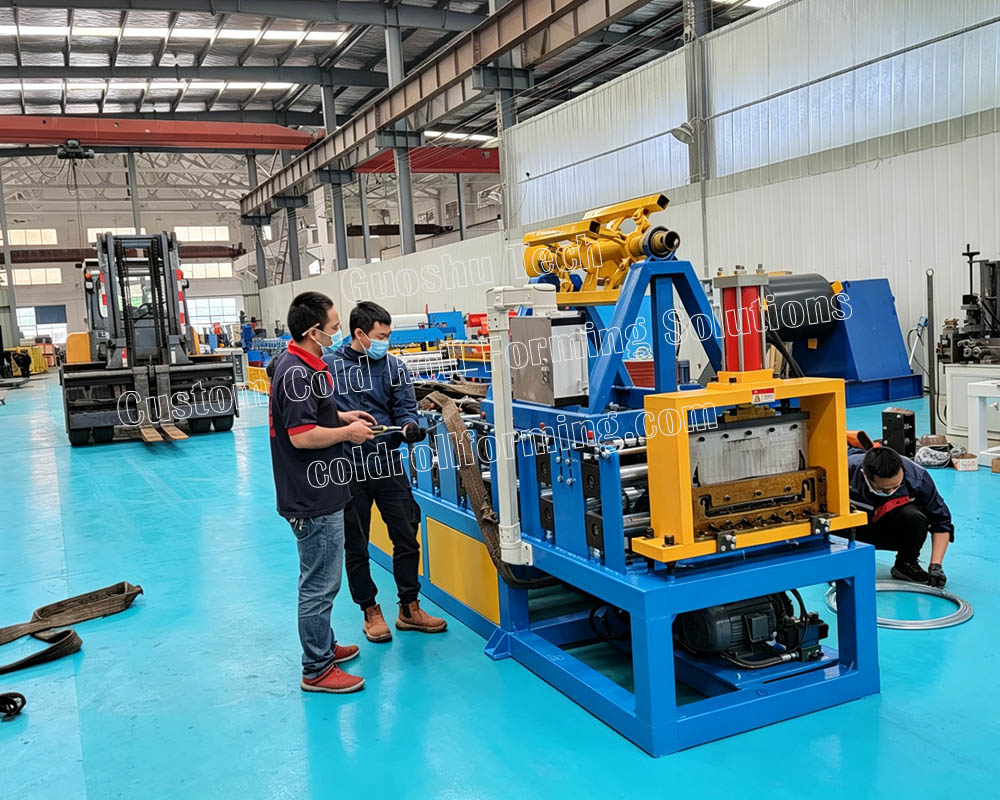

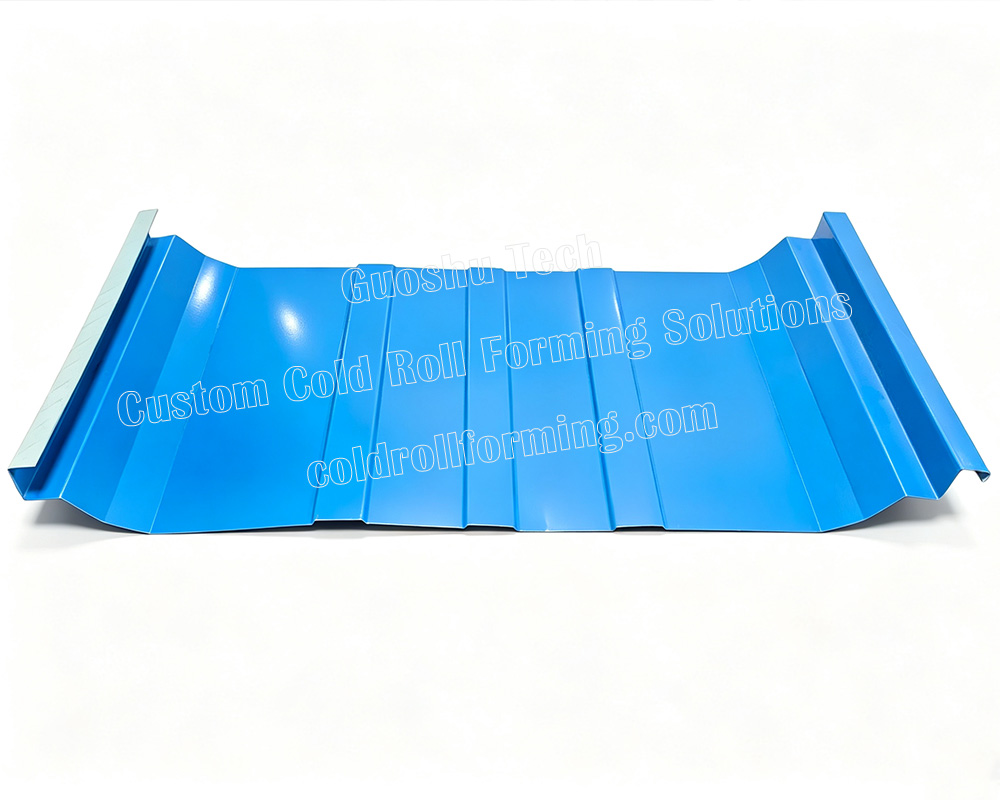

A standing seam metal roofing machine is a professional cold roll forming system that converts flat metal coils into integrated roof panels with raised vertical seams. Through continuous cold bending, precision rollers shape metal materials into uniform, interlocking panels.

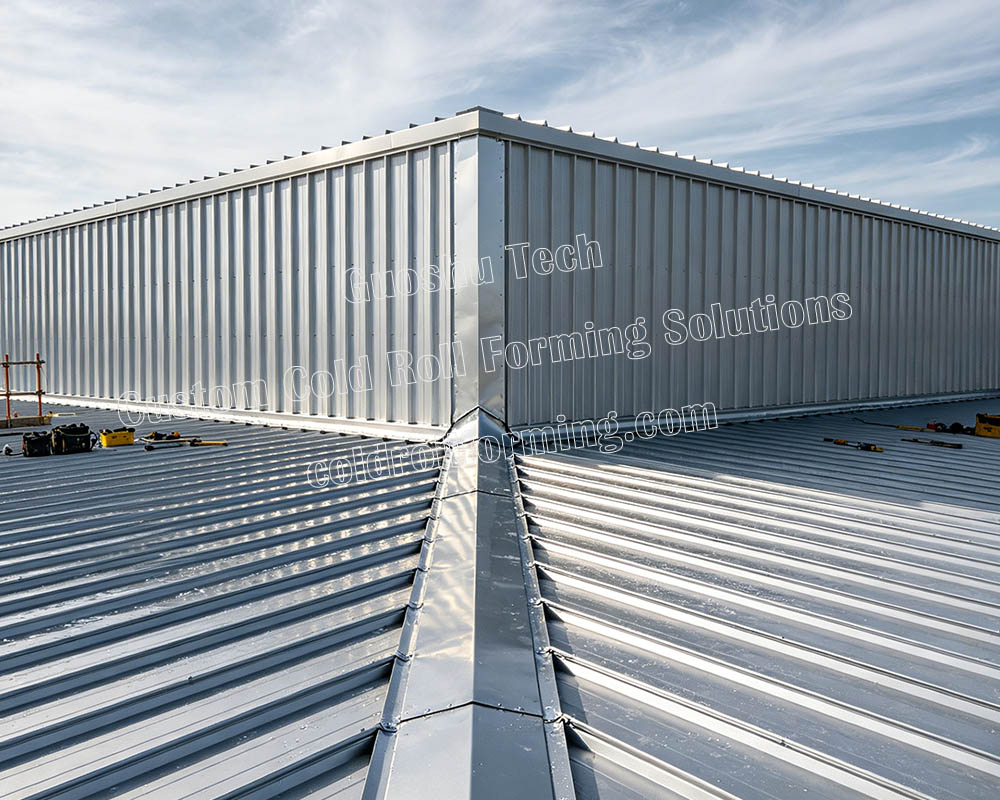

This concealed fastener design significantly improves waterproofing, wind resistance, and structural stability. The machine is widely used for commercial buildings, industrial factories, public facilities, and high-end residential roofing.
Supported materials: Galvanized steel, aluminum, color-coated steel
Typical thickness range: 0.3mm – 1.5mm
2. Why Use a Standing Seam Metal Roofing Machine?
| Advantage | Benefit |
|---|---|
| Excellent waterproof & wind resistance | No roof penetrations, reduces leakage risk |
| Long service life (>50 years) | Anti-corrosion, low daily maintenance |
| On-site production (mobile models) | Eliminates transport issues for ultra-long panels |
| High efficiency | Automatic feeding, forming, and cutting |
| Architectural aesthetics | Customizable panel width and seam height |
| Energy saving | Reflective surface reduces heat absorption |
3. Types of Standing Seam Metal Roofing Machines
By Production Mode

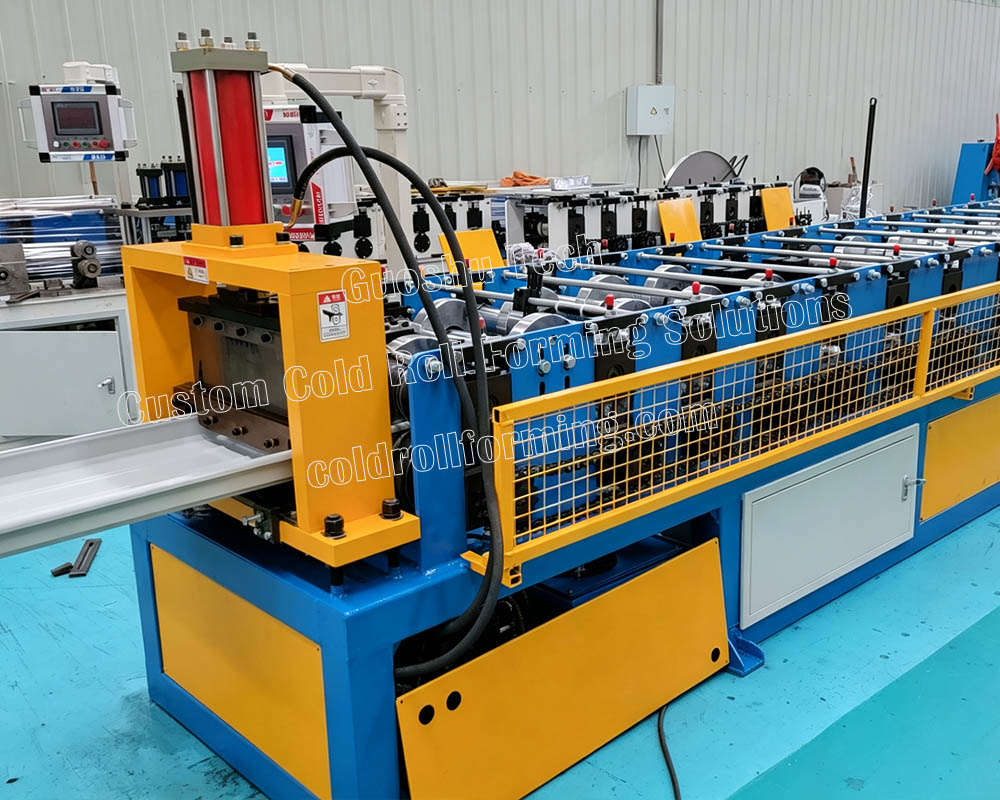

Fixed Factory Type – High speed, stable output, ideal for mass production

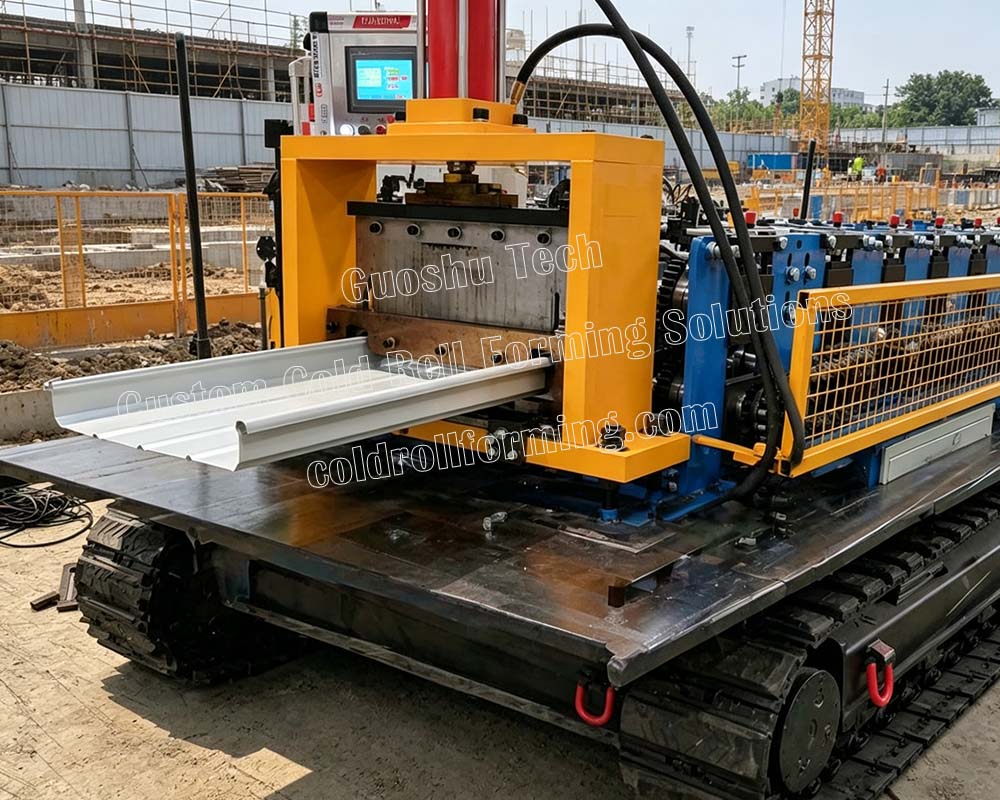

Mobile On-Site Type – Lightweight, transportable, perfect for contractors
By Seam Connection
Snap Lock – Simple installation, low difficulty, good for residential & light commercial
Mechanical Lock – Requires seaming equipment, higher sealing & wind resistance, ideal for coastal areas
By Automation Level
Semi-Automatic – Lower cost, manual assistance needed
Fully Automatic – PLC control, one-key operation for large-scale continuous production
4. Which Standing Seam Roofing Machine Should You Choose?
| User Type | Recommended Machine | Reason |
|---|---|---|
| Small contractor / residential projects | Mobile snap lock | Low entry, flexible installation |
| Large manufacturer / industrial projects | Fully automatic mechanical lock | High output & accuracy |
| Curved / special-shaped buildings | Customized forming equipment | Designed for unique profiles |
| Startup / limited budget | Semi-automatic | Basic production, upgrade later |
5. Disadvantages and Limitations
- Higher initial cost – More expensive than standard corrugated panel machines
- Operator training required – Familiarity with settings and basic troubleshooting
- Time-consuming profile changes – Not ideal for frequent small-batch switching
- Limitations on complex curved roofs – Best for linear roofs
- Core component maintenance – Precision rollers and control modules cost more to replace
6. Conclusion
The standing seam metal roofing machine is essential equipment for the metal building materials industry. It produces high-strength, waterproof, and durable roof panels for commercial, industrial, and residential projects.
While the initial investment is higher than standard roll formers, the long-term benefits – service life, construction efficiency, low maintenance, and energy savings – make it a smart choice.
As metal building materials continue to evolve, demand for standing seam roofing machines will keep growing steadily.
7. Frequently Asked Questions (FAQ)
8. Latest Case Studies

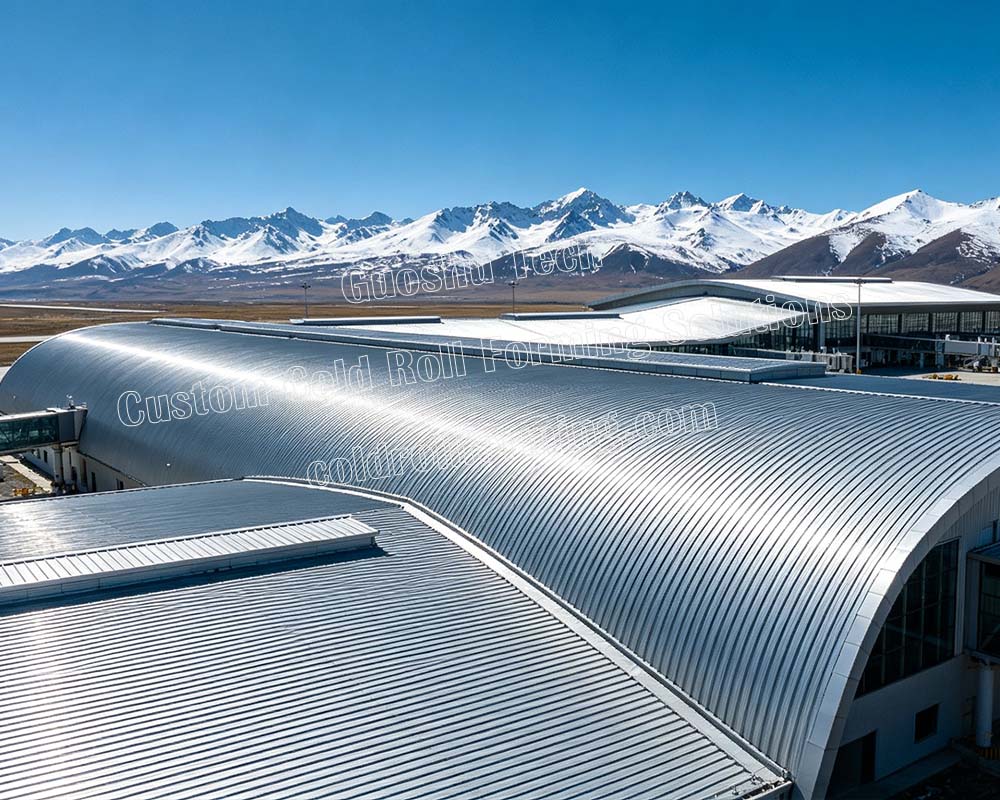

Case Study 1: High-Altitude Airport Roofing Project (2025)
Background: A South American high-altitude airport (elevation 3,800 meters) was expanding its terminal building with a standing seam metal roof. The site experienced large temperature fluctuations and strong UV exposure. Standard forming equipment showed hydraulic system efficiency loss and PLC false alarms under high-altitude conditions.
Solutions: Selected a boosted hydraulic station and wide-temperature PLC module (operating range -30°C to 70°C) suitable for high-altitude environments. Added a 48-hour continuous no-load test during commissioning to identify environmental adaptability issues in advance. Tightened panel length tolerance from ±2mm to ±1mm during production to compensate for thermal expansion/contraction.
Results: Equipment passed high-altitude acceptance with 3 months of continuous operation without any failures. Completed roof panels passed 100% water spray testing with zero leaks. Project owner included this equipment solution in technical specifications for 2 subsequent high-altitude projects.
Case Study 2: On-Site Production Advantage in Old Factory Renovation (2024)
Background: A Canadian food processing plant needed to replace its existing roof without stopping production. The facility had cold storage lines and production equipment inside, making it impossible to lift long panels from above, nor could large amounts of material be stored on site.
Solutions: Used a mobile standing seam roll forming machine to produce panels in the plant's parking lot. Production scheduled for 10:00 PM to 6:00 AM, avoiding normal operating hours. Finished panels were immediately transported to installation points by small lift trucks, with no on-site accumulation.
Results: Plant never stopped production – daily output value unaffected during renovation. Longest single panel produced on site reached 26 meters, reducing seam overlaps significantly. Contractor towed the mobile machine directly to the next remote job site after completion.

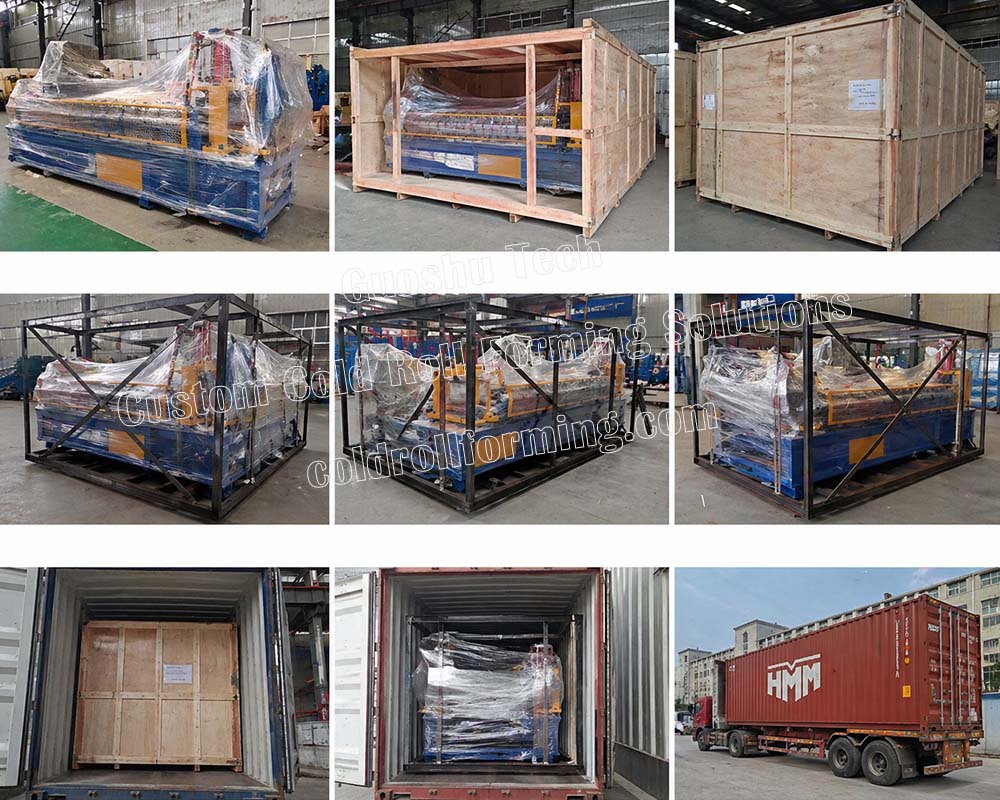

Case Study 3: Practical Application of ISPM-15 Packaging for Exported Equipment (2025)
Background: A Middle Eastern building materials trader purchased 2 mobile standing seam roll forming machines requiring full container shipment. Previously, poor non-ISPM-15 packaging caused port detention and high fees.
Solutions: Full plywood ISPM-15 compliant packaging with independent fumigation certificates. Roller dies packed separately in steel-framed crates for anti-collision protection. Complete customs documents attached for fast clearance.
Results: Equipment cleared customs within 2 days with no delays. Long-term packaging standard established for annual orders. Additional repeat orders awarded to our factory in the following year.
9. Expert Opinions (International)
Expert Opinion 1: Long-Term Impact of Equipment Precision

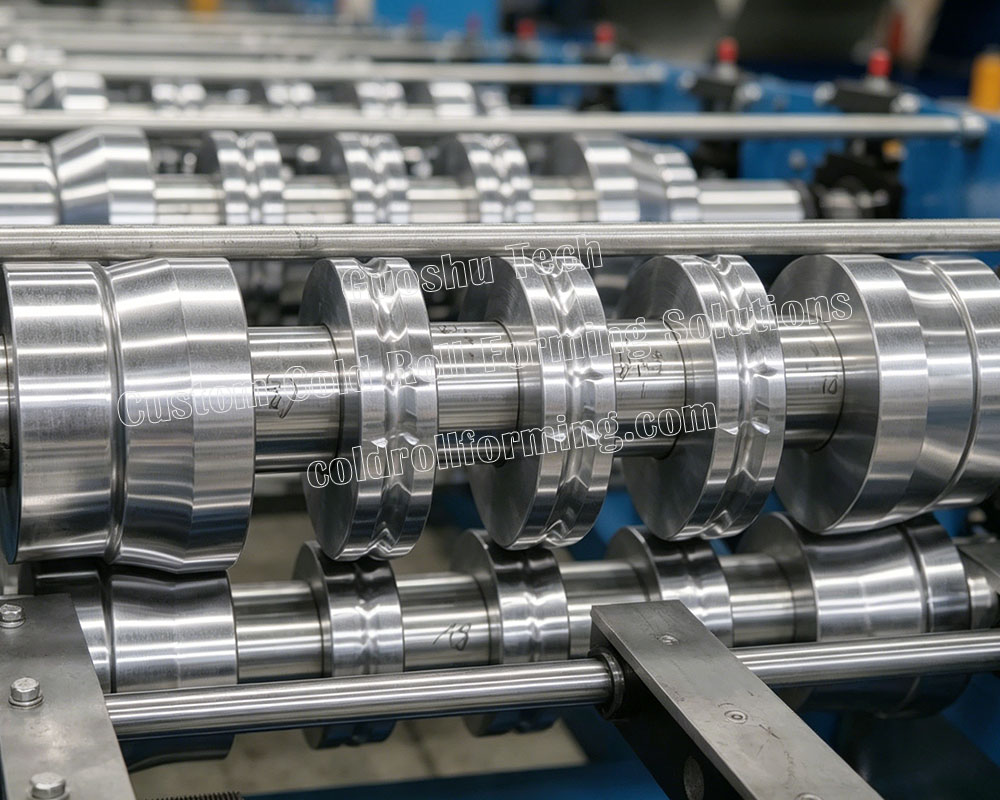

"Many buyers focus only on 'does it work' during machine acceptance, not 'how long will it last.' Our tracking data shows that roller bearing clearances are similar on new machines, but after 500 operating hours, high-precision bearings wear only one-third as much as standard bearings. This directly shows up in panel dimensional consistency. My advice: ask suppliers for bearing brand and precision class – not just the price."
— David Evans, Technical Committee Member, UK Metal Roofing Contractors Federation
Expert Opinion 2: North American Market Requirements
"Customers in Canada and the northern US often overlook one factor – a machine's cold-start capability. Our job sites frequently see winter temperatures below -20°C. Standard hydraulic oil thickens, and motor inrush current spikes. We've returned 3 machines in the past two years simply because suppliers didn't do low-temperature adaptation. Low-temperature upgrades cost little but eliminate most winter failures."
— Jean-François Larose, Technical Director, Quebec-based Metal Roofing Company, Canada
Expert Opinion 3: The Real Cost of After-Sales Service
"We calculated that one day of machine downtime costs roughly 1% of the equipment's value. For a mid-sized fabrication plant, unexpected shutdowns cause huge hidden losses. So when we purchase, 24-hour response and local spare parts stock are far more important than low unit price."
— Michael Chen, Purchasing Manager, Metal Building Materials Fabrication Plant, Sydney, Australia
