1. What Is a Step Tile Roll Forming Machine?

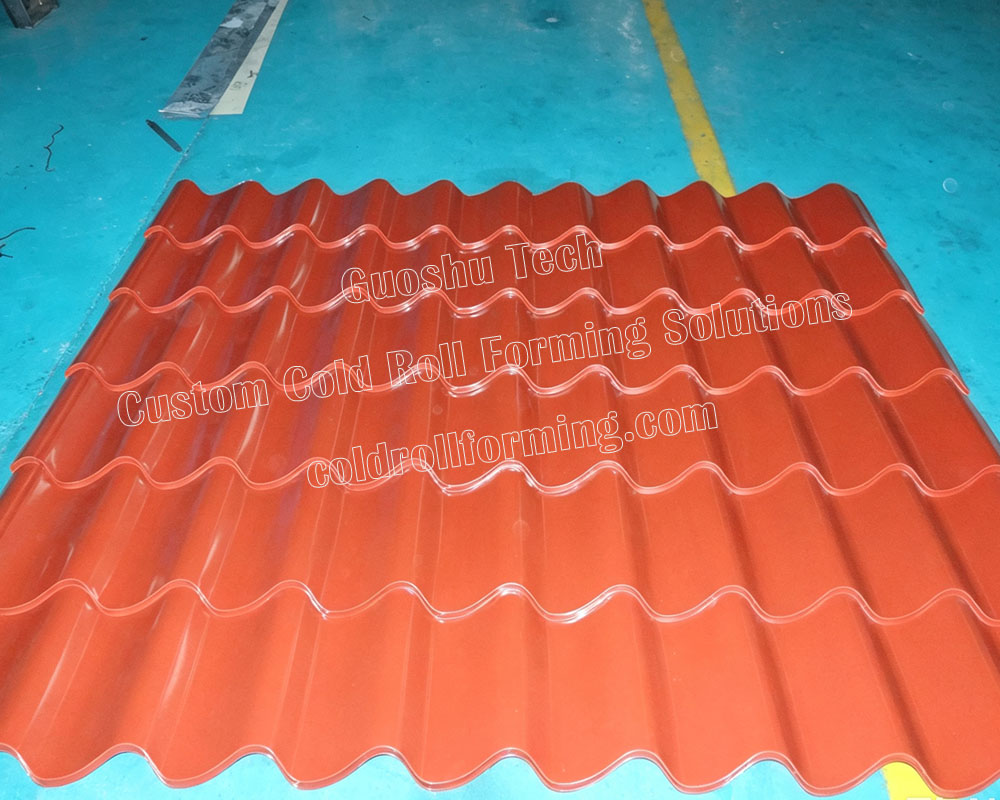

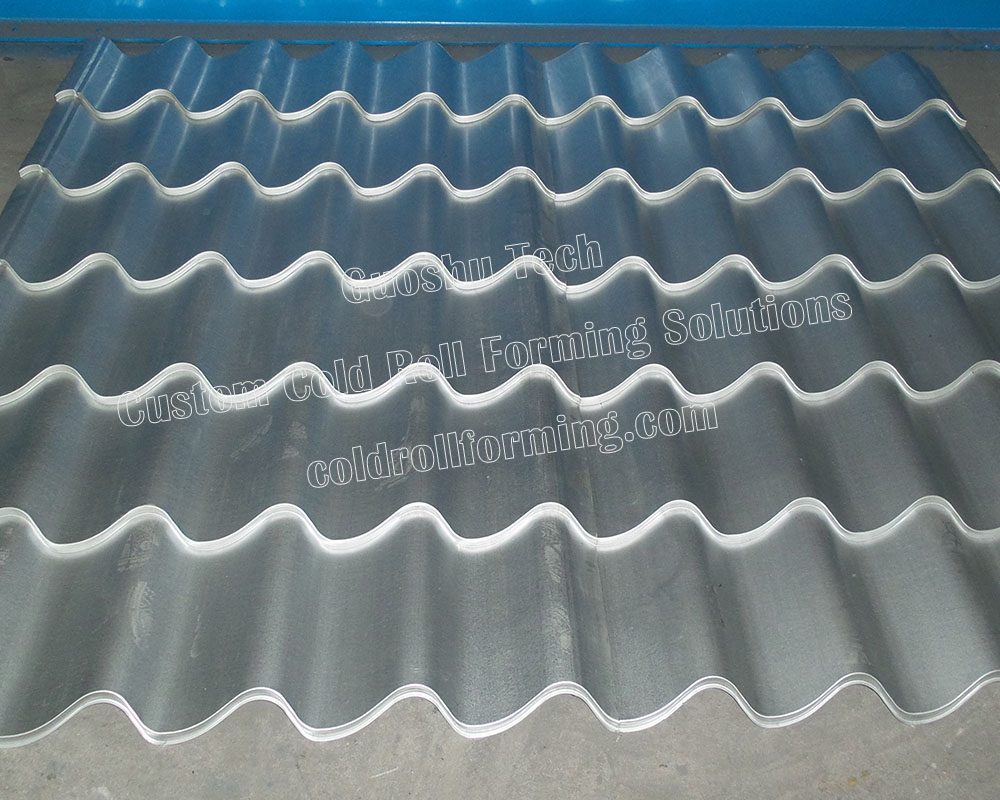

A step tile roll forming machine is specialized equipment that turns flat metal coils into finished step tiles. These are the distinctive roof tiles with a stepped or pyramid-like appearance, commonly seen on residential homes, commercial buildings, and industrial facilities.

Unlike traditional clay or concrete tiles, metal step tiles are lighter, stronger, and much faster to install. The machine works continuously, feeding metal strip through a series of rollers that gradually bend it into the desired profile. At the end of the line, a cutting system shears the tile to the exact length needed. The entire process is automated, requiring minimal human intervention once the machine is set up.

2. What the Machine Can Do

The primary job of a step tile roll forming machine is to transform raw coil stock into ready-to-install roofing tiles. But its capabilities go beyond simple forming.

Modern machines handle multiple tasks in one continuous operation:

• Uncoiling and straightening the metal
• Forming the step profile
• Punching holes for fasteners
• Cutting to precise length
• Stacking finished tiles for packing

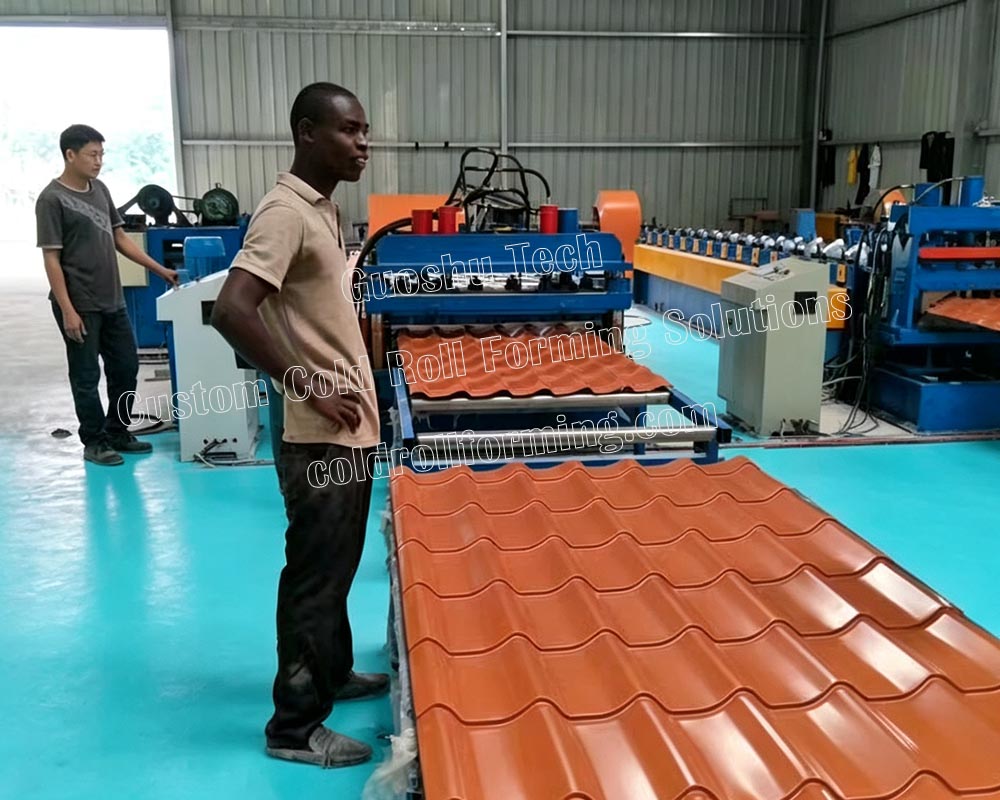

This end-to-end automation means a single operator can supervise production of thousands of square meters per day, something that would require a large team using older methods.

3. What Makes a Quality Machine

Not all step tile roll forming machines are built the same. The best ones share a few essential technical characteristics:

• Heavy-duty steel frame – keeps the machine stable during high-speed operation, preventing vibration that could affect profile accuracy.
• Precision-ground rollers – ensure every tile comes out identical to the last.
• Reliable PLC control system – lets operators change settings quickly and stores recipes for different tile designs.

• Accurate cutting system (encoder-controlled) – guarantees that every tile is cut to the specified length without waste.



Many manufacturers also offer servo-driven systems, which use less energy than traditional hydraulic machines and provide finer control over the forming process.

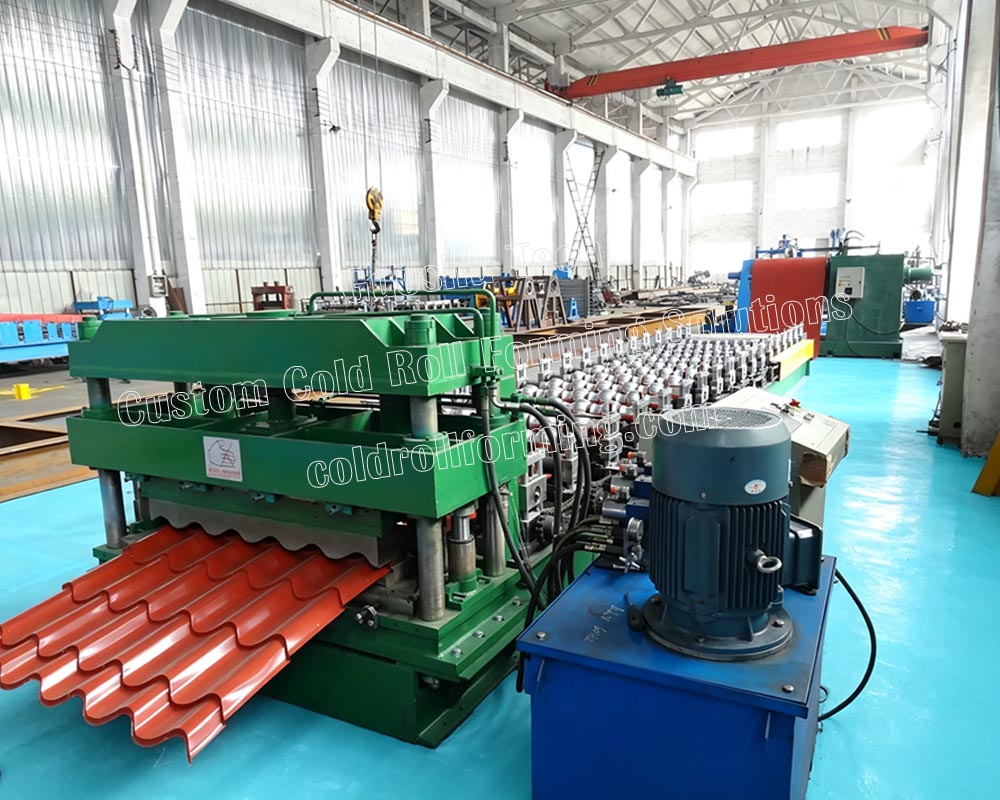

4. How the Forming Process Works

Making a step tile involves a straightforward sequence:

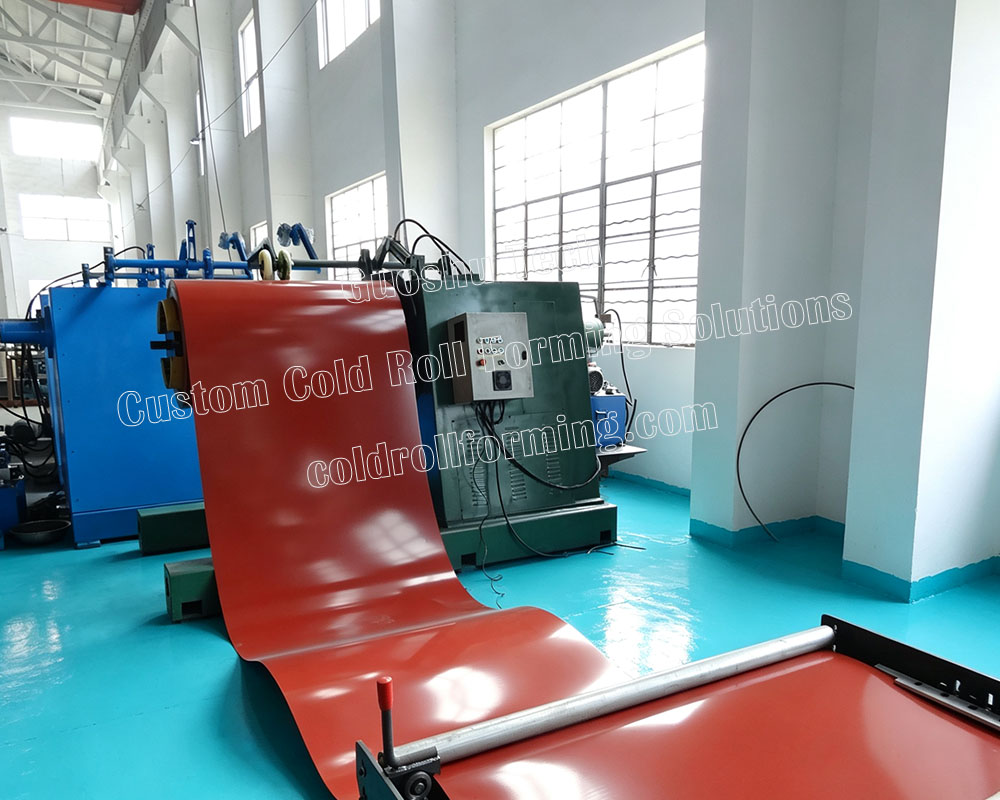

1. Loading – The metal coil is loaded onto a decoiler, which feeds the strip into the machine.
2. Straightening – The strip passes through a straightener to remove any curvature.

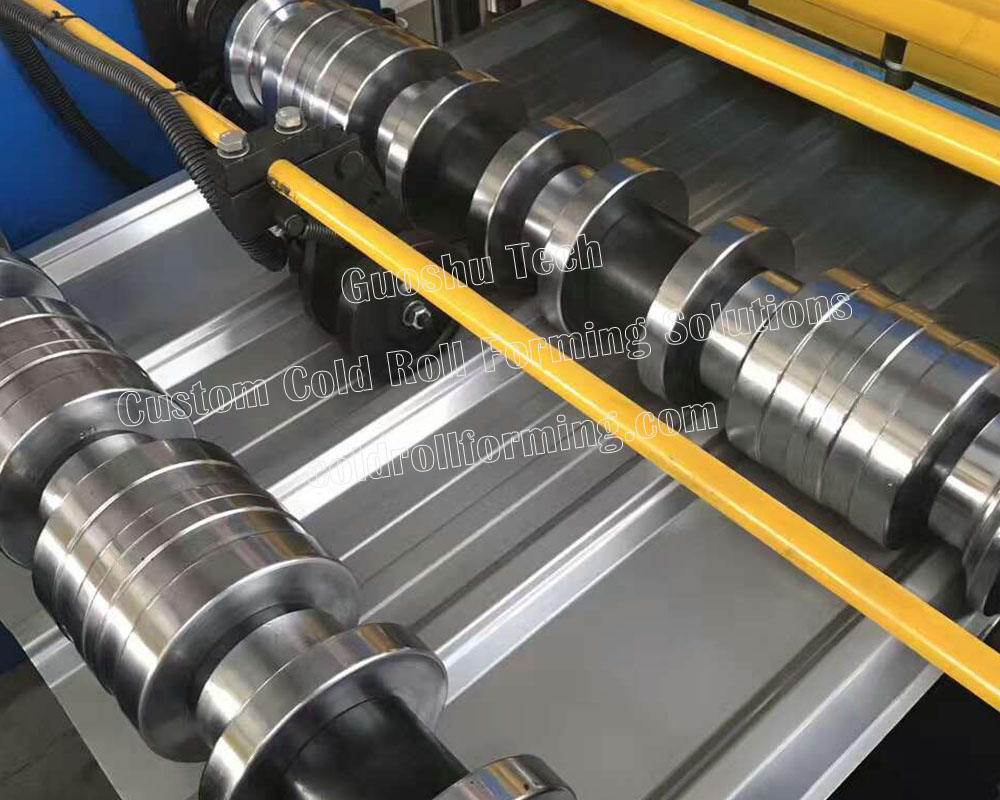

3. Roll forming – It enters the roll forming station, where a series of roller dies gradually bend the metal into the signature step shape.
4. Punching – If the tile requires mounting holes or drainage slots, a punching unit creates these at the appropriate stage.
5. Cutting – A flying cut-off shear cuts the continuous strip to the required length, all without stopping the line.
6. Stacking – Finished tiles move to a stacker, where they are automatically counted and piled for easy packing.



This continuous process runs at speeds that make manual production methods impractical for any serious operation.

5. Materials That Work Well

A good step tile roll forming machine is versatile enough to handle several types of metal:

• Galvanized steel – The most common choice, offering a strong balance of cost and durability.
• Galvalume steel – Provides better corrosion resistance, making it ideal for coastal or humid environments.
• Pre-painted steel – Comes in virtually any color, eliminating the need for post-production painting.
• Aluminum – Prized for its light weight and rust-proof properties, though it requires careful adjustment of roller settings.

The ability to switch between materials on the same machine gives manufacturers flexibility to serve different market segments without investing in multiple production lines.

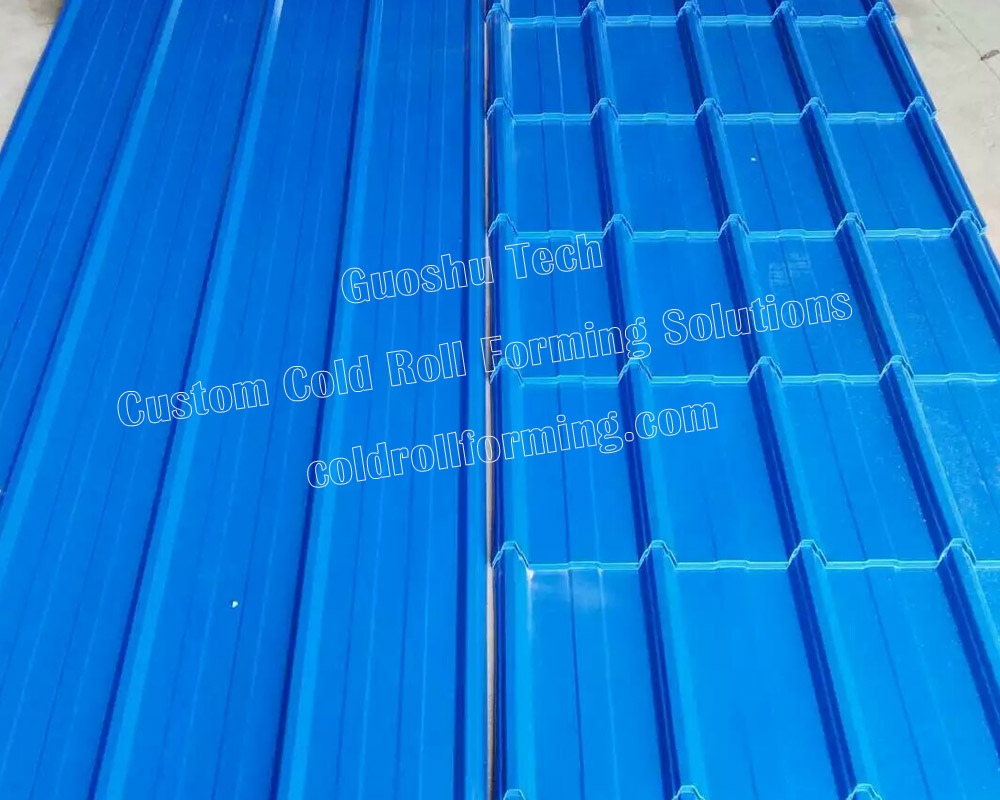

6. Customizing for Local Needs

One size does not fit all in the roofing industry. Step tile designs vary by region, influenced by local climate, building traditions, and architectural styles.

A good manufacturer understands this and offers customization. Buyers can specify:

• Step height
• Tile width
• Overall length
• Hole patterns
• Shape of interlocking features



Some manufacturers will replicate an existing tile design so a customer can produce an exact match for an established market. Customization also extends to production capacity — from slower, simpler machines for startups to high-speed, fully automated lines for large factories.

7. Integrating with a Full Production Line

A stand-alone roll forming machine is powerful, but its real value multiplies when integrated into a complete roofing production line.

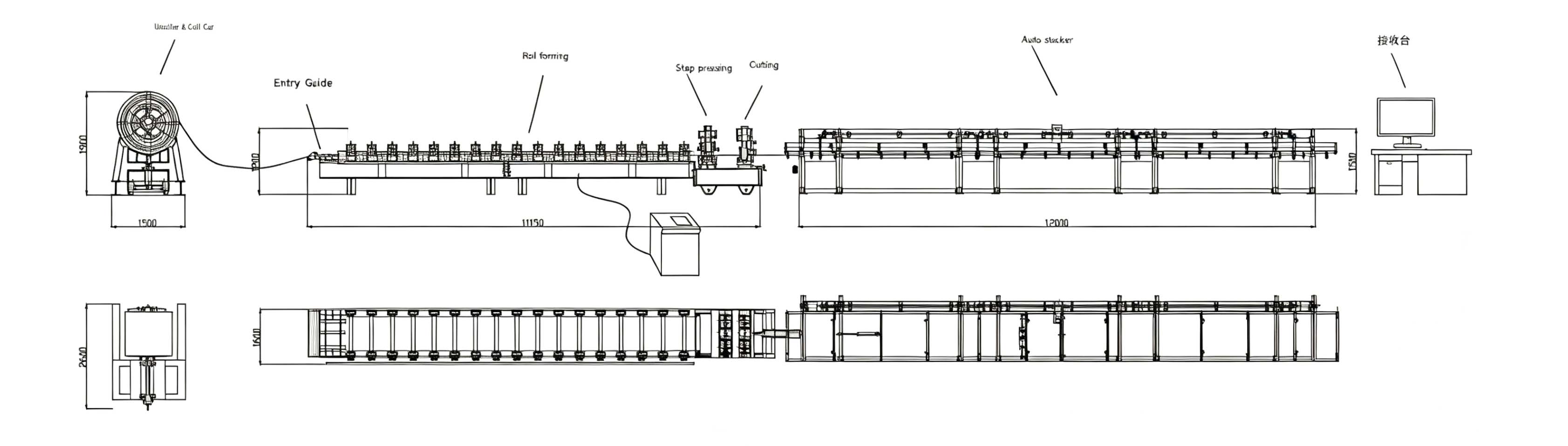

A typical integrated line includes:

• Decoiler and straightener at the front end
• Roll forming machine itself
• Punching and cutting units
• Automatic stacker and packing table at the end

Some lines also incorporate film applicators to protect the tile surface, or marking systems to add logos or batch numbers. Integration creates a seamless flow from raw coil to finished, packed product, reducing labor, eliminating bottlenecks, and improving overall reliability.

8. Key Advantages Worth Knowing

Why are so many roofing manufacturers switching to step tile roll forming machines? The advantages are compelling:

• Production speed – far exceeds what is possible with manual or semi-manual methods.
• Material waste – dramatically lower, often under 3% compared to 10%+ with traditional methods.
• Labor requirements – shrink because one trained operator can run an entire line.
• Quality – consistently high, with uniform thickness and precise dimensions that make installation faster and easier.
• Energy consumption – reasonable, especially with modern servo-driven designs.
• Durability – machines often run for a decade or more with proper maintenance.



9. Quality Assurance and Support After the Sale

Buying a step tile roll forming machine is a significant investment, and responsible manufacturers stand behind their equipment.

Quality assurance starts in the factory, where each machine undergoes testing with actual coil material before shipment. Reputable suppliers provide certifications such as CE or ISO, and offer documentation on material specifications for key components like rollers and bearings.

After-sales support matters just as much as the machine itself. Good manufacturers provide:

• Installation and commissioning assistance (on-site or via video guidance)
• Operator training until production runs smoothly
• Stock of wear parts (cutting blades, hydraulic seals) for quick replacement
• Remote diagnostics connecting directly to the machine's PLC



A typical warranty covers mechanical parts for twelve to twenty-four months, with lifetime technical consultation available afterward.

10. Final Thoughts

For any business looking to produce metal step tiles efficiently and reliably, choosing the right step tile roll forming machine manufacturer is one of the most important decisions you will make.

The machine itself matters, but the expertise and support behind it matter equally. A good manufacturer will help you select the right configuration, customize it for your market, integrate it into your production flow, and keep it running year after year.

Whether you are a small roofing contractor looking to bring production in-house or a large manufacturer expanding capacity, step tile roll forming technology offers a proven path to better quality, lower costs, and faster delivery.
