Why Some Profiles Can Share One Roll Forming Machine While Others Cannot: A Guide to Multi-Profile Production

Read Time: 6–8 minutes

When planning a cold roll forming production line, one of the most frequent questions manufacturers ask is: “I need to produce multiple models of profiles — can I use a single roll forming machine for all of them?” The answer is not a simple yes or no. Whether multiple profiles can share one machine depends on profile geometry, dimensional range, changeover mechanism design, and production volume requirements.

Understanding this distinction is crucial for optimizing equipment investment, workshop space, and long-term operational costs. This article breaks down the technical principles that determine machine compatibility and explains when a shared multi-profile roll forming machine makes sense — and when it doesn’t.

The Core Principle: What Determines Roll Forming Machine Compatibility?

A cold roll forming machine consists of a series of roller stations arranged in sequence, each progressively forming the metal strip into the target cross-section. The fundamental question is whether a single roller configuration can accommodate multiple profiles — or whether rollers must be swapped or adjusted.

Three key factors govern compatibility:

1. Profile Cross-Section Geometry

If two profiles share identical cross-sectional contours but differ only in width or height, they can often be produced on the same machine with adjustable roller spacing. However, if the cross-section shape itself differs — for example, a C-channel versus a Z-purlin, or a trapezoidal roof panel versus a corrugated sheet — the roller profiles must change.

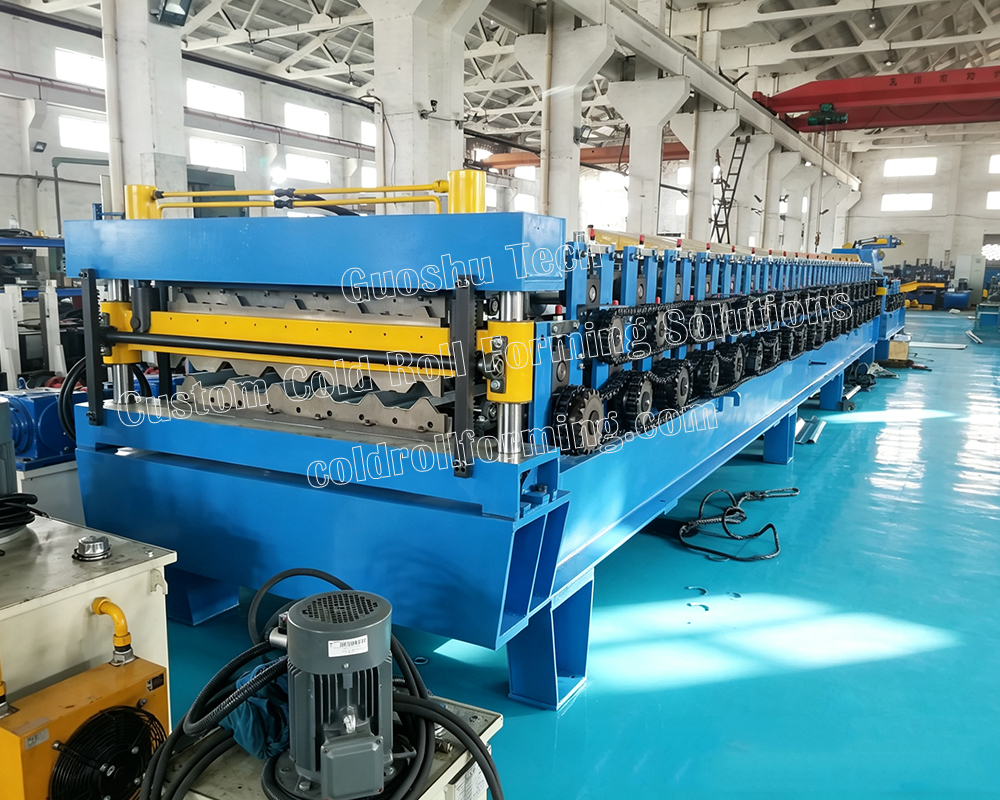

Some machines integrate multiple profile capabilities by design. A double-layer roll forming machine stacks two complete forming lines vertically in one frame, with separate roller sets for each profile on upper and lower layers. The operator switches production by simply changing the working layer, enabling two different profiles from one compact footprint. This configuration is widely used for roofing panel manufacturers who need to produce both trapezoidal and corrugated profiles without occupying two separate production lines.

2. Dimensional Adjustment Range

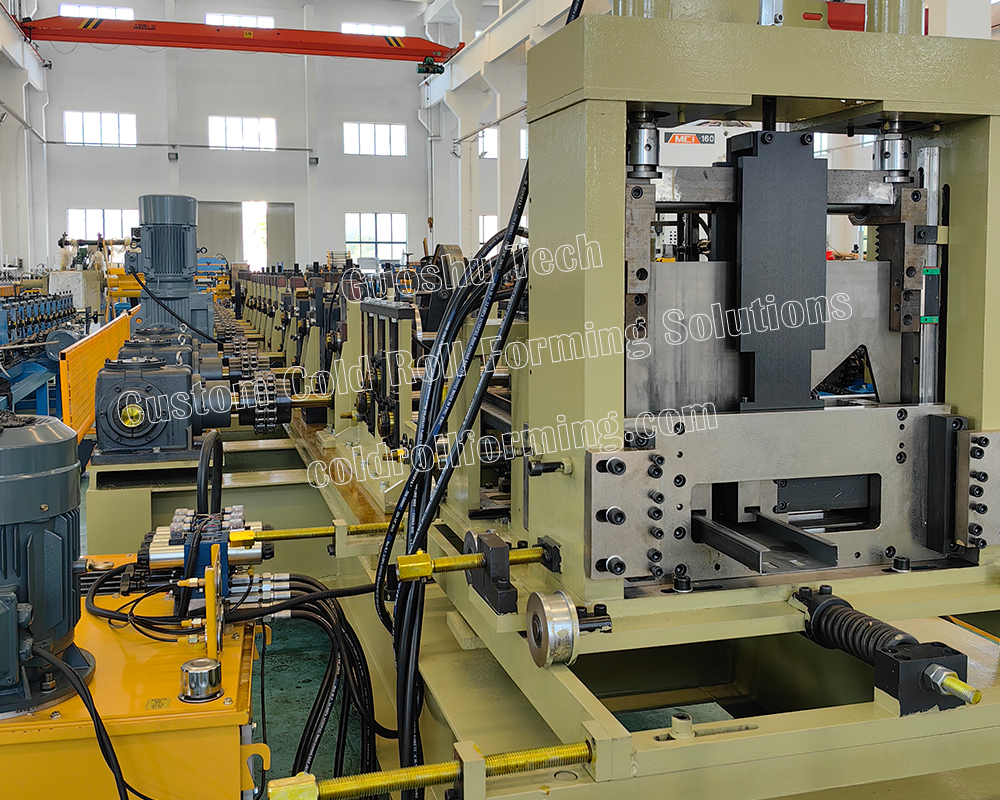

Even when the cross-section shape is compatible, dimensional limits apply. For C and Z purlins, stepless adjustment systems allow continuous width and height changes within a defined range — for instance, web widths from 80mm to 300mm and flange heights from 30mm to 80mm, adjustable in 1mm increments.

This technology enables a single CZ purlin roll forming machine to produce standard profiles, non-standard custom sizes, and everything in between without roller changes.

However, if the required dimensions fall outside the machine’s designed adjustment range, a different roller module or separate machine becomes necessary. The adjustment mechanism itself — whether manual, semi-automatic, or fully automatic — also affects changeover time and labor requirements.

3. Changeover Mechanism Design

Modern roll forming lines employ several strategies for multi-profile production:

Interchangeable Cassette Systems
The roll forming mill uses a shared main frame and drive system, while the roller sets are built as independent cassette modules. To switch profiles, operators replace the entire cassette. Changeover typically takes 10–15 minutes, significantly reducing downtime compared to manual roller changes. This approach suits manufacturers with moderate production volumes and multiple profile types.

Double-Layer Configuration
As noted earlier, two complete roller sets are integrated vertically into one machine frame. Profile switching requires no roller changes — operators simply activate the desired layer. This design is ideal when workshop space is limited but multiple profiles are essential.

Stepless Adjustment Systems
For profiles within the same product family (e.g., C and Z purlins), servo-driven adjustment enables width and height changes in millimeters without roller replacement. Some advanced systems can switch between C and Z profiles automatically in 3–8 minutes.

When Can Multiple Profiles Share One Roll Forming Machine?

The following scenarios are well-suited for shared-machine production:

• Two different roof/wall panel profiles → Double-layer roll forming machine (instant layer switching)
• C and Z purlins of varying dimensions → Stepless adjustable CZ interchangeable machine (3–8 minutes changeover)
• Same cross-section, different widths → Adjustable-width roller system (5–15 minutes changeover)
• Moderate-volume, multi-profile production → Interchangeable cassette system (10–15 minutes per cassette swap)

When Separate Roll Forming Machines Are Necessary

Despite the flexibility of modern equipment, some situations call for dedicated production lines:

High-Volume Dedicated Production

If you run a single profile at high speeds for extended periods, a dedicated single-profile machine optimized for that specific shape will be more cost-effective than a multi-profile machine with unnecessary complexity. Interchangeable systems trade some production efficiency for flexibility — a worthwhile compromise for low-to-medium volumes, but less ideal for mass production of a single profile.

Incompatible Material Specifications

Profiles requiring significantly different material thicknesses, yield strengths, or coil widths may exceed the design limits of a shared roller set. For example, a machine designed for 0.3–0.8mm roofing sheets cannot safely process 3.0mm structural purlins.

Radically Different Cross-Sections

A single roller cassette or adjustable station can only accommodate a limited range of profile geometries. Profiles with fundamentally different bending sequences, flange angles, or forming passes require distinct roller designs that cannot share the same tooling.

Decision Framework: How to Choose the Right Roll Forming Machine Configuration

Use this framework to evaluate your specific requirements:

1. Map Your Product Portfolio – List all profiles you currently produce and those you plan to add within 3–5 years. Note dimensions, material specifications, and typical order quantities.
2. Identify Geometric Overlaps – Group profiles by cross-section similarity. Profiles within the same family are strong candidates for adjustable or shared tooling.
3. Calculate Production Volumes – For high-volume profiles, dedicated machines may offer better ROI.
4. Evaluate Space Constraints – Double-layer or interchangeable cassette systems sav significant workshop space.
5. Plan for Future Flexibility – Modular systems allow incremental investment by adding new cassettes later.

Conclusion: Flexibility Requires Intentional Design

The ability to produce multiple profiles on one cold roll forming machine is not an afterthought — it must be engineered into the equipment from the start. Whether through double-layer stacking, stepless dimensional adjustment, or interchangeable cassettes, each approach balances flexibility against cost, speed, and complexity.

For manufacturers seeking to optimize both investment and operational efficiency, the key is matching the machine's changeover mechanism to the specific mix of profiles, volumes, and space constraints in your facility. Consult with professional roll forming equipment suppliers for the best solution.
