In modern manufacturing, energy efficiency has become a key competitive advantage rather than just a basic operational indicator. For roll forming machine users and manufacturers, accurately calculating energy consumption helps reduce production costs, optimize production scheduling, and lower the carbon footprint of the entire production line. This article explains the complete calculation method, key influencing factors, and practical application formulas.

Why Calculate Energy Consumption for Roll Forming Machines?

Roll forming lines usually operate continuously for hours or even days. Their energy consumption is stable but often underestimated. Accurate energy calculation enables you to:

• Estimate electricity costs for each production batch
• Compare energy efficiency between different roll forming machine models
• Detect abnormal power consumption as an early warning of mechanical faults
• Meet sustainability reporting requirements for environmentally conscious customers

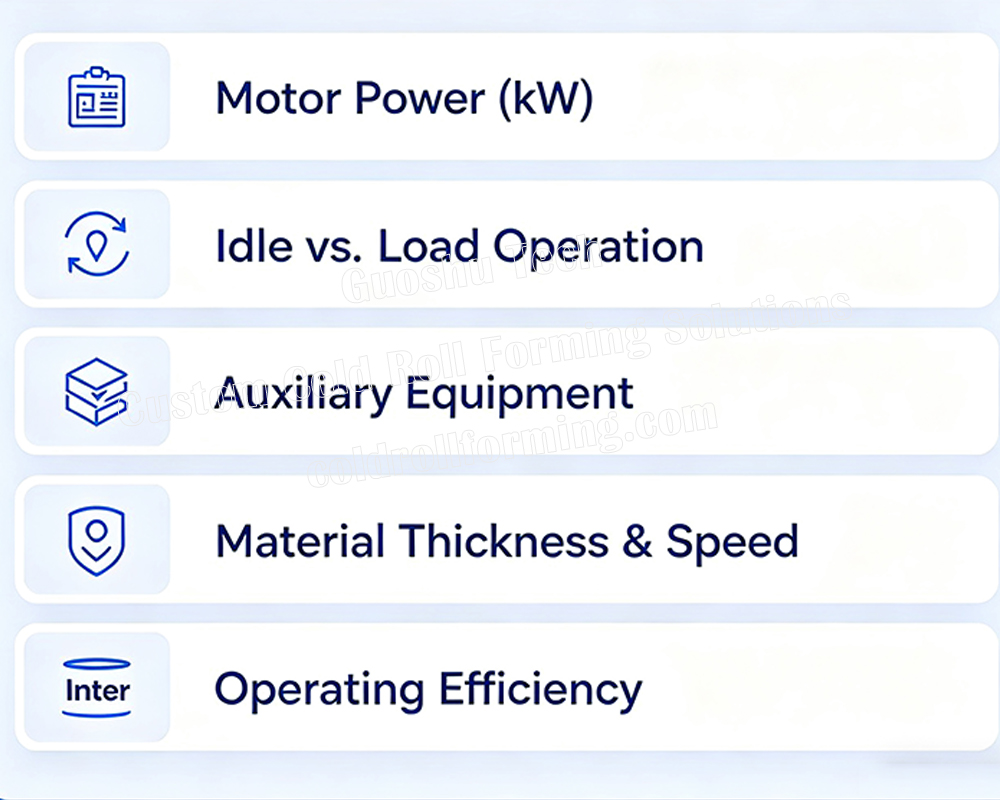

Key Factors Affecting Roll Forming Machine Energy Consumption

Accurate calculation must consider the following core variables:

• Motor Power (kW) – Main drive motor power; some lines include additional motors for feeding and discharging sections
• Idle vs. Load Operation – Energy consumption is significantly lower when running without material than under full load
• Auxiliary Equipment – Hydraulic punching, cutting machines, conveyors, and uncoilers increase total power consumption
• Running Speed & Material Thickness – Thicker and high-strength materials require higher torque and more power
• Operating Efficiency – Frequent starts and stops consume more energy than stable continuous operation

Basic Formula for Calculating Energy Consumption

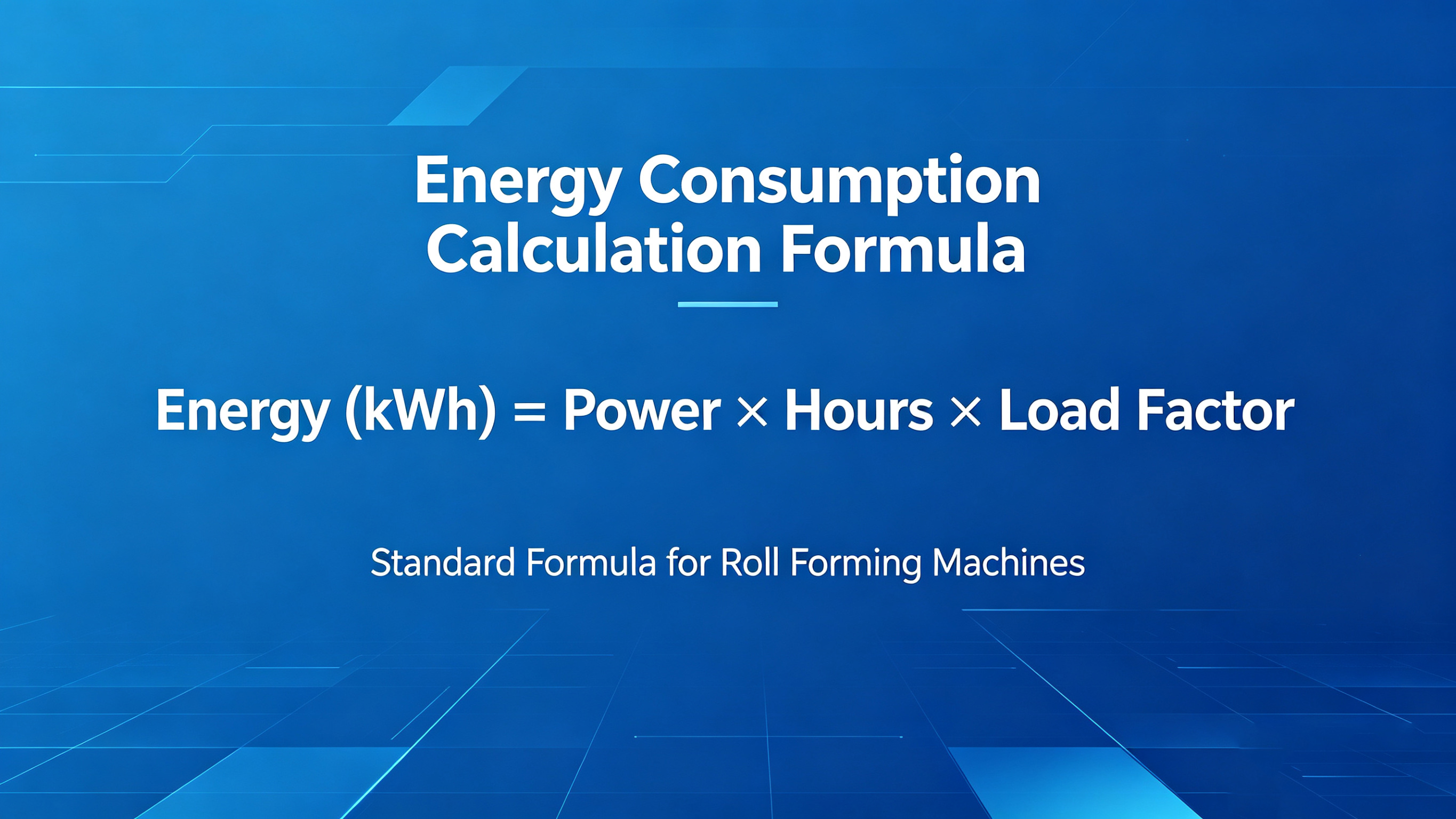

The standard electrical energy formula applies to most roll forming machines:

Where:

• Total Running Load Power = Sum of rated power of main drive and auxiliary motors under actual working conditions
• Load Factor = Ratio of actual power consumption to rated power, usually between 0.6 and 0.85 for roll forming
• Operating Hours = Actual production time (excluding setup and downtime)

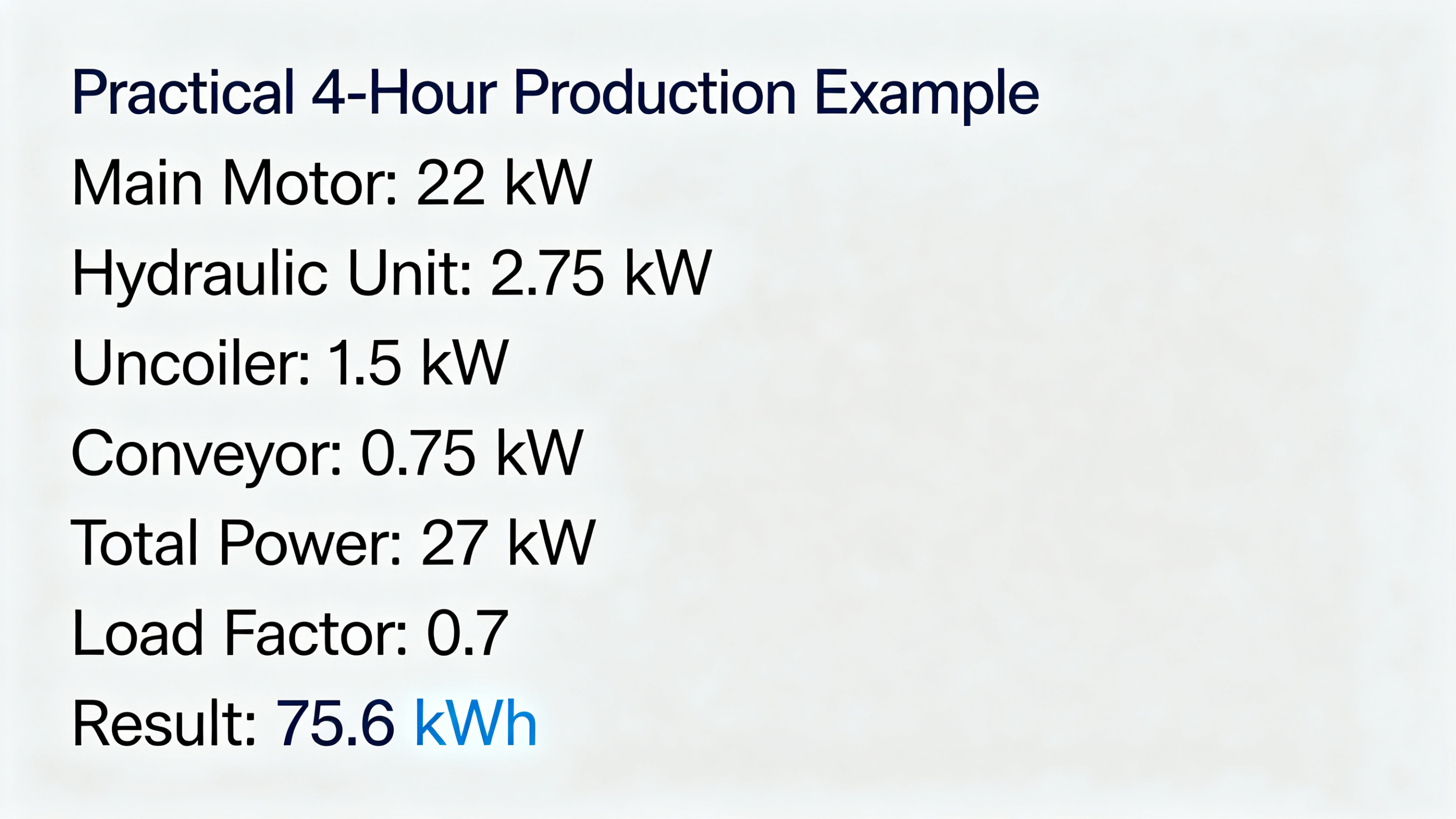

Practical Calculation Example

Using a Power Meter for Accurate Measurement

Formulas provide estimates, while a three-phase power meter can record real data. Measure under three working conditions:

• Idle state (machine running, no material)
• Normal production (standard speed and material)
• Heavy load (maximum thickness and speed)

You can then calculate average energy consumption per meter of finished product.

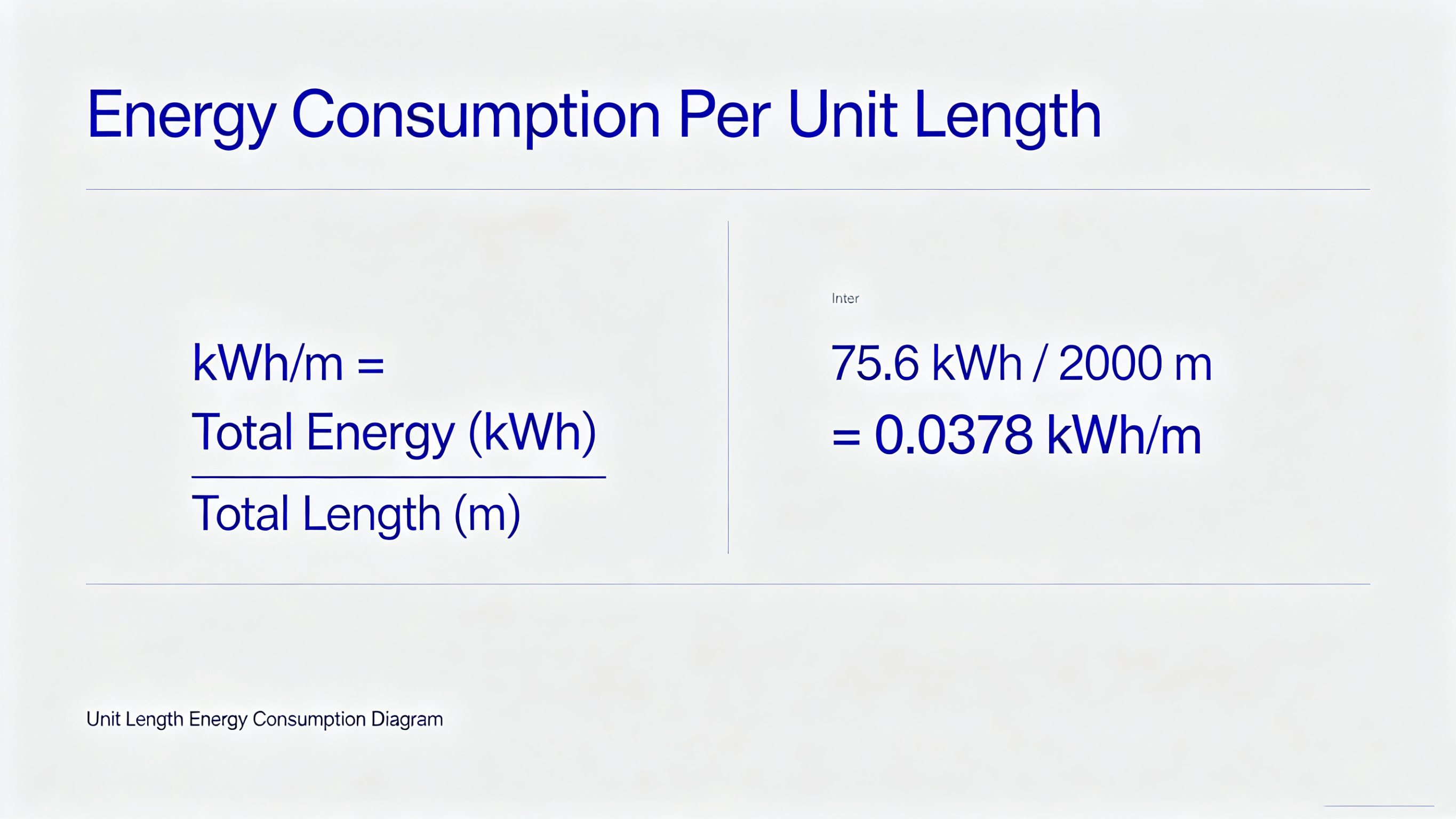

Energy Consumption Per Unit Length (Ideal for Quoting)

For quotation and production comparison:

Example: 2,000 meters produced in 4 hours → 75.6 kWh / 2000 m = 0.0378 kWh/m

Multiply by local electricity price to get energy cost per meter.

Common Mistakes to Avoid

• Only calculating main motor power and ignoring auxiliary equipment (which accounts for 20–30% of total consumption)
• Neglecting the load factor (a 22 kW motor rarely runs at full load continuously)
• Including standby, warm-up, and tool change time in production energy statistics

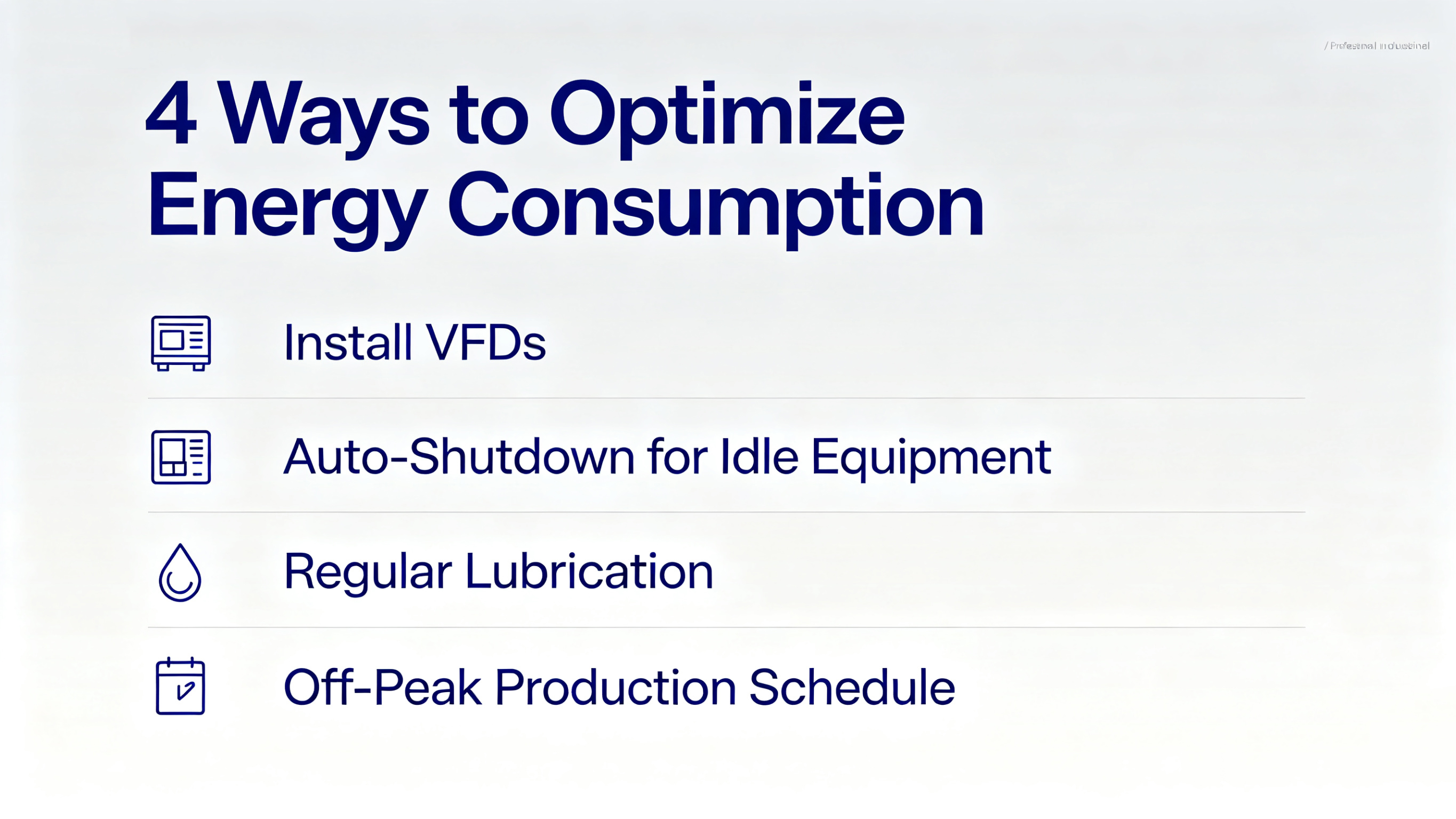

How to Optimize Energy Consumption of Roll Forming Machines

• Install variable frequency drives (VFDs) to match motor speed with actual line requirements
• Add automatic shutdown logic for idle conveyors and uncoilers
• Maintain regular lubrication to reduce friction and torque loss
• Arrange high-load production during off-peak electricity periods

Conclusion

Calculating the energy consumption of roll forming machines should be part of routine production management. Whether using the basic formula or a professional power meter, accurate data helps control costs, improve quotation accuracy, and enhance the environmental competitiveness of your production line. By optimizing energy consumption, you can achieve both environmental benefits and significant cost savings.
