What is a Downspout Roll Forming Machine & How Does It Work?

Downspout Roll Forming Machine (also known as downspout cold roll former) is a high-end continuous roll forming system that processes metal coils (galvanized steel, pre-painted steel, aluminum, stainless steel, etc.) through uncoiling, leveling, multi-pass progressive roll forming, closing, and precision cutting — automatically producing round or rectangular downspouts. Compared to traditional manual bending or stamping, roll forming offers continuous high efficiency, excellent dimensional accuracy, no material property loss, and mass production capability.

Complete working process (6 core steps):

• ① Coil Loading & Uncoiling: Manual/hydraulic uncoiler (capacity ≤3T, inner dia. φ508mm, outer dia. ≤1200mm) with anti-deviation device.
• ② Guiding & Leveling: Multi-roller leveler removes residual stress and warpage; ensures flatness ≤0.5mm/m.
• ③ Multi-Station Roll Forming: Coil passes through precision rollers (26 passes for round tube / 22 passes for rectangular), progressive cold forming, clean and burr-free profile.
• ④ Tube Closing: High-frequency welding for round tubes; lock-seaming for rectangular/coated tubes — guarantees tight sealing.
• ⑤ Precision Cut-to-Length: PLC-controlled flying saw (round) or hydraulic shear (rectangular), cutting accuracy ±0.5mm, smooth edge.
• ⑥ Finished Part Output: Automatic discharge, optional stacking & palletizing system for unattended continuous production.

Round vs. Rectangular Downspout: Key Process Differences

Round and rectangular downspouts are two mainstream building drainage profiles. They differ significantly in forming passes, closing methods, and application scenarios. Guosu downspout roll forming machines support one-touch process changeover — efficient production of both shapes without replacing core tooling.

Welding vs. Lock-Seaming: A Comparative Overview of Tube Closing Methods

The closing quality of downspouts directly determines the drainage system's sealing performance and service life. Guosu configures the closing process based on material type and customer needs.

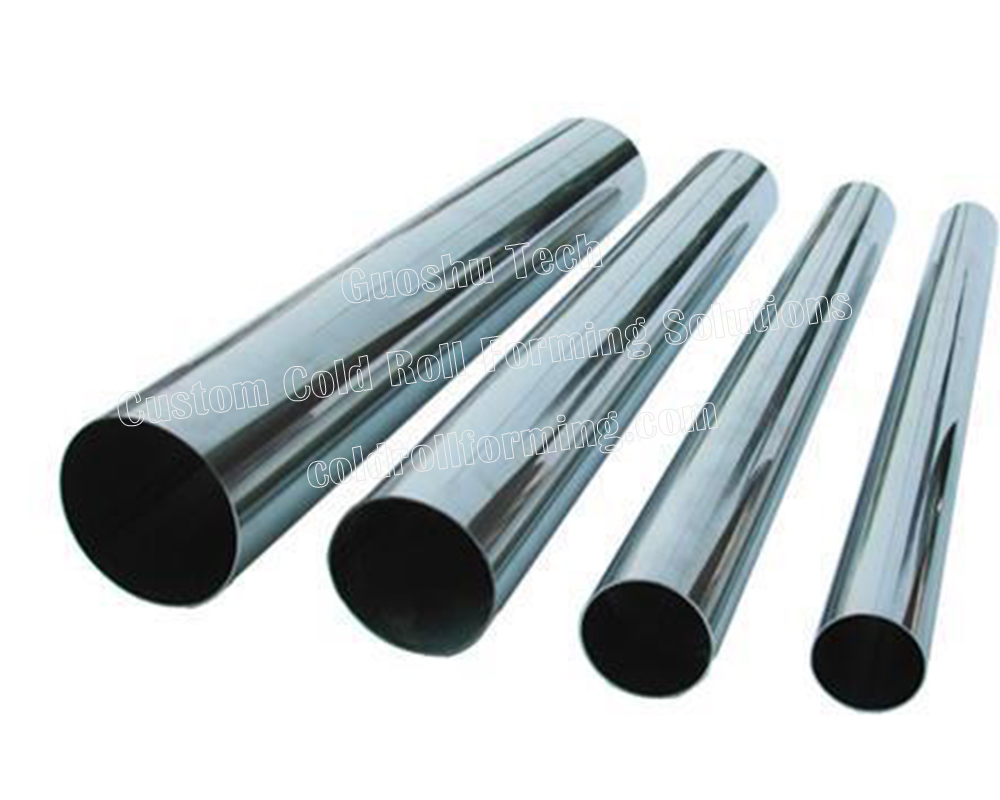

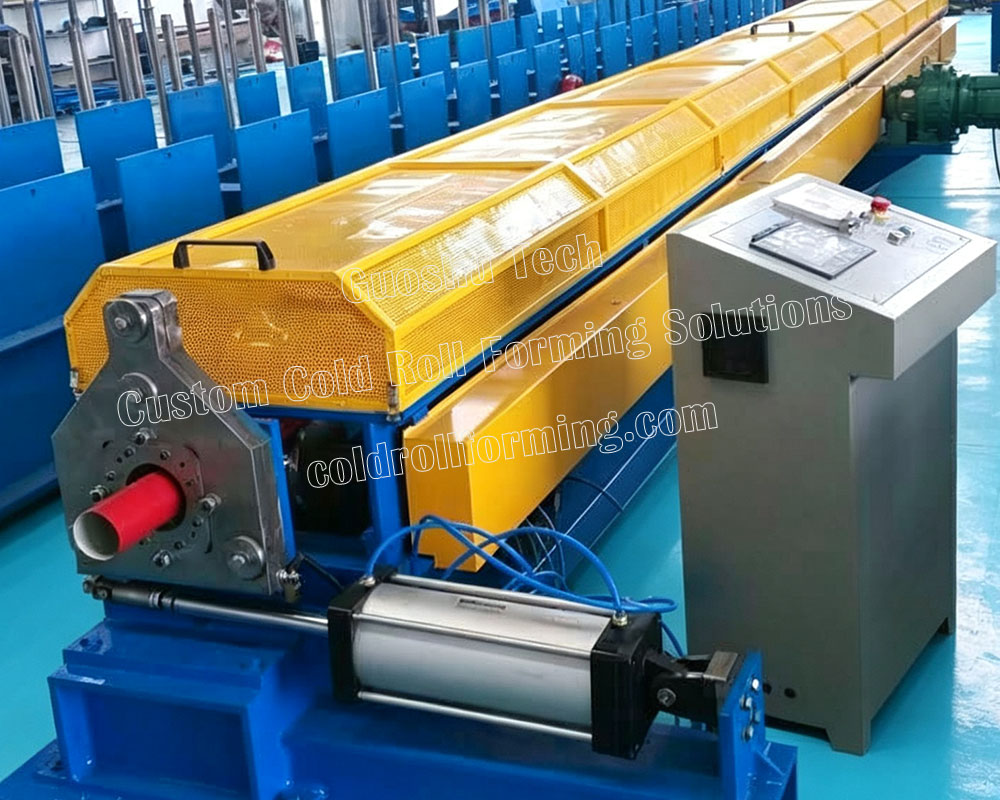

High-Frequency Welding for Round Downspouts

High-frequency welding is the core closing method for round downspouts, a filler-free process using skin effect and proximity effect to instantly heat the strip edges to 1300–1500℃, then forming a metallurgical bond under squeeze rolls — creating a seamless weld. Guosu downspout formers are equipped with high-precision HF welding systems synchronized with forming speed (0-12m/min), allowing precise control of temperature and pressure to ensure smooth, strong welds without defects while minimizing thermal distortion and maintaining roundness accuracy. Ideal for uncoated metal tubes (galvanized, stainless) — excellent sealing strength and large-diameter capability.

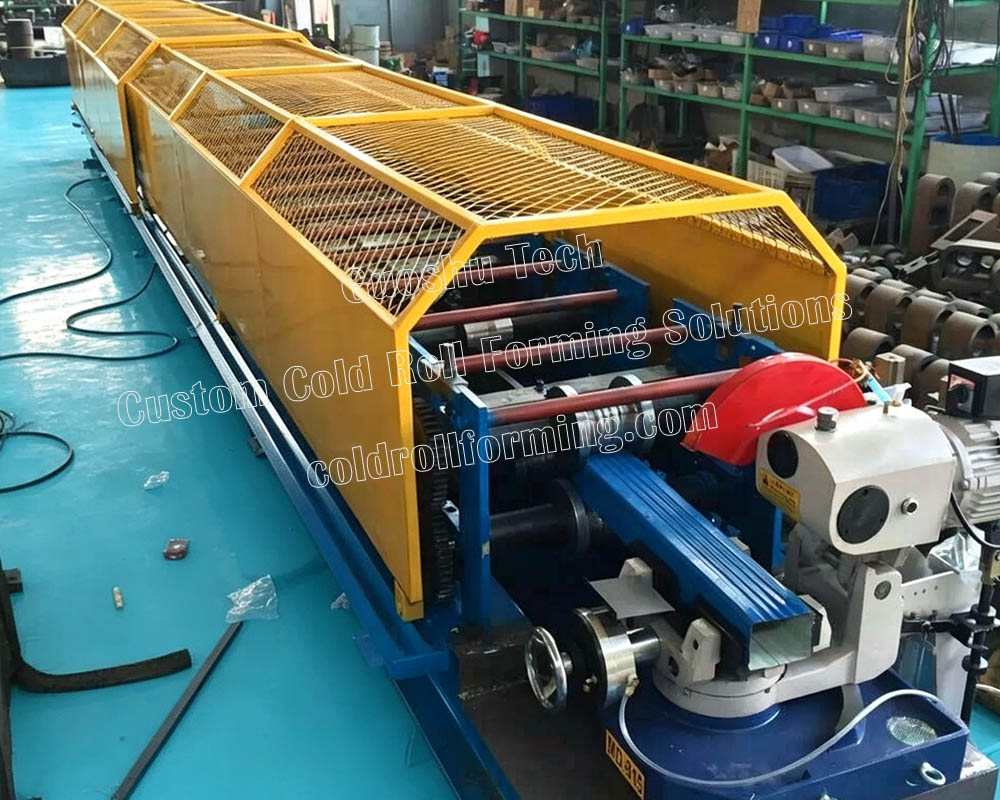

Lock-Seaming for Rectangular & Coated Tubes

Lock-seaming (folded seam clinching) is the dedicated closing method for rectangular downspouts and coated tubes. It is a cold mechanical joining process — no heat applied. Special tooling folds and interlocks the two layers of metal at the tube seam, then flattens to form a tight mechanical lock for perfect sealing. The main advantage: zero thermal impact, preserving the coating (pre-painted surfaces) without damage or corrosion risk. The lock-seam provides high strength, neat appearance, and no post-processing grinding required. Guosu has optimized lock-seaming parameters (depth, bite force) for 0.4-0.6mm (expandable to 1.0mm) coated materials, perfectly suited for rectangular and custom-shaped downspouts.
