High-End Custom Gutter Roll Forming Machine: The Ultimate Solution for Half-Round, K-Style & Fascia Profiles
📅 Apr 22, 2026 · Read Time: 7 min
In the global construction and roofing industry, a high-performance gutter roll forming machine is the core equipment for producing seamless, high-quality metal drainage systems. As a leading supplier of custom cold roll forming solutions, Changzhou Guosu Technology Co., Ltd. continuously innovates to deliver machinery that exceeds industry standards in precision, efficiency, and versatility.
This article provides an in-depth analysis of Half-Round, K-Style, and Fascia gutter profiles, the technical upgrades of our high-end equipment, professional adjustment techniques to reduce material waste, a comprehensive troubleshooting guide, complete maintenance best practices, and strategic insights to maximize your profitability.
1. Application Scenarios: Half-Round, K-Style & Fascia Gutter Machines
Different gutter profiles correspond to distinct architectural styles and functional needs. Our specialized machines are engineered to produce each profile with absolute precision. Explore the key applications below — arranged vertically for clear reading.

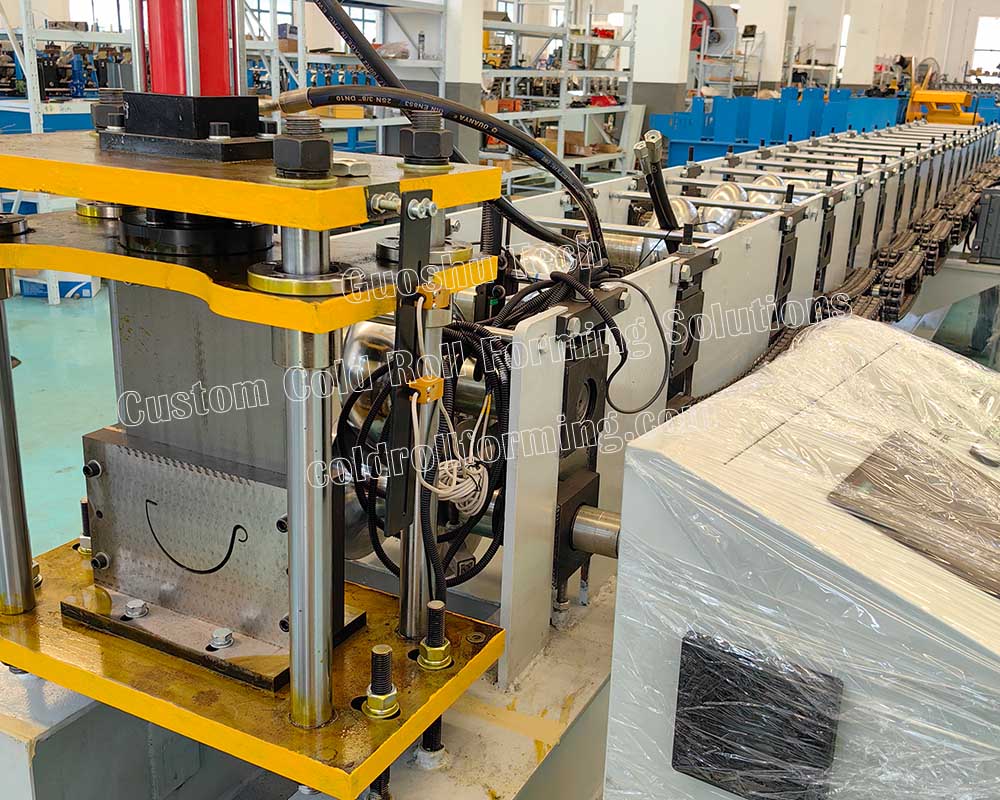

Half-Round Gutter Roll Forming Machine
Primary Applications:

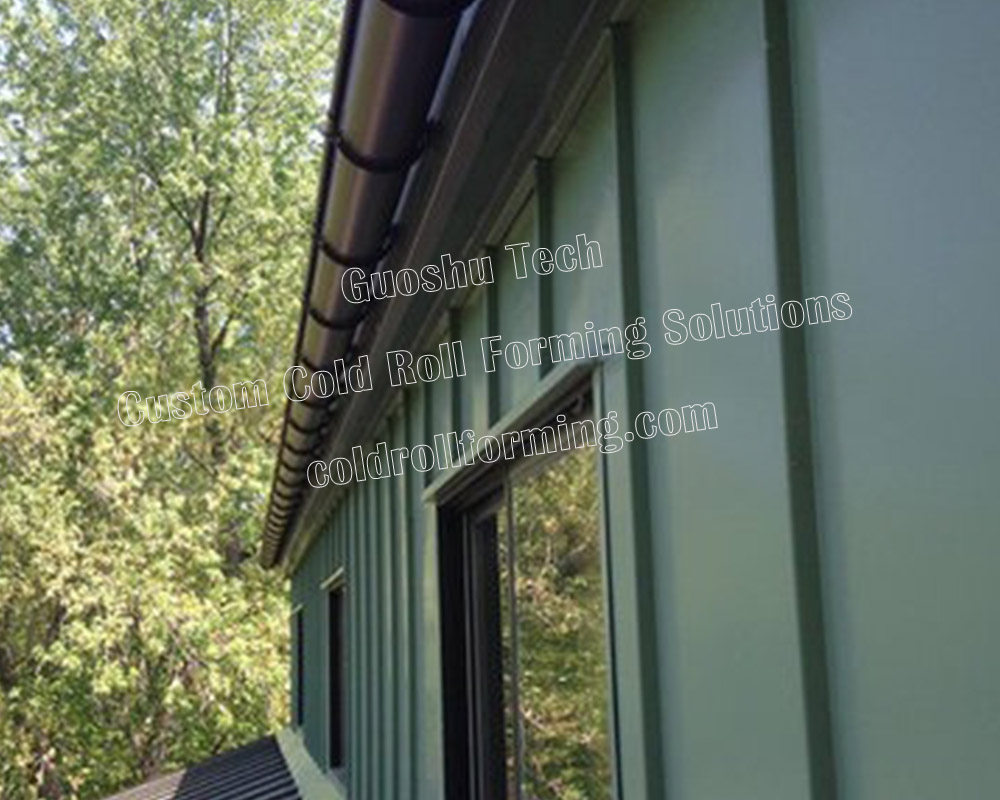

- Historical Buildings & High-End Mansions: Ideal for Colonial, Victorian architecture.
- Luxury Residential & Coastal Projects: Copper/stainless steel for timeless aesthetics.
- Specialized Structures: Wind farms, solar PV bases.
Key Advantages: Smooth water flow, reduced debris, classic elegance.

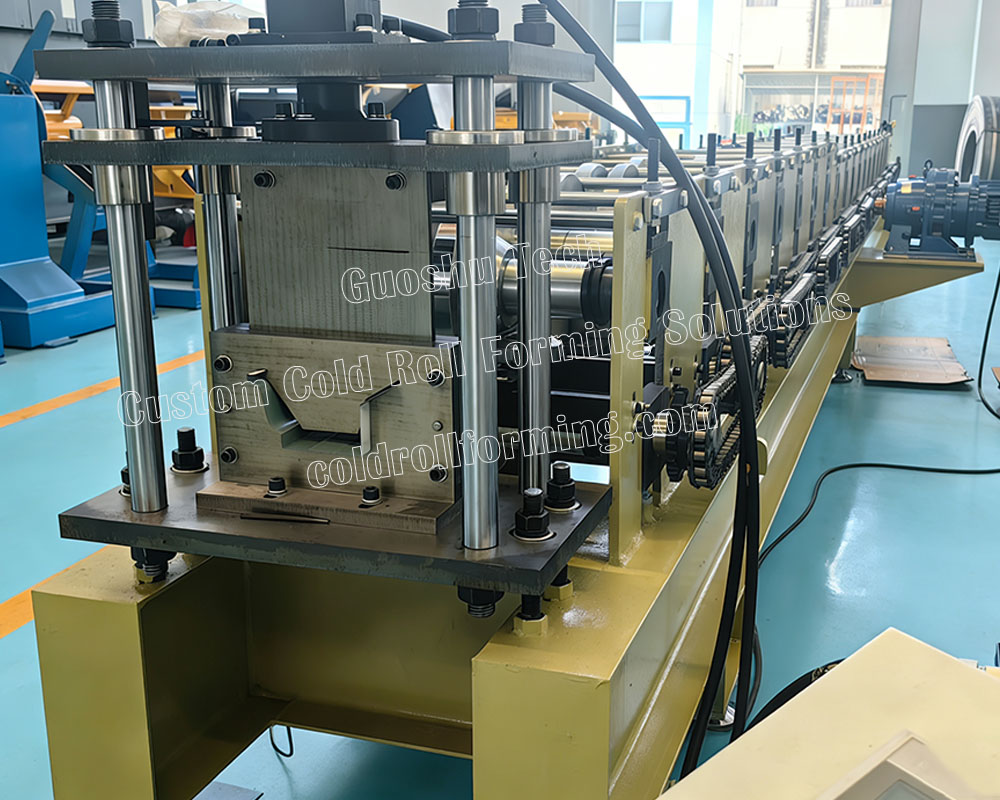

K-Style Gutter Roll Forming Machine
Primary Applications:
- Modern & Traditional Buildings: Standard choice for 90%+ residential/commercial in North America.
- High-Volume Drainage Needs: Large roofs and heavy rainfall regions.
- Mass Housing Developments: Suburban neighborhoods, warehouses, mid-rise buildings.
Key Advantages: High structural strength, large drainage capacity, cost-performance.

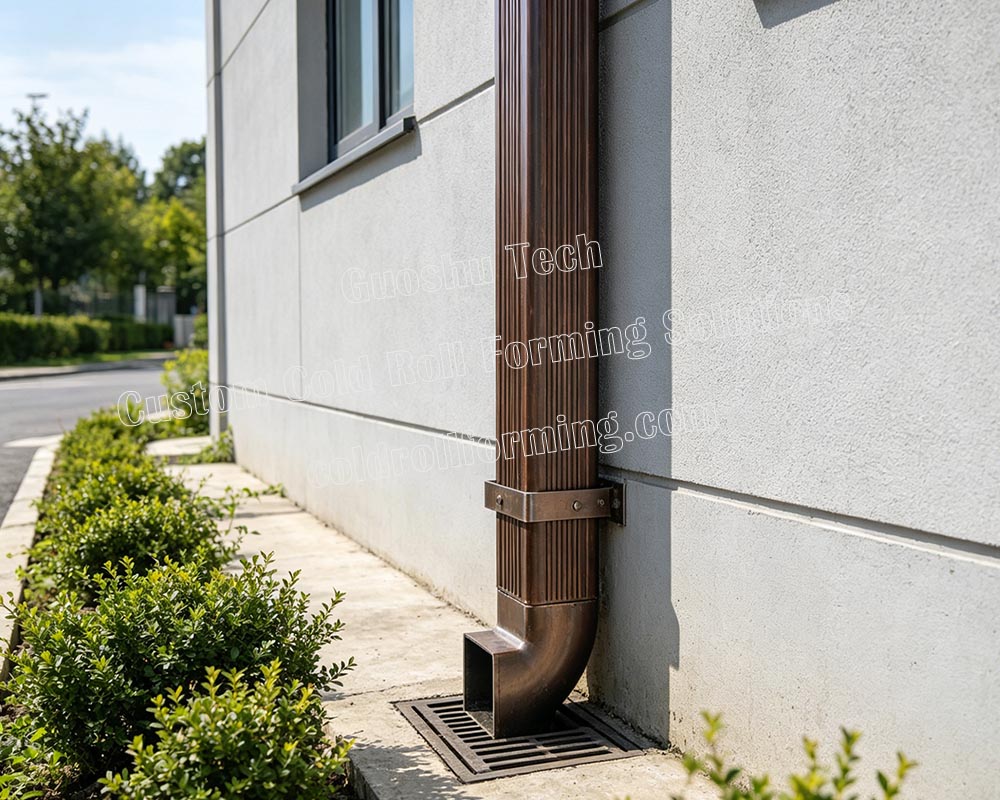

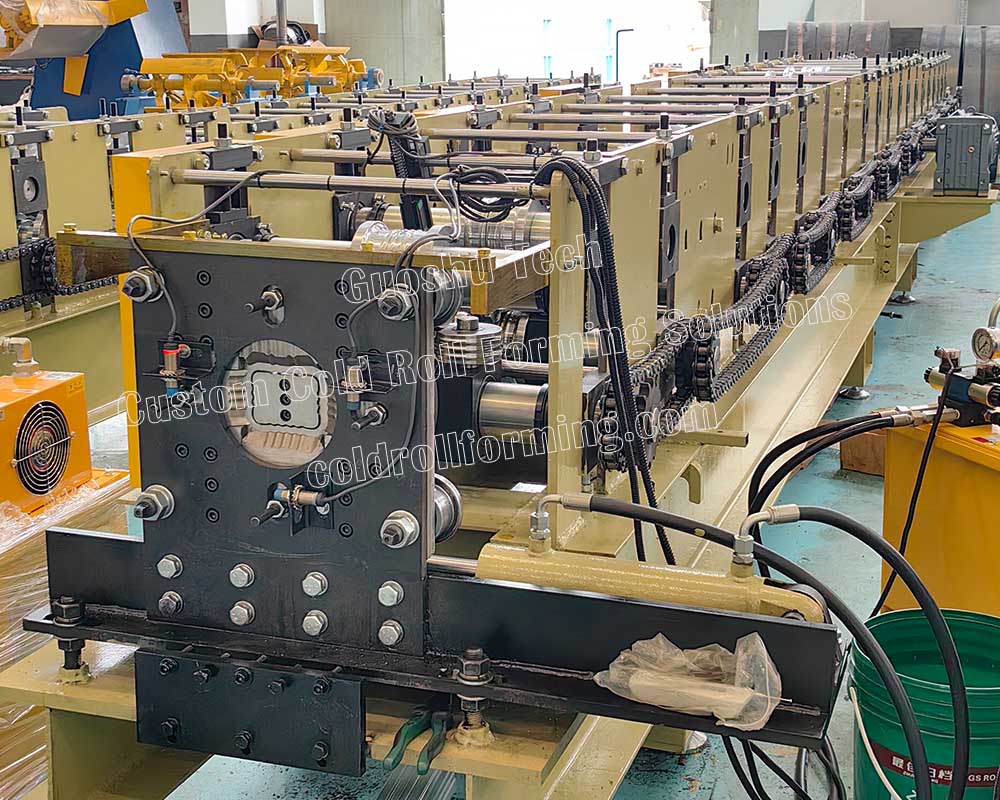

Fascia Gutter Roll Forming Machine
Primary Applications:
- Modern Minimalist Architecture: Integrates directly with building fascia.
- Renovation Projects: Upgrading older homes without additional brackets.
- Low-Slope Roofs: Concealed drainage solution where space limited.
Key Advantages: Space-saving, seamless integration, simple installation.
2. Technical Upgrade Highlights of Our Custom Gutter Roll Forming Machine
At Changzhou Guosu Technology, our gutter roll forming machine is the result of superior engineering. Below are the core advantages that set us apart from standard equipment:
- 🔧 Precision Roll Forming Stations
- Forged Alloy Rollers: Cr12Mov die steel, CNC grinding, HRC 58-62, wear resistance ↑40%.
- Mirror Hard Chrome Plating: 0.05mm+ plating, zero scratches on copper/stainless steel.
- Ultra-Stable Frame: 250mm H-beam steel, stress-relief annealing.
- ⚙️ Intelligent Control & Automation

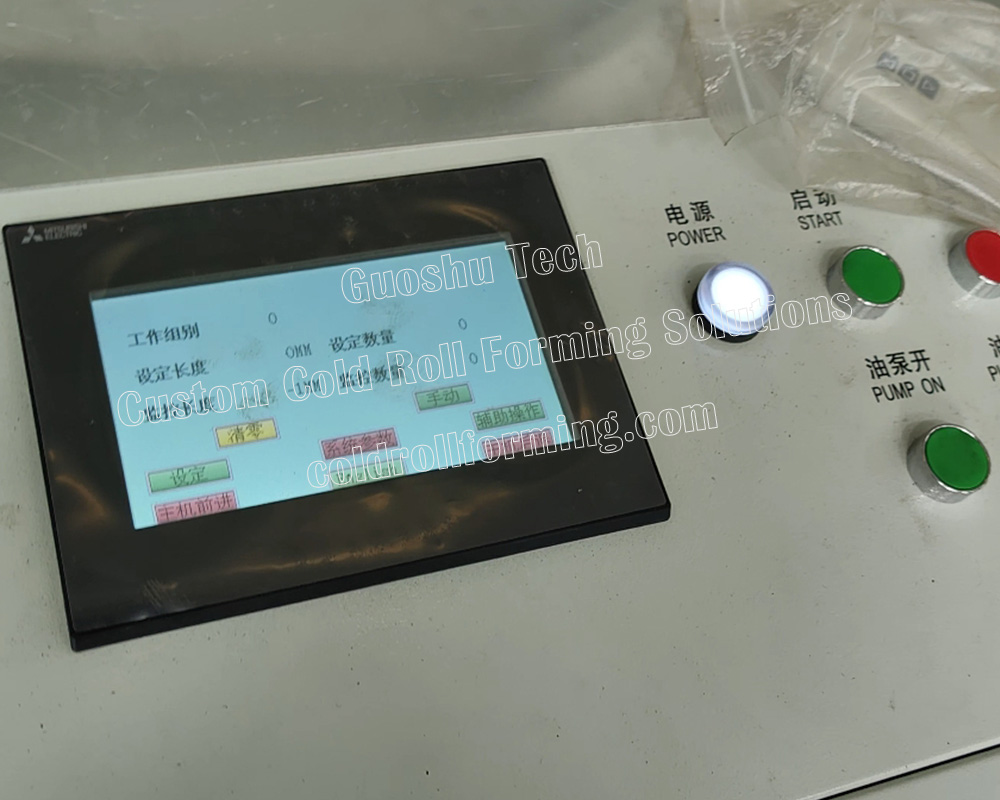

- Industrial PLC + Touchscreen: Store 100+ custom profiles, one-click recall.
- Full Servo Drive System: Length tolerance ≤ ±0.5mm.
- Auto-Adjustment System: Reduces manual setup time by 70%.
- 🔄 Material Versatility & Durability
- Multi-Material Processing: Galvanized steel, aluminum (0.4–1.2mm), PPGI, copper, SS 304/316.
- Quick Change Tooling: Switch between K-Style, Half-Round profiles in under 30 minutes.

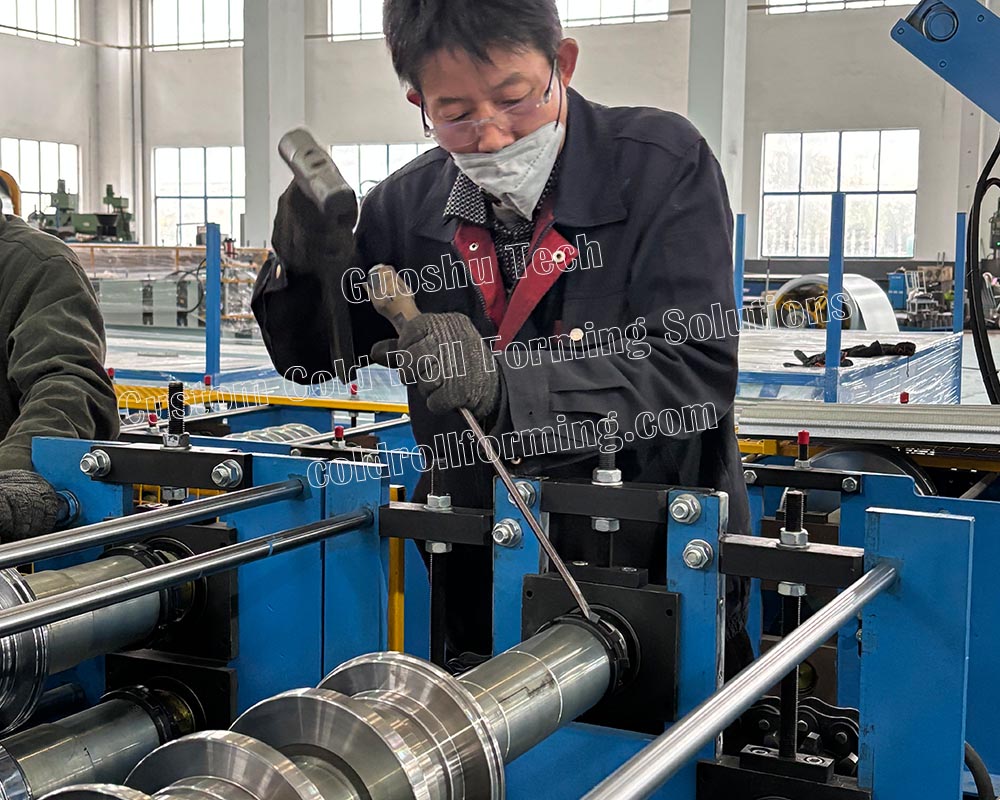

3. Professional Guide: How to Adjust Roller Gaps to Minimize Material Waste
Material waste directly impacts your profit margins. With a properly adjusted gutter roll forming machine, scrap rates can be kept below 1%. Follow our step-by-step method:
1
Preparation: Power off and lock out. Clean all roller surfaces thoroughly.
2
Set Initial Gap: Insert feeler gauge between rollers; adjust until light resistance. Parallelism ≤ ±0.1mm.
3
Material-Specific Fine-Tuning:
Aluminum (Soft): gap = thickness +0.03mm | Steel/Stainless: gap = thickness -0.02mm | PPGI: looser gap to protect paint.
4
Test Run: Run 3–5 meters. Well-tuned machine achieves
<1% scrap rate.
4. Gutter Roll Forming Machine Troubleshooting Table
Quickly diagnose and resolve common issues to minimize downtime:
| Problem | Possible Cause | Guosu Solution |
|---|
| Twisted / Deformed Profile | Roller misalignment / uneven gaps | Recalibrate station parallelism; reset roller gaps. |
| Edge Cracking / Tearing | Excessive pressure / insufficient stations | Activate "soft material mode" on PLC. |
| Surface Scratches / Paint Damage | Dirty or worn rollers | Clean/polish rollers; replace with polymer guides. |
| Inaccurate Cut Length | Encoder drift / feed roller slippage | Perform "one-key length calibration". |
| Abnormal Noise / Vibration | Worn bearings / loose bolts | Tighten frame bolts; replace bearings. |
5. Complete Maintenance Guide for Your Gutter Roll Forming Machine
"Three parts use, seven parts maintenance" is the key to extending your gutter roll forming machine's lifespan beyond 10 years. Guosu recommends:
✅ Daily Checks (End of Each Shift)

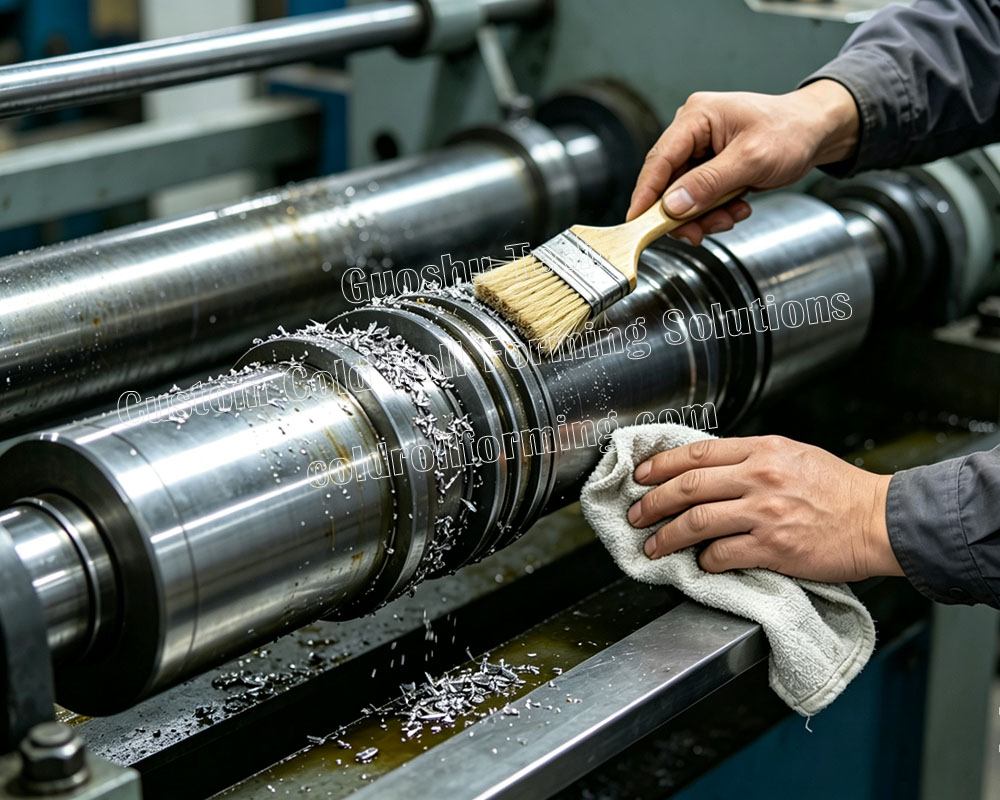

- Clean Debris: Remove metal shavings from rollers.
- Check Lubrication: Manually lubricate shear blades every 30 minutes.
- Electrical Inspection: Clean sensors, check cabinet fans.
🛢️ Lubrication Schedule
- Roller Bearings: #3 lithium grease monthly.
- Drive Chains/Gears: L-CKC-150 gear oil bi-weekly.
- Gearbox: Check oil level every 10 days; replace annually.
- Rust Prevention: Anti-rust oil if idle >3 days.
🔍 Periodic Component Inspection
- Roller Maintenance: Inspect monthly for pitting. Hard chrome rollers last 3+ years.
- Shear Blades: Resharpen when burrs appear.
- Bolts: Torque wrench quarterly.
📦 Long-Term Storage (Over 1 Month)
- Drain gearbox oil.
- Apply anti-rust grease.
- Cover control cabinet with waterproof tarp + desiccant.
6. Turning Your Gutter Roll Forming Machine into a Profit Engine
A high-quality gutter roll forming machine from Changzhou Guosu Technology is more than production equipment—it's a powerful profit center.
- Expand with Premium Materials: Process copper/stainless steel for luxury projects, charging 3–5 times standard rates.
- On-Site Production Model: Trailer-mounted mobile machine eliminates shipping costs and seam leakage.
- Low Operating Costs: Energy-efficient motors reduce power consumption by 25-30%, 1 operator cuts labor costs 60%.
7. Conclusion
Investing in a premium custom gutter roll forming machine from Changzhou Guosu Technology is a strategic decision that directly impacts your product quality, operational efficiency, and profitability. Whether your market demands Half-Round, K-Style, or Fascia profiles, Guosu delivers unmatched precision and reliability.
Contact Changzhou Guosu Technology today for a personalized consultation, a customized quotation, and our maintenance video tutorials. Let us help your gutter production business soar.
(Note: Maintenance intervals should be adjusted based on actual operating conditions and the machine-specific manual provided with your equipment.)
8. Frequently Asked Questions
❓ What is the typical ROI period for a high-end custom gutter roll forming machine?
For a contractor running 2-3 jobs per week, our customers typically achieve full ROI within 6 to 12 months. The combination of material cost savings (no pre-cut gutter sections), labor reduction, and the ability to charge premium pricing for seamless installations accelerates payback significantly.
❓ Can your machine produce both K-Style and Half-Round profiles on the same line?
Absolutely. Our custom gutter roll forming machine is designed with a quick-change tooling system. Switching between K-Style, Half-Round, and basic Fascia profiles takes less than 30 minutes, with stored PLC settings for each profile to eliminate guesswork.
❓ What materials are compatible, and what thickness range can you handle?
Our machines process galvanized steel (0.4–1.2mm), aluminum (0.4–1.2mm), PPGI/color-coated steel, copper, and stainless steel 304/316. For heavy-gauge commercial applications, we offer reinforced roller stations that accommodate up to 1.5mm steel.
❓ Do you provide on-site commissioning and operator training?
Yes. Every machine includes professional on-site commissioning by Guosu engineers, plus a full training program for your operators (maintenance, roller gap adjustment, troubleshooting). Remote video support is also available 24/7.
❓ What is the expected service life of a Guosu gutter roll forming machine?
With proper maintenance following our guide above, the core mechanical structure and frame exceed 15 years. Hard-chrome rollers last 3–5 years under daily production, and wear parts (bearings, chains, shear blades) are standard sizes available globally.
