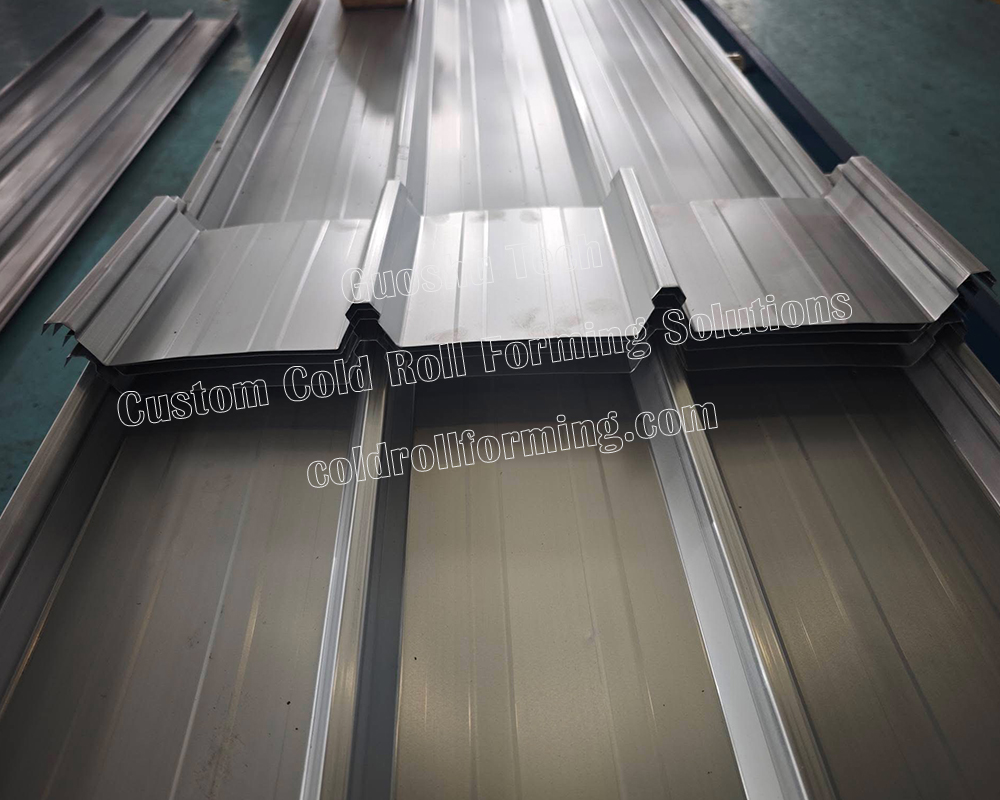

This roof and wall cladding roll forming machine is designed for continuous, high-stability industrial production of metal roof sheets, wall cladding panels, corrugated profiles and trapezoidal profiles. As a complete production line, it adopts a thick-plate welded frame, precision-machined roller system, standardized high-quality electrical components and servo-driven control system.

It ensures stable forming, high dimensional accuracy, low failure rate, low maintenance cost and long service life, making it suitable for long-term continuous production in manufacturing enterprises with high requirements on product quality and equipment reliability.

For customers needing a dedicated metal roofing machine, this solution also supports standing seam profiles and wall panel rollformer configurations. We provide custom roof and wall cladding roll forming machines with stable performance, high efficiency and long service life for global construction and steel structure customers.

• Inconsistent profile shape, poor flatness and large dimensional deviation after forming
• Excessive frame vibration during high-speed operation, resulting in unstable forming quality
• Rapid roller wear, poor surface finish, short service life and high replacement cost
• Low cutting accuracy, obvious burrs, unstable length and high material waste
• Unstable electrical system with frequent failures causing unplanned production downtime
• Difficult machine adjustment, complex operation and high dependence on skilled workers
• Poor compatibility with stainless steel, aluminum and color-coated sheets, easy surface scratching
• High daily maintenance workload and high long-term operating cost

Our quick change roll forming design significantly reduces downtime between different profile types.

• The main frame is welded with thick structural steel plates and processed by vibration stress relief or overall annealing to eliminate internal stress, ensuring no deformation during long-term high-speed operation.

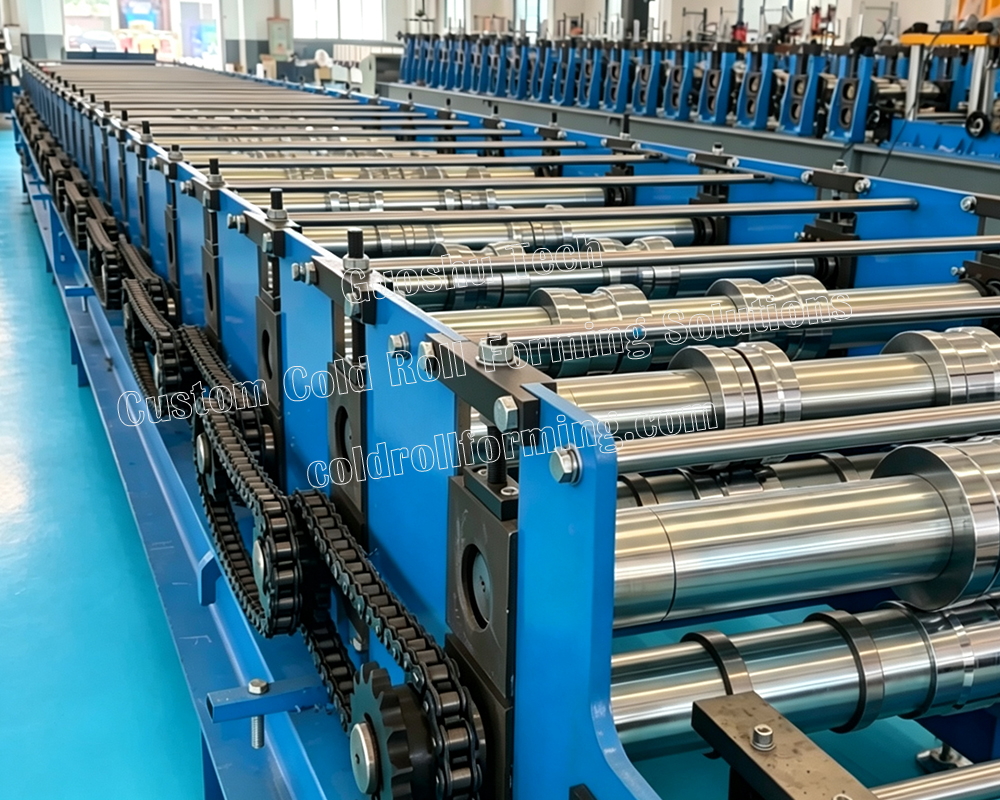

• Rollers are made of high-quality forged 45# steel or Cr12Mo5 alloy steel, finished by CNC cylindrical grinding, with high surface hardness, good wear resistance and high concentricity.
• The main shaft adopts high-precision bearing groups with adjustable clearance, ensuring stable operation, low noise and long service life.
• Feeding and cutting systems adopt servo motor drive + high-precision linear guide rails, with stable positioning and high repeated accuracy.
• The forming base is machined by CNC gantry milling to ensure high parallelism and verticality of each station.
• Equipped with fully automatic centralized lubrication system, regular quantitative oil supply, reducing manual maintenance and component wear.
• Electrical control system adopts brand PLC, touch screen, contactor and relay, with stable performance and strong anti-interference ability.
• The whole line is equipped with fully closed safety guards, emergency stop buttons and safety interlock devices in line with international industrial safety standards.
• Human-machine interface supports parameter storage, production counting, fault self-diagnosis and output statistics.

Its structural design maintains consistent accuracy whether used for wall panel forming or standing seam roofing production.

• Hydraulic uncoiler with hydraulic expansion, stable tension control and overload protection
• Six-roll or nine-roll precision leveling machine with adjustable pressure and feeding speed
• Guiding and deviation-correcting feeding device to ensure stable centering of coil materials
• Main roll forming machine with 18–28 forming stations according to profile complexity
• Servo flying shear or hydraulic fixed-length cutting system with imported guide rails
• PLC control cabinet with standard wiring and human-machine interface
• Hydraulic and pneumatic system with pressure stabilization and filtering functions
• Pneumatic unloading device or automatic finished product stacking table

The line can be configured as a dedicated metal roofing machine, a wall panel rollformer, or a combined solution for both applications.

• Applicable material: galvanized steel, color-coated steel, aluminum sheet, stainless steel
• Material thickness: 0.3–3.0 mm
• Effective forming width: 500–1250 mm (customizable)
• Forming speed: 15–40 m/min (stepless adjustable)
• Length tolerance: ±0.5–±1.0 mm
• Main shaft diameter: φ60 mm–φ80 mm (based on model)
• Frame structure: thick steel plate welded + stress relief treatment
• Roller process: CNC grinding, surface hardening, high finish
• Control system: PLC + touch screen full automatic control
• Cutting mode: servo flying shear / hydraulic fixed-length shear
• Voltage: 380V/415V/480V, 50/60Hz (customizable)
• Lubrication: automatic centralized lubrication
• Total length: 12–22 m (based on final configuration)

Our quick change roll forming capability allows easy switching for standing seam profiles or other specialized sections with minimal adjustment.

• Roof and wall cladding for steel structure factories, warehouses and logistics centers
• External wall panels for commercial buildings, stadiums and industrial facilities
• High-strength structural panels for containers, vans and special vehicles
• Decoration panels, ceiling panels and clean room enclosure panels
• Construction enclosures, partition boards and customized structural sheets

It can serve as a metal roofing machine for standing seam systems and a wall panel rollformer for facade applications.

• Custom roller design and manufacturing based on customer profile drawings
• Single-layer, double-layer and triple-layer integrated roll forming lines
• Quick change roll forming base for fast profile switching
• Anti-scratch feeding system and surface protection for stainless steel and aluminum
• Automatic loop device for non-stop continuous production
• Optional online punching, embossing and ribbing functions
• Complete plant layout, foundation drawing and installation guidance

Our quick change roll forming tooling packages enable profile switching in under 15 minutes.

• Strict quality control in cutting, welding, machining, assembly and testing
• Full pre-delivery testing: no-load running, speed test, cutting accuracy test, forming test
• Professional on-site installation, commissioning and operator training
• Complete documents: operation manual, electrical diagram, spare parts list, maintenance guide
• Long-term stable supply of original spare parts
• 24-hour remote technical support and timely after-sales service

• Professional manufacturer focused on roll forming equipment for many years
• Mature structural design, stable manufacturing process and complete inspection system
• Standardized high-quality components and stable supply chain
• Strong customized design and project integration ability
• Stable and reliable equipment for long-term industrial production
