Color Steel Tile Forming Machine
📅 Apr 24, 2026 · Read Time: 6 min
Product Overview

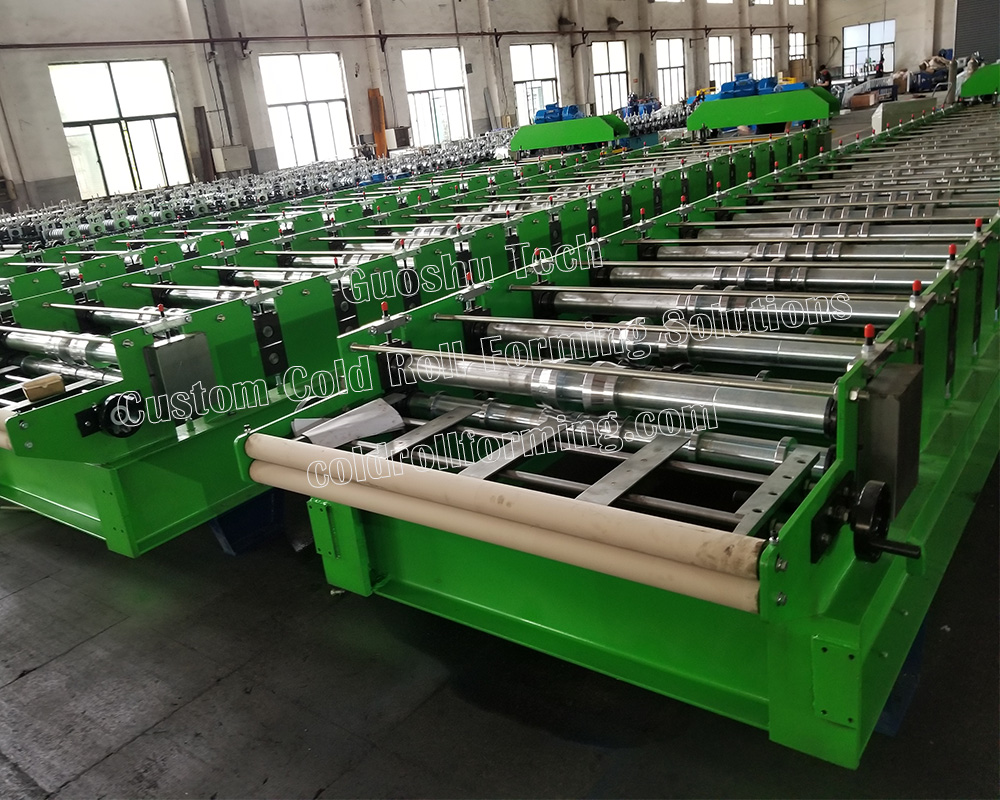

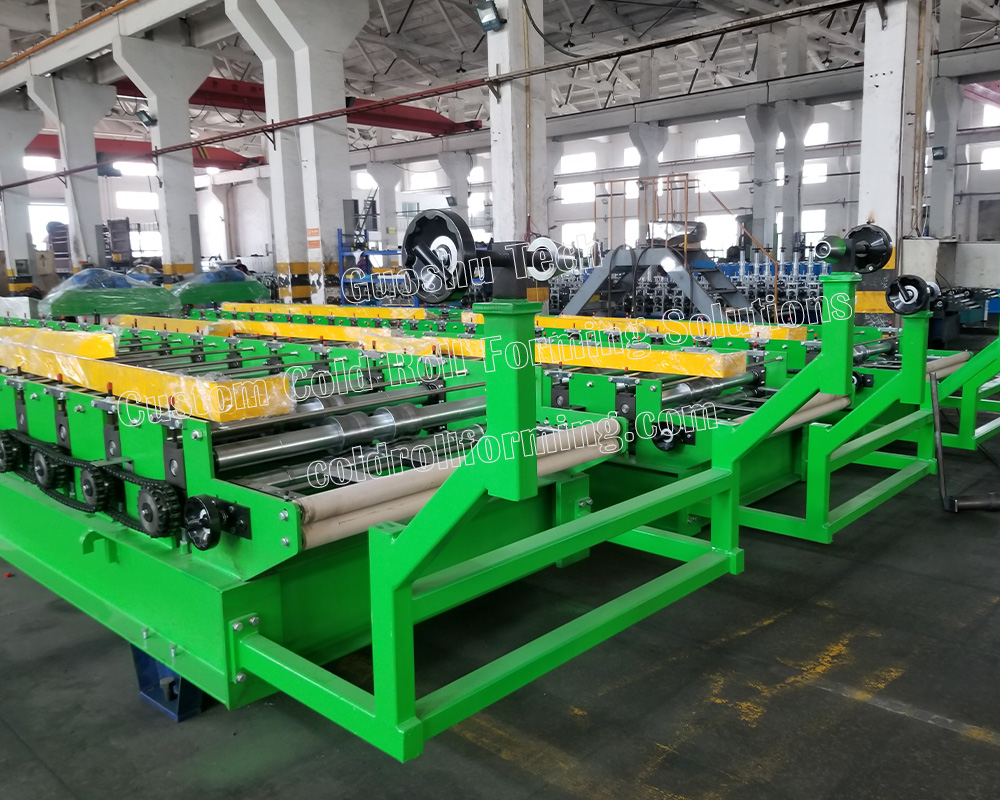

Changzhou Guosu Technology's Color Steel Tile Forming Machine is a professional equipment designed for continuous production of color steel tiles. Adopting advanced Siemens PLC control system and hydraulic transmission technology, it features high forming efficiency, stable operation and precise dimensional accuracy. Suitable for processing color steel sheets and galvanized color steel sheets of various specifications. Customization is available according to customer's tile type and size requirements.
Core Features
⚙️ High Precision Forming Multi-pass forming ensures consistent profile dimensions and smooth installation on site.
🔧 Heavy Duty & Durable Built for 24/7 continuous operation with long service life and low maintenance.
🎮 PLC Intelligent Control User-friendly touch screen interface, fault diagnosis, and automatic counting for easy operation.
✂️ Hydraulic Cutting System Post-forming shearing provides clean, burr-free cuts with high dimensional accuracy.
✅ Pre-Delivery Testing Every machine is tested with your material before shipment — test video and report provided for approval.
Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| Plate Type | Subject to mutually confirmed plate type |
| Material Thickness | 0.3–0.8mm |
| Unfolded Width | 1000mm |
| Length Tolerance | ±1mm |
| Process Flow | 3-ton Passive Core Uncoiler → Roll Forming Machine → Hydraulic Cutting → Discharge Table |
| Feeding Width | 0–1000mm |
| Steel Coil Inner Diameter | 470–530mm |
| Rated Load Capacity | 3 tons |
| Coil Expansion Method | Manual Tensioning |
| Forming Machine Type | Wall Plate Chain Drive |
| Forming Passes | Approximately 14–20 passes |
| Forming Motor Power | 7.5KW |
| Line Speed | 0–12m/min (excluding shearing) |
| Frame Type | H-beam Steel Plate Welding |
| Shaft Diameter | Φ70 |
| Shaft Material | 40CR |
| Shaft Hardness | HB220-260 (Quenched and Tempered) |
| Roll Material | GCR15 Precision Turned After Quenching |
| Hydraulic Station Motor | 4KW |
| Hydraulic Oil Pump | Vane Pump |
| Shearing Method | Post-forming Shearing |
| Shear Blade Material | Cr12mov |
| Shear Blade Hardness | HRC58-62 |
| Shear Blades Set | 1 Set |
| Inverter | Xinjie |
| PLC Control System | Xinjie |
| Computer Operation Panel | MCGS |
| Encoder | Omron |
| Bearing | Harbin |
Application Scenarios
- 🏭 Steel structure processing plants — produce roof and wall panels for industrial workshops
- 🏗️ Building material suppliers — supply color steel tiles to construction projects
- 🏢 Construction contractors — on-site tile production, reduce logistics costs
- 🏠 Residential roofing projects — villas, rural housing, prefabricated houses
- 📦 Warehousing & logistics centers — large-scale warehouse roofing and siding
Our color steel tile forming machine is built with high-precision components and a heavy-duty structure, ideal for continuous production of various roof tile profiles. Contact us for customized solutions based on your specific tile drawings.
