AG Roof Panel Roll Forming Machine
We are step tile roll forming machine manufacturers for the roofing industry. We supply roof tile roll forming machine, floor tile roll forming machine, and metal roof sheet roll forming machine.
This roofing sheet roll forming machine has 16–18 stands, GCr15 rollers, 7.5–11kW motor, and PLC control. Speed: 10–15m/min. Processes 0.2–0.8mm steel, 0.4–1.0mm aluminum, or 0.3–0.6mm stainless steel.
Our step tile roll forming machine is custom-made. The roof tile roll forming line includes a 5-ton hydraulic uncoiler.
Need a roof sheet roll forming machine? We've got you covered. ROI: 3–6 months. Send your drawing – quote in 24 hours.
This roofing sheet roll forming machine has 16–18 stands, GCr15 rollers, 7.5–11kW motor, and PLC control. Speed: 10–15m/min. Processes 0.2–0.8mm steel, 0.4–1.0mm aluminum, or 0.3–0.6mm stainless steel.
Our step tile roll forming machine is custom-made. The roof tile roll forming line includes a 5-ton hydraulic uncoiler.
Need a roof sheet roll forming machine? We've got you covered. ROI: 3–6 months. Send your drawing – quote in 24 hours.
material quality：hot-dip galvanized sheet
producer：Guosu Technology Manufacturing
wxxl2024@gmail.com
Detail
Roofing Panel Roll Forming Machine
📅 May 6, 2026 · Read Time: 7 min
Table Of Contents
1. Technical Specifications
All roll forming machinery is fully assembled at our factory in Wujin District, Changzhou City, Jiangsu Province, China. Every roofing panel machine is customized according to your profile drawing and production requirements.

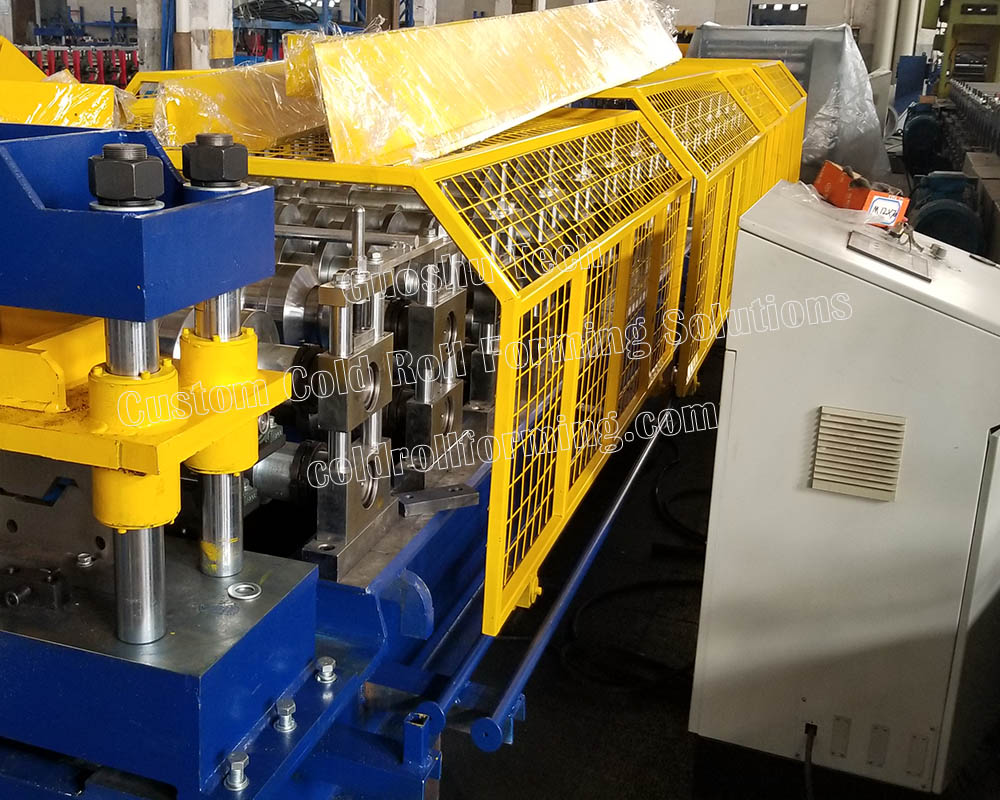

2. Machine Description & Working Process
This roofing panel roll forming machine uses metal coils to produce roof panels. The flat metal strip passes through a series of rollers and is gradually formed into the desired profile.
How a typical roofing panel machine works:
- Material Loading – Steel or aluminum coils are loaded onto the uncoiler.
- Uncoiling – The coil is uncoiled and fed into the machine continuously.
- Roll Forming – The strip passes through 16–18 forming stands, gradually creating corrugated profiles.

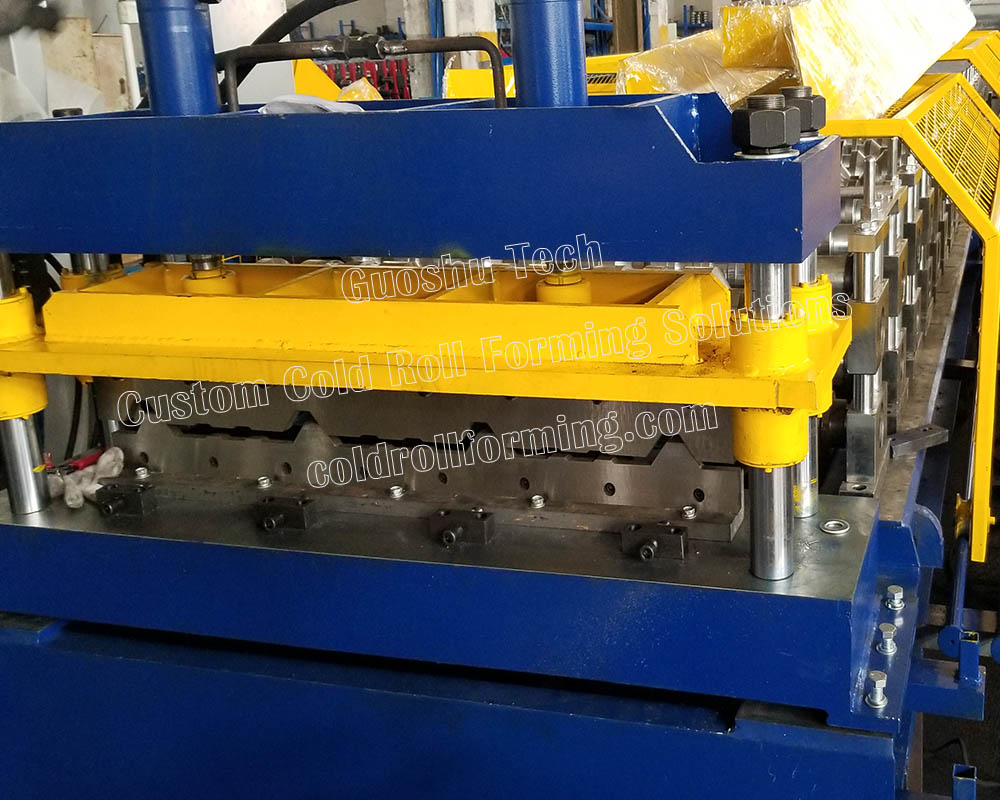

- Cutting – When the preset length is reached, the cutting mechanism trims the panel (flying cutoff optional for continuous production).
- Stacking – Finished panels are stacked and ready for packaging.
Machine size and configuration can be adjusted based on your output requirements. When selecting a roofing panel machine, send us your profile drawing, material thickness, and daily output target, and we will recommend the right configuration.

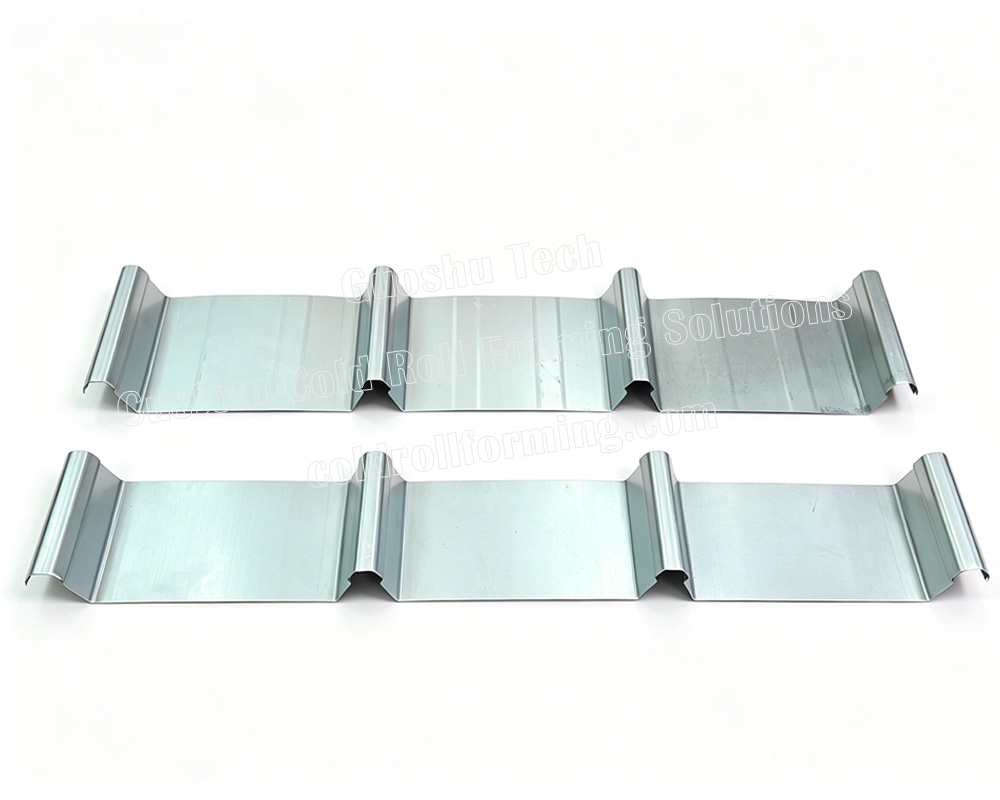

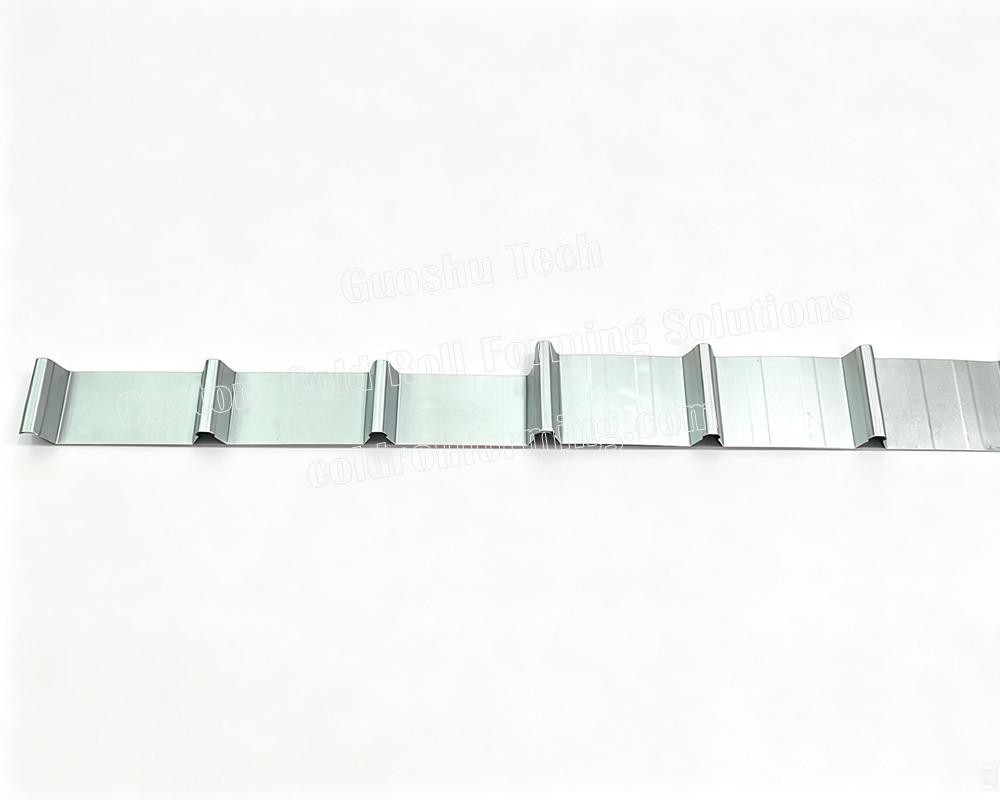

3. Metal Roofing Panel Profile & Key Features
Our machines produce various corrugated panels, commonly used in agricultural buildings, industrial facilities, and warehouses. Galvanized steel, aluminum, and coated steel are all available.
Key Features & Benefits:
- Corrugated / Ribbed Design – Continuous waves or ribs run along the panel length, increasing strength and allowing fast water drainage.
- Material Options – Galvanized steel (rust-resistant), aluminum, or stainless steel – choose based on your budget and environment.
- Versatility – Suitable for agricultural buildings (barns, storage sheds), industrial facilities, commercial structures, and residential roofing.
- Length & Width Adjustable – Standard width is approximately 36 inches, length can be set on the machine as needed.
- Easy Installation – Overlapping ribs create a secure, watertight fit with fewer screws.
- Weather Resistant – Coated steel stands up to sun, rain, and snow without rusting or fading.
- Cost Effective – More durable than standard corrugated sheets, cheaper than aluminum.
- Color Options – Blue, white gray, red, dark green – you pick the color, we source the matching coils.
- Long Service Life – 20–30 years with normal use, as long as not in highly corrosive environments.
4. Frequently Asked Questions (FAQ)
❓ What profiles can this machine produce?
Send us your profile drawing or sample (AG panel, trapezoidal, corrugated – any type). We build the rollers for your specific profile. Want to change profiles later? Just buy another set of rollers – the machine body is universal.
❓ My workshop is tight. Can 26–30 ft fit?
That's the full line length. If your space is limited, we can do a compact design or split layout. Send us your workshop dimensions and we will provide a free layout drawing.
❓ What's the production speed? How much can it produce per day?
Standard speed is 10–15 m/min. At 8 hours, that's roughly 5000–7000 meters per day. Need more? We can upgrade the motor and drive system to reach 20 m/min or higher.
❓ Can one person operate it?
Yes. One person is enough – set the length and quantity on the touchscreen and monitor the machine. The uncoiler comes with a hydraulic car, making coil loading easy.
❓ Is coil change difficult?
No. The 10,000 lb uncoiler with hydraulic car allows one person to load coils. Restringing after a coil change takes only 2–3 minutes. Want continuous production? Choose the double uncoiler option.
❓ What's the advantage of heavy duty rollers and motor?
Heavy duty rollers: Thicker walls and larger bearings – no deformation during long runs, stable with thicker materials.
Heavy duty motor: More power – won't stall or slow down when materials are slightly harder.
In short: stable with thin materials, powerful with thick materials, and holds precision for 7–8 years.
Heavy duty motor: More power – won't stall or slow down when materials are slightly harder.
In short: stable with thin materials, powerful with thick materials, and holds precision for 7–8 years.
❓ Is chain drive reliable?
Yes. Chain drive is easy to maintain and cheap to repair. For a roofing panel machine, the load is moderate, and chain drive works perfectly. If something breaks, replacing a chain is much cheaper than replacing gears.
❓ Where can I get spare parts?
We keep all wear parts in stock – rollers, blades, chains, gears, motors. Send us a photo or part name. We quote and ship the same day. DHL/FedEx delivery typically takes 3–7 days worldwide.
❓ How much does this roofing panel machine cost?
Our price is 30–40% lower than European/US brands, and 15–20% lower than some domestic Chinese brands. The exact price depends on configuration: length, number of stands, flying cutoff or not, double uncoiler or not. Tell us your requirements and we will send a quote within 24 hours.
❓ How long until I get my money back?
Based on 5000 meters per day and a processing profit of $0.07–0.14 per meter (RMB 0.5–1.0), you will recover your investment in roughly 3–6 months. If you have steady orders, even faster.
