C Purlin Roll Forming Machine PC80-300
Produces C80–C300 purlins without changing rollers. Automatic size adjustment in under 2 minutes. PLC control, hydraulic punching, ±1.5mm cutting accuracy. Ideal for steel structures, warehouses, and solar mounting.
wxxl2024@gmail.com
Detail
C Purlin Roll Forming Machine PC80-300
📅 May 7, 2026 · Read Time: 6 min
Table Of Contents
1. Product Overview
The PC80-300 C Purlin Roll Forming Machine is a high-efficiency, precision cold roll forming equipment specifically designed for continuous production of C-shaped steel purlins. Using galvanized steel coils or cold-rolled steel coils as raw material, this machine completes a series of automated processes including decoiling, straightening, roll forming, punching, and cutting to produce high-quality C-shaped steel purlins in one pass.
Thousands of years ago, people cut logs from forests to build houses, with wood being the main component including purlins. However, wooden purlins are prone to rot, insect damage, and have limited load-bearing capacity. Stone or concrete purlins, while strong, are costly and require long construction periods. With the advancement of the steel industry and the development of C/Z purlin forming machines, steel purlins have become the preferred choice for modern steel structure buildings due to their light weight, easy installation, and recyclability. Today, C-shaped steel purlins are widely used in industrial plants and prefabricated buildings.
📋 Machine Quick Details
| Parameter | Specification |
|---|---|
| Model | PC80-300 |
| Condition | Brand New |
| Type | C Purlin Machine |
| Max Production Speed | 30 m/min |
| Total Power | 22KW |
| Warranty | 1 Year |
| Place of Origin | China |
⚙️ Process Flow
Decoiler → Feeding & Leveling → Main Roll Forming → Hydraulic Punching & Cutting → Product Support Stand
2. Key Features
🔄
Quick Size Change – No Roller Replacement
Produces C80-C300 without changing rollers, shims, or tools. Automatic adjustment in less than 2 minutes.
👆
Easy Operation & Low Maintenance
User-friendly interface, simple daily maintenance, reducing labor costs and downtime.
⚡
High Productivity & Stability
Heavy-duty welded steel frame, stress-relieved for stable, reliable high-speed operation.
🔩
Flexible Punching Options
Punch on web or flange side with "stop-to-punch" mode for precise, burr-free holes.
✂️
High-Precision Post-Cutting
Self-developed mechanism cuts all sizes in one stroke with smooth, precise cuts.
3. Main Components
- Hydraulic Decoiler: Hydraulic expanding automatic decoiler with damping device, strong load capacity.
- Feeding and Leveling Device: Precision multi-roller leveling with hardened rollers and material guide.

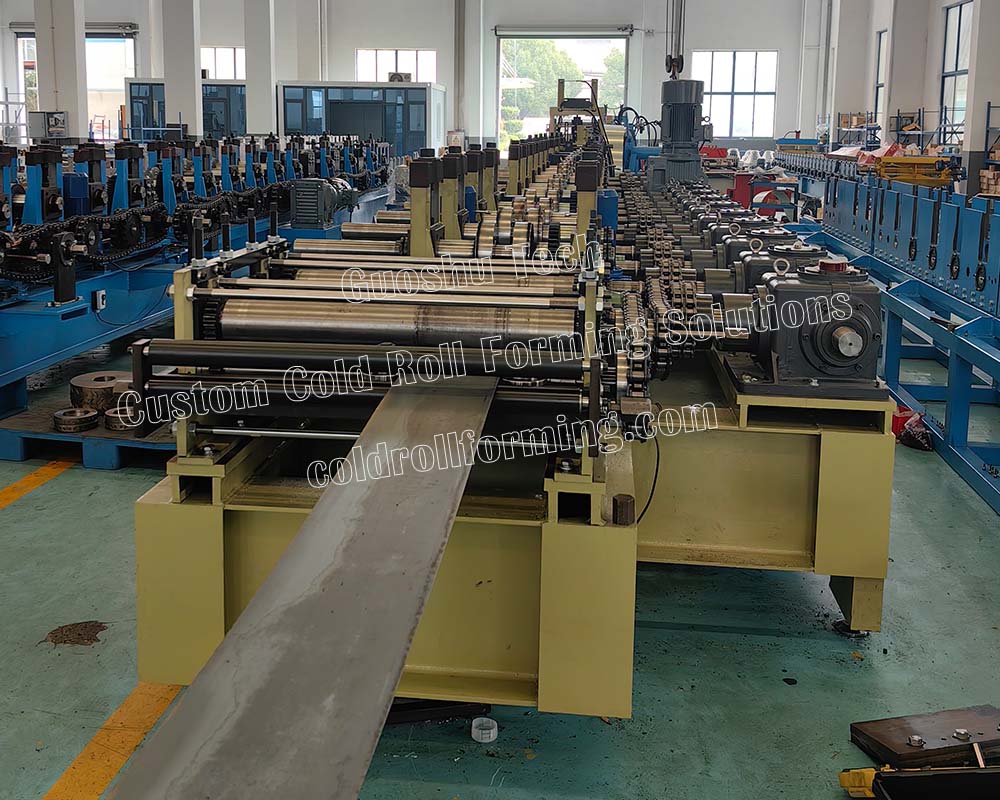

- Main Roll Forming System: High-strength precision chain drive with automatic tensioning; heavy-duty welded frame.

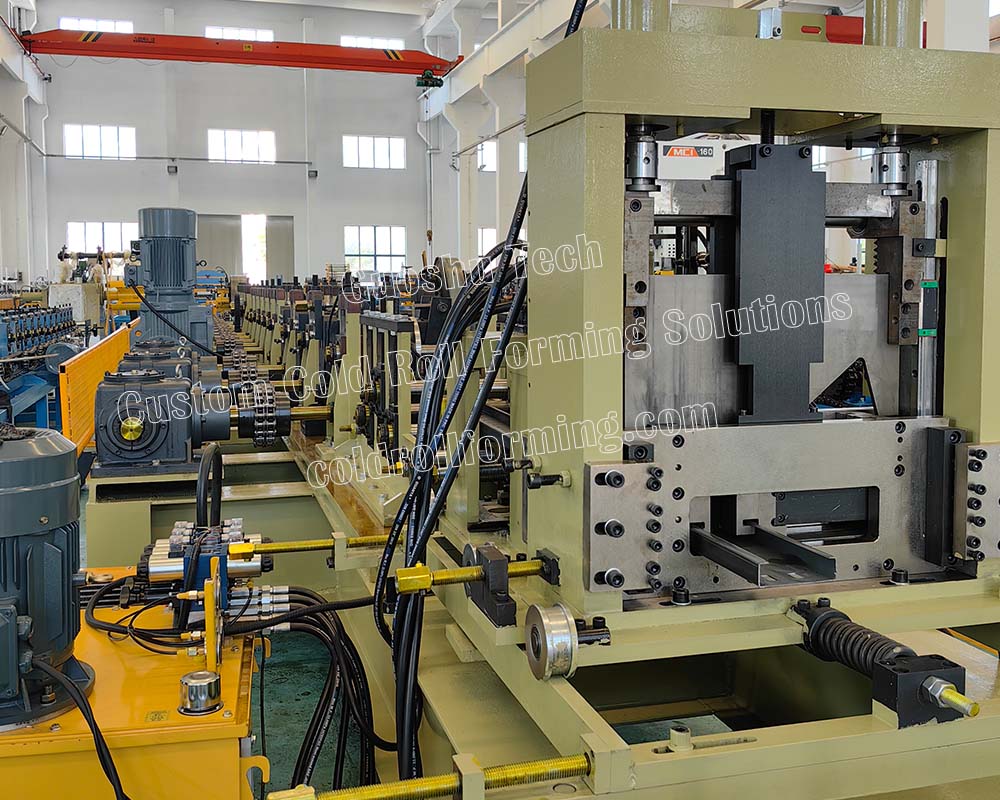

- Hydraulic Punching and Cutting System: Dual hydraulic pumps independently controlled; high-quality punching and cutting dies.
- Product Support Stand: Automatic follow-up type to prevent long materials from sagging.
- PLC Control System: First-tier brand PLC with color touch screen, storing multiple recipes.
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Materials | Galvanized / Cold-rolled / Color-coated steel coil |
| Material Yield Strength | 250MPa - 500MPa |
| Material Thickness Range | 1.2 - 3.5mm |
| Purlin Height (Web) Range | 80 - 300mm |
| Flange Width | 40 - 80mm (automatically matched) |
| Forming Stations | 17-19 stations |
| Frame Steel Thickness | 22-25mm |
| Main Shaft Diameter | 90-100mm |
| Main Shaft Material | 40Cr / 42CrMo alloy steel |
| Roller Material | Gr15/Cr12, HRC58-62, hard chrome plated |
| Drive Method | Precision chain drive |
| Working Speed | 8-15 m/min |
| Max Idle Speed | 30 m/min |
| Main Motor Power | 18.5KW - 22KW (inverter motor) |
| Hydraulic System Power | 7.5KW - 11KW |
| Cutting Length Accuracy | ±1.5mm |
| Control Method | PLC + Color Touch Screen |
🔧 Optional Upgrades
| Option | Description |
|---|---|
| Servo Size Change System | Faster and more precise size switching |
| Automatic Stacker | Automatic finished product stacking, saving labor |
| Remote Diagnostic Module | Remote debugging and troubleshooting |
| Double-Station Decoiler | Non-stop coil changeover |
| Custom Punching Dies | Custom hole patterns per drawings |
5. Applications
🏭 Steel structure industrial plants🏗️ Prefabricated buildings📦 Warehouses and logistics centers🌱 Agricultural greenhouses and farms🏟️ Commercial exhibition halls and sports venues🏠 Residential steel structure systems☀️ Solar panel mounting systems
6. Why Choose Us
✅ 15+ years of experience in C/Z purlin machines
💰 Mid-to-high-end configuration with outstanding cost-performance
🔧 One-year free warranty & lifetime technical support
🚀 Fast after-sales response with professional engineer service
⚡ Automatic size change within 2 minutes
🎨 Customization available per customer requirements
👆 Easy to operate and simple to maintain
✂️ Self-developed cutting system – one blade cuts all sizes
7. Frequently Asked Questions (FAQ)
❓ Can this machine really produce different sizes of C purlins without changing rollers?
Yes. When producing purlins in any size from C80 to C300, there is no need to change any rollers, shims, or tools. Simply enter the target size on the touch screen, and the machine will automatically adjust in less than 2 minutes. This is the biggest difference between this model and ordinary C purlin machines.
❓ Can it handle material thickness from 1.2mm to 3.5mm? What adjustments are needed?
Yes. For thicker materials (3.0mm and above), we recommend configuring 19 forming stations for better forming results. When changing thickness, the operator needs to manually adjust the roller gap of the leveling device and fine-tune the decoiler damping – these operations are detailed in the manual and can be completed within minutes.
❓ Is the cutting accuracy of ±1.5mm truly achievable? Will it drift during mass production?
±1.5mm is the accuracy specification under normal working conditions. The PC80-300 uses a high-resolution encoder with variable frequency closed-loop control to effectively reduce feeding errors. If your order requires extremely high length accuracy (e.g., within ±1mm), we recommend the optional servo feeding system, which can improve accuracy to ±0.5mm.
❓ Can punching be done on both the web and flange simultaneously? Can hole positions be freely set?
Yes. The punching system consists of two sets of devices – front punching and rear punching – corresponding to the flange and web respectively. You can freely set parameters on the touch screen including the number of holes, hole spacing, starting position, and whether to punch at intervals. Note that punching on the web and flange is sequential (completed one after another when the machine stops).
❓ Can this machine produce Z purlins, or only C purlins?
The PC80-300 is specifically designed for C purlins. If you need to produce both C and Z purlins, you may be interested in our CZ interchangeable model – by changing a small number of rollers and adjusting some stations, this model can switch between C and Z purlin production on one machine. Of course, a dedicated Z purlin machine will offer better production efficiency.
8. Conclusion
Whether you are a steel structure processing enterprise or a purlin distributor, the PC80-300 C Purlin Roll Forming Machine is the ideal choice to increase production capacity and reduce costs. With its mid-to-high-end configuration, excellent stability, and flexible size adjustment capability, this machine will help you gain a competitive advantage in the market.
