Custom Cable Tray Forming Machine for Russia - Full-Automatic CNC Production Equipment with Voltage Adaptation
material quality：hot-dip galvanized sheet
producer：Guosu Technology Manufacturing
wxxl2024@gmail.com
Detail
Cable Tray Forming Machine for Russia - Full Automatic CNC Production Equipment, Customizable Voltage
Core Keywords
Cable tray forming machine, full automatic cable tray forming machine, CNC cable tray production equipment, cable tray roll forming machine, custom cable tray forming machine for Russia, high precision cable tray machine, cable tray forming production line, Russia cable tray rolling mill, Russia perforation line for cable tray
Product Description

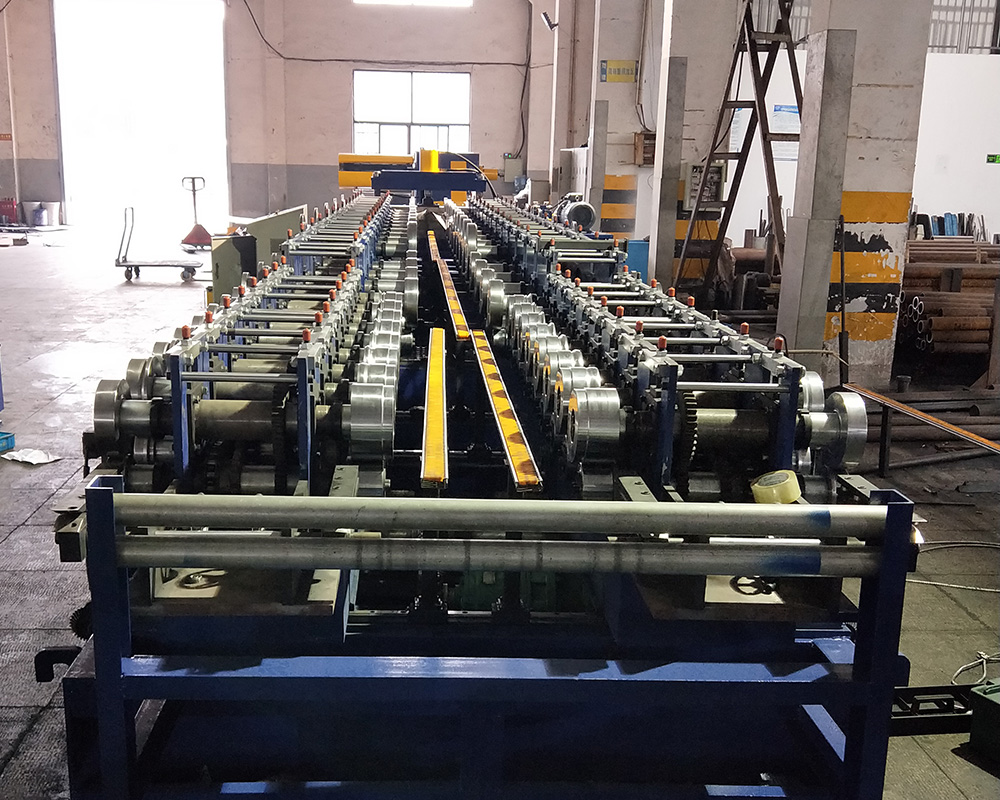

The cable tray forming machine is a fully automatic CNC production equipment specially designed for cable tray processing. Adopting advanced roll forming technology, it can realize an integrated production process from coil uncoiling, leveling, punching, forming to cutting. The equipment is suitable for processing various specifications of cable trays, including common types such as trough type, tray type and ladder type. Through the CNC system to precisely control the processing parameters, it ensures that the formed cable tray has high dimensional accuracy and smooth surface without burrs, effectively improving production efficiency and product quality.
This equipment has the advantages of easy operation, strong stability and low energy consumption. Equipped with an intelligent control system, it supports one-key setting and storage of parameters, can quickly switch between different production specifications, and meets the needs of mass production and customization. Widely used in construction electrical engineering, power communication engineering, rail transit engineering, energy and petroleum industry construction fields, it is the core equipment for cable tray processing enterprises to increase production capacity and reduce labor costs. Especially optimized for the Russian market, we provide customized solutions including voltage adaptation and technical parameter adjustment. We can adjust equipment parameters and forming molds according to customers' specific processing needs, and at the same time provide comprehensive after-sales installation, commissioning and technical support services suitable for Russian customers.
Technical Parameters
Parameter Name | Parameter Value |
Applicable Raw Materials | Cold-rolled steel plate, galvanized steel plate, stainless steel plate (material yield strength ≤ 345MPa) |
Raw Material Thickness | 0.8-3.0mm (customizable, maximum support for 3.5mm thick plates) |
Raw Material Width | 200-800mm (customizable, suitable for coils of different widths) |
Forming Speed | 5-15m/min (adjustable according to specifications, high-speed models can reach 20m/min) |

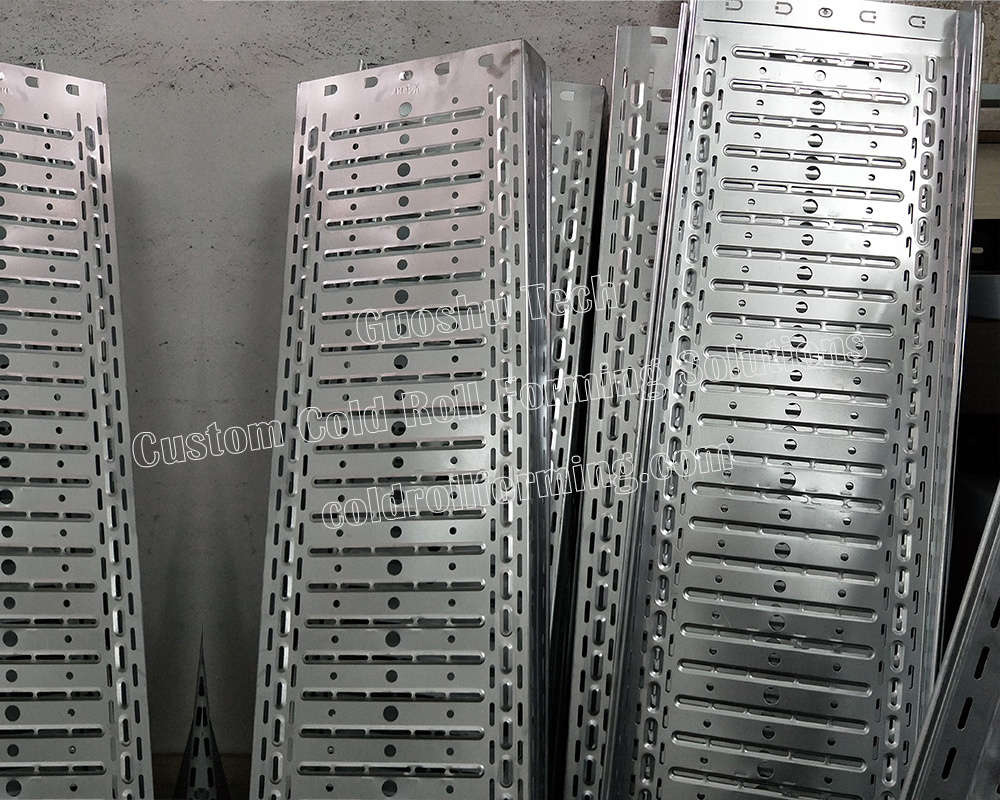

Finished Product Specifications | Trough type/tray type/ladder type cable tray, width 100-600mm, height 50-200mm (special specifications customizable) |
Cutting Method | Hydraulic cutting/pneumatic cutting (optional, hydraulic cutting is more stable, suitable for thick plates) |
Cutting Precision | ±0.5mm (length precision, repeated positioning precision ±0.3mm) |
CNC System | PLC programmable control system, equipped with touch screen operation, supporting storage of multiple sets of parameters |
Motor Power | 11-30kW (configured according to the model, forming host power ≥15kW) |
Power Supply Voltage | 380V 50Hz (three-phase five-wire system, customizable for Russia: 220V/230V 50Hz, 415V etc. special voltages) |
Total Equipment Weight | 5-15T (configured according to the model, heavy-duty models can reach 20T) |
Equipment Overall Dimensions | 8000×1500×1800mm - 15000×2000×2200mm (configured according to the model, including the length of the feeding frame) |
Core Configuration | Uncoiler (load capacity 3-10T), leveling machine (multi-roll leveling), servo feeder (feeding precision ±0.2mm), punching device (hydraulic punching, optional multi-station), forming host (multi-pass forming rolls), cutting device, receiving rack, CNC system |
Protection Level | IP54 (electrical control system IP55) |
Working Environment Temperature | -10℃ - 40℃ (relative humidity ≤85%, no condensation) |

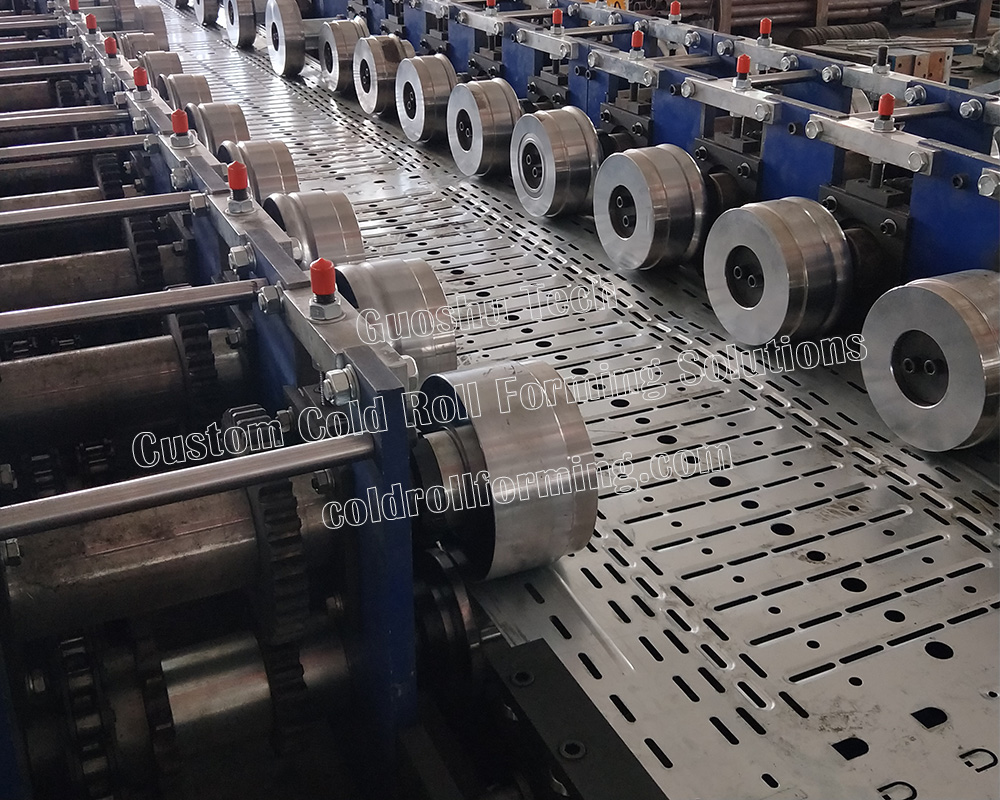

Forming Roll Material | Cr12MoV alloy steel (quenched, hardness HRC58-62) |
Hydraulic System Pressure | 16-25MPa (adjustable according to cutting thickness) |
Equipment Noise | ≤75dB (measured 1m away from the equipment) |
Warranty Period | 1-year warranty for the main machine, 18-month warranty for core components (motor, CNC system) |
