Automatic cable tray roll forming machine from Guosu Technology. Customizable cable tray production line supports multiple sizes, 0.8–2.8mm thickness, 16 m/min max speed. Complete with punching, roll forming, flying cut-off. Ideal for industrial cable tray manufacturing.
material quality：hot-dip galvanized sheet
producer：Guosu Technology Manufacturing
Book Now
wxxl2024@gmail.com
Prev: Drywall Track And Stud Roll Forming Machine
Next: Roof Panel Roll Forming Machine
Detail
Automatic Cable Tray Production Line | Cable Tray Roll Forming Machine | Guosu Technology

Automatic Cable Tray Production Line

📅 Apr 24, 2026 · Read Time: 4 min

GrandForce is a brand of Changzhou Guosu Technology Co., Ltd.

Changzhou Guosu Technology Co., Ltd. specializes in the manufacturing of Cable Tray Roll Forming Machines. The equipment is designed with a non-standard customized solution, suitable for the continuous and automated production of cable trays in various sizes and specifications.

The machine adopts a modular and adjustable structure. One roll forming production line can cover multiple cable tray sizes. By adjusting the roll forming rollers and changing the corresponding punching dies, different tray widths, heights, and hole patterns can be switched quickly, effectively reducing changeover time and improving production efficiency.

Machine Components

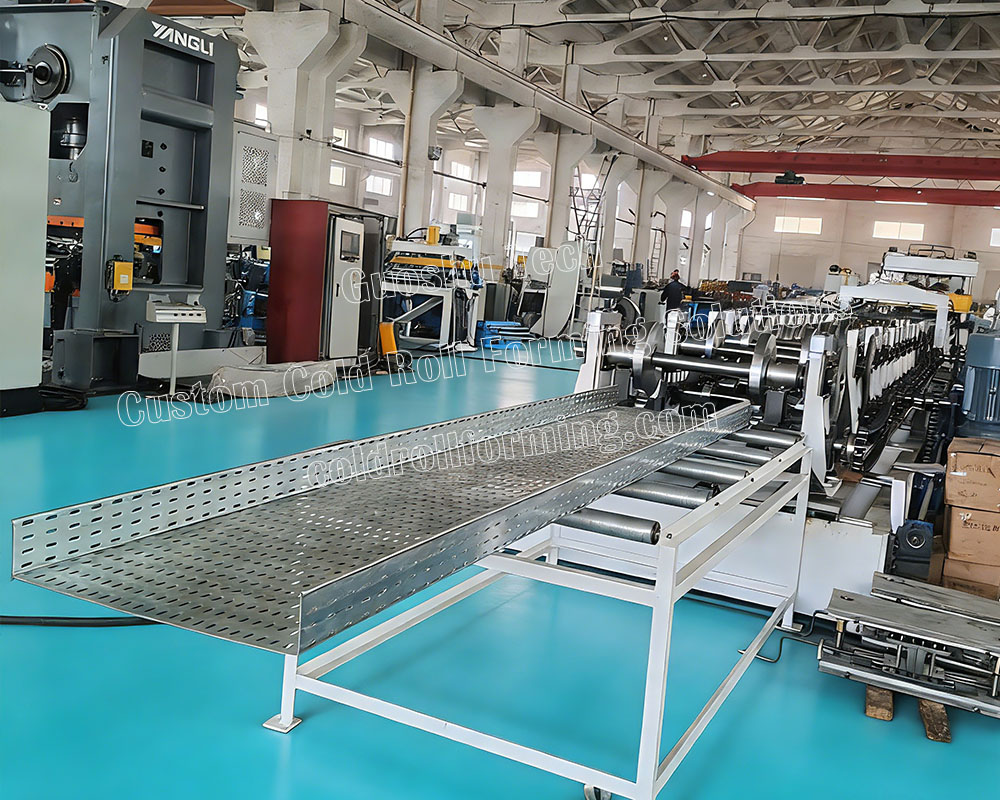

The complete cable tray roll forming line mainly consists of:

  • Decoiler
  • Leveling Machine
  • Servo Feeding System
  • Punch Press
  • Customized Punching Dies
  • Guide Frame
  • Main Roll Forming Machine
  • Flying Cut-off System
  • Run-out Table

All units operate continuously with a stable structure, ensuring high forming accuracy and clean cutting quality.

Forming Process

Decoiling → Leveling → Punching → Roll Forming → Flying Cut-off → Collecting

The continuous roll forming process is suitable for medium and large-scale cable tray production.

Technical Specifications

Why these numbers matter for your production: The right specifications directly impact your output capacity, material cost, and product quality. Below is a detailed breakdown of our cable tray roll forming machine.

ParameterSpecificationWhy It Matters
Material Thickness0.8 – 2.8 mmCovers both light-duty (0.8mm) and heavy-duty (2.8mm) cable trays. One machine handles all common thicknesses.
Tray Width Range100 – 600 mm (adjustable)Covers most standard cable tray widths. No need to buy separate machines for different widths.
Tray Height Range30 – 150 mm (adjustable)Side height adjustment without changing rollers. Saves tooling cost.
Forming Speed (with punching)~6 m/minPunching requires precise positioning — this speed ensures accurate hole patterns without deformation.
Forming Speed (without punching)Up to 16 m/minFor orders without hole requirements — higher speed means higher daily output.
Number of Forming Stations18 – 22 sets (by profile)More stations = smoother forming = less material stress. We determine the exact number based on your tray shape.
Roller MaterialGCR15 / 45# steel, quenched HRC58-62°Hardened rollers resist wear. Typical service life: 5-8 years with proper maintenance.
Main Shaft Diameterφ70 – φ85 mm (40Cr quenched)Thicker shafts prevent deflection when processing heavy-gauge steel (2.5mm+).
Main Motor Power11 – 22 kW (by thickness)Higher power for thicker materials. We size the motor according to your typical production.
Cut-off Tolerance±1.0 mm (standard) / ±0.5 mm (servo)Precise cutting reduces material waste. ±0.5mm option recommended for high-value orders.
Control SystemPLC + Touch Screen (Siemens/Delta)Save up to 50 size recipes. One operator can manage 2-3 lines simultaneously.
Power Supply380V / 50Hz (customizable)We adjust voltage and frequency to your local standard — no transformer needed.
Machine Dimensions (L×W×H)12–18m × 1.5–2.2m × 1.8–2.5mVaries by configuration. We provide workshop layout drawing before shipment.
Total Weight8 – 15 tonsHeavier frame = less vibration = better forming accuracy. Includes all main components.

Note: All specifications above are customizable. The final parameters are determined based on your profile drawing, target output, and workshop conditions. Contact us with your requirements for a tailored specification sheet.

Key Advantages

  • Non-Standard Customization
    The roll forming machine is customized according to customer specifications, production capacity, and site conditions.
  • High-Quality Manufacturing
    Core components are precisely machined to ensure long-term stable operation and reliable performance.
  • Multiple Size Compatibility
    One machine supports multiple cable tray sizes, reducing equipment investment costs.
  • Stable Forming Quality
    Consistent product dimensions with low maintenance requirements.

Applications

Widely used in cable tray manufacturing for industrial plants, commercial buildings, rail transit projects, and data centers.
