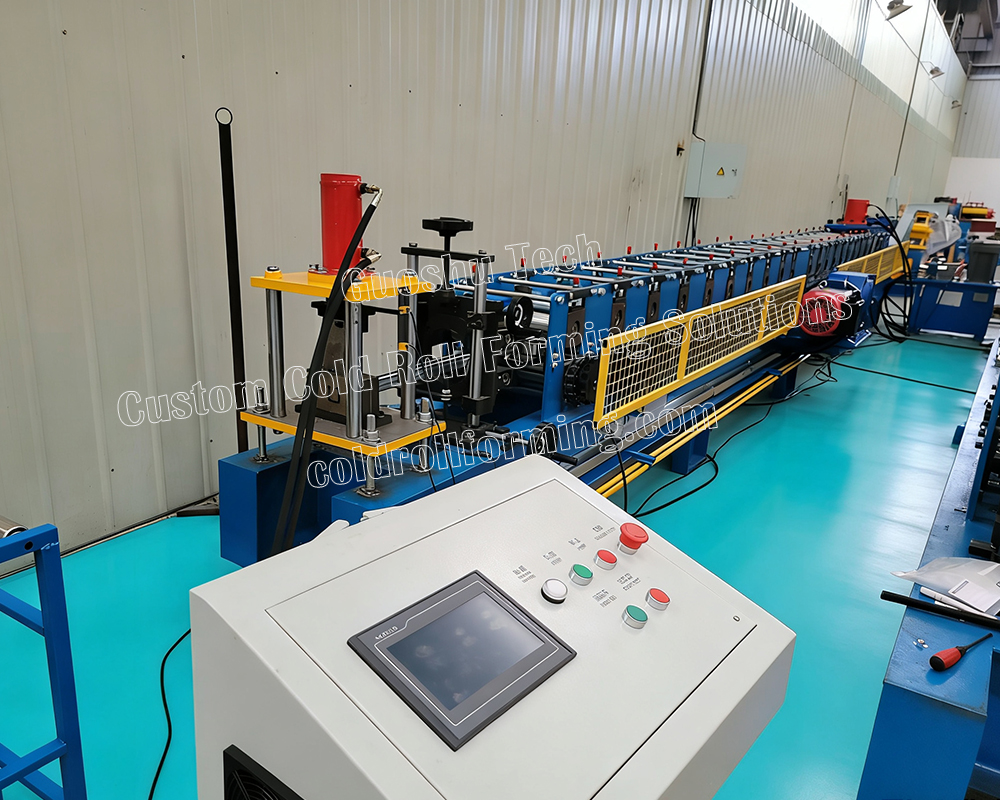

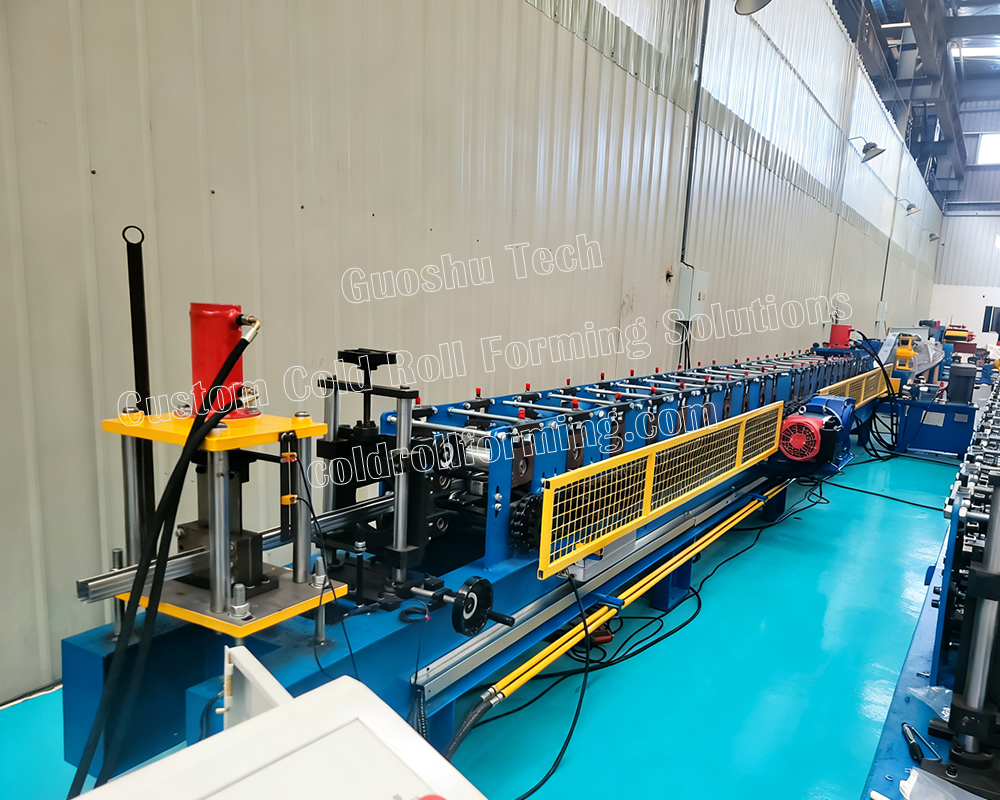

Equipment Overview: Built for the Toughest Solar Mounting Demands

When you're building a utility-scale solar farm, the mounting bracket isn't just a support — it's the backbone of the entire system. It must withstand high wind loads, resist corrosion for decades, and be produced with absolute consistency. That's exactly what our Wall Panel Chain-Type Solar PV Bracket Roll Forming Machine delivers.

Unlike standard roll formers that struggle with G550 high-strength steel — often causing twisting, spring-back, or uneven feeding — our chain-drive transmission system maintains perfect alignment across all forming stations. The result: straight, twist-free profiles even at 3.5mm thickness, with consistent hole positioning for hassle-free field assembly.

1. Core Features: Why This Machine Outperforms Standard Roll Formers

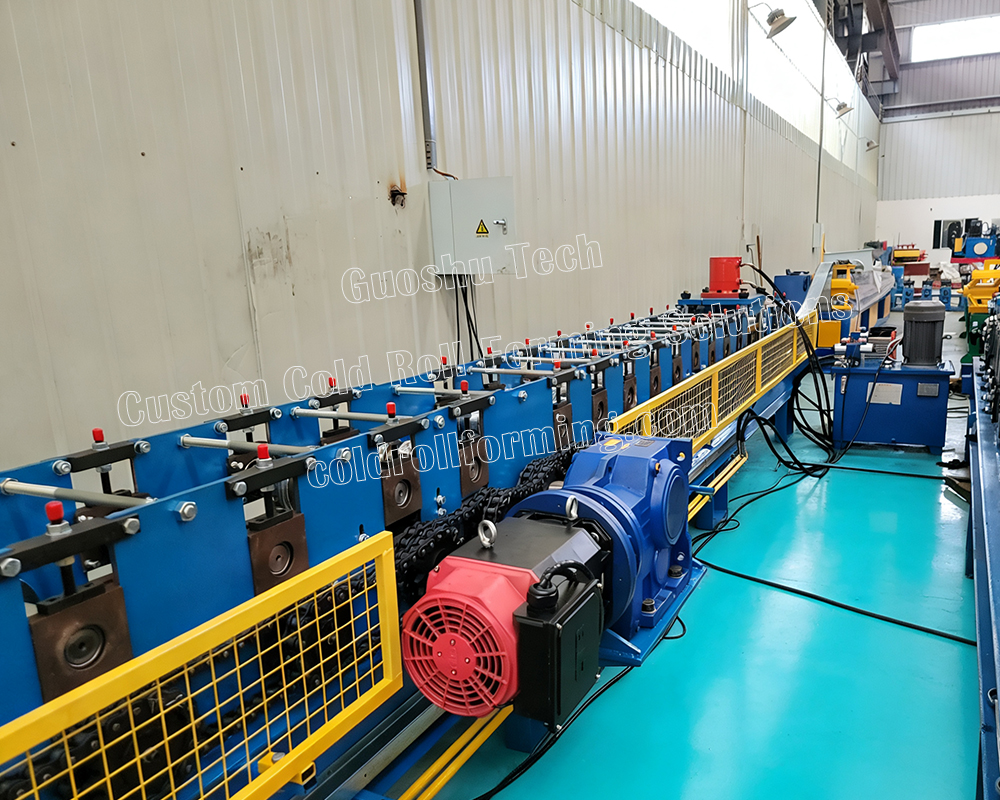

1.1 Chain-Type Transmission for High-Strength Materials

• What it does: Heavy-duty chain transmission synchronizes every forming station, eliminating accumulated torsion.
• Why it matters: When processing G550 steel up to 3.5mm thick, ordinary machines produce twisted profiles. Our chain-drive ensures straight, true profiles — your field crew spends hours less on adjustments.

1.2 True Non-Stop Customization for Diverse Profiles

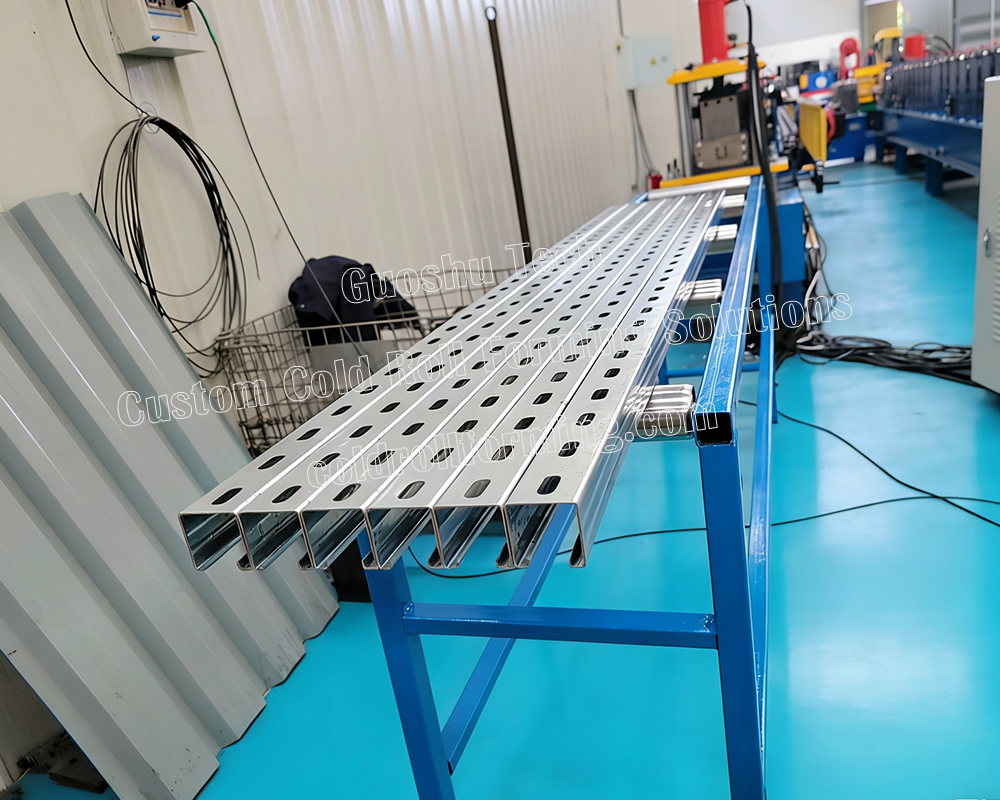

• What it does: Supports C-shaped, U-shaped, Σ-shaped purlins, plus fully custom profiles. PLC-adjustable without stopping production.
• Why it matters: One machine handles multiple projects. When bracket specifications change mid-order, you don't lose a day retooling.

1.3 Integrated Hydraulic Punching for Complex Mounting Holes

• What it does: High-tonnage hydraulic punching stations integrated inline — cuts holes, slots, and notches at ±0.5mm tolerance.
• Why it matters: Eliminates secondary drilling. Brackets bolt directly to foundation anchors without rework.

1.4 German-Standard Engineering with Premium Tooling

• What it does: Rollers made of GCR15 and Cr12MOV steel, vacuum heat-treated (HRC 58–62°) and hard-chrome plated.
• Why it matters: You get 5+ years of continuous operation before significant wear — even processing abrasive G550 daily.

1.5 Engineered for Challenging Environments

• What it does: Corrosion-resistant for coastal farms, structural strength for high-wind regions, compliant with international standards.
• Why it matters: Your brackets need to survive 20+ years outdoors. Our machine produces profiles that do.

2. Technical Specifications

Why these numbers matter: Solar bracket production is about the right balance between thickness capacity, cutting precision, and forming stability.

3. What Makes Guosu Different?

• Custom tooling, not off-the-shelf: We custom-engineer rollers for your exact profile drawing.
• True G550 speed: Many machines slow to 5 m/min to avoid twisting. Our chain-drive maintains 15–25 m/min.
• Full production workflow support: Complete layout from coil storage to finished stack.
• Test before you pay: We'll run your profile on our machine and send you a video before you order.

4. Application Scenarios

Utility-Scale Solar Farms (50MW+)

For large projects, you need thousands of identical brackets delivered fast. Our machine produces continuous lengths up to 12m with consistent hole patterns, reducing on-site welding and bolt adjustments.

Agrivoltaics Projects

Structures supporting both energy and agriculture require extra corrosion resistance. Our hydraulic punching adds drainage slots without slowing down the line.

Commercial Rooftops

Low-slope commercial roofs need lightweight but strong support rails. Our ±0.5mm precision means rails sit perfectly flat on uneven surfaces.

Solar Carports

Long-span brackets require consistent camber and twist-free profiles. Our chain-drive system is designed for long-length applications.

Floating Solar

Freshwater/coastal floating arrays demand maximum corrosion resistance. Our machine processes pre-coated coils without scratching the surface.
