Cultivation Trough Forming Machine Technical Parameters | Special Equipment for Greenhouse Soilless Culture
📅 Apr 24, 2026 · Read Time: 12 min

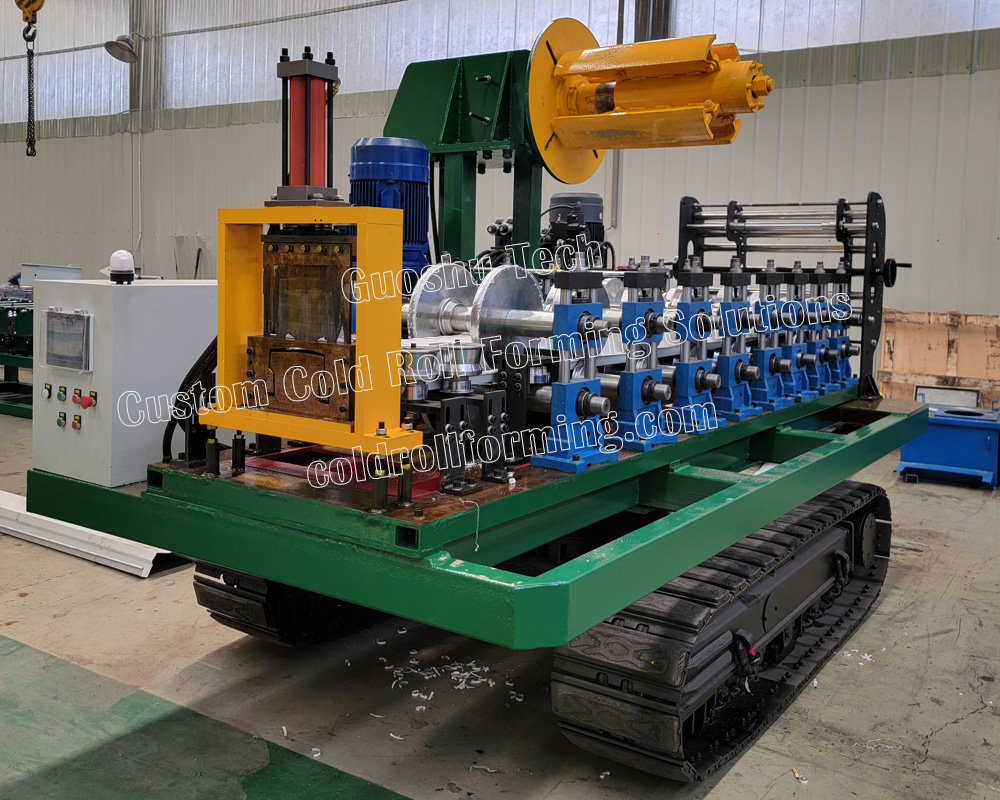

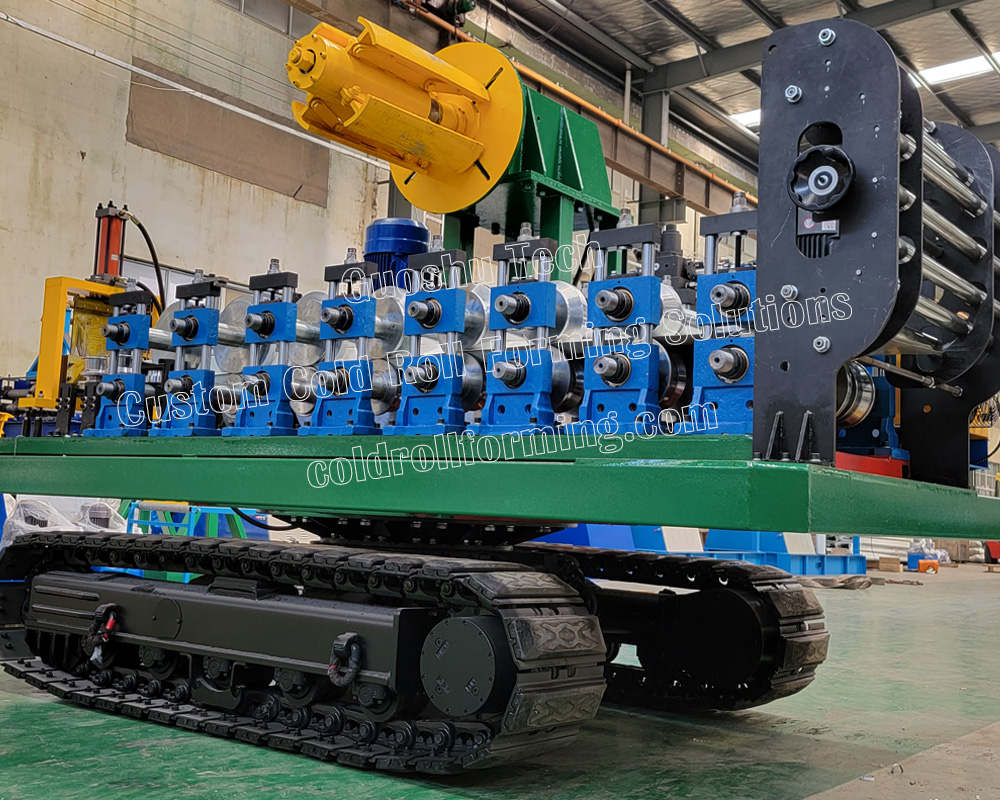

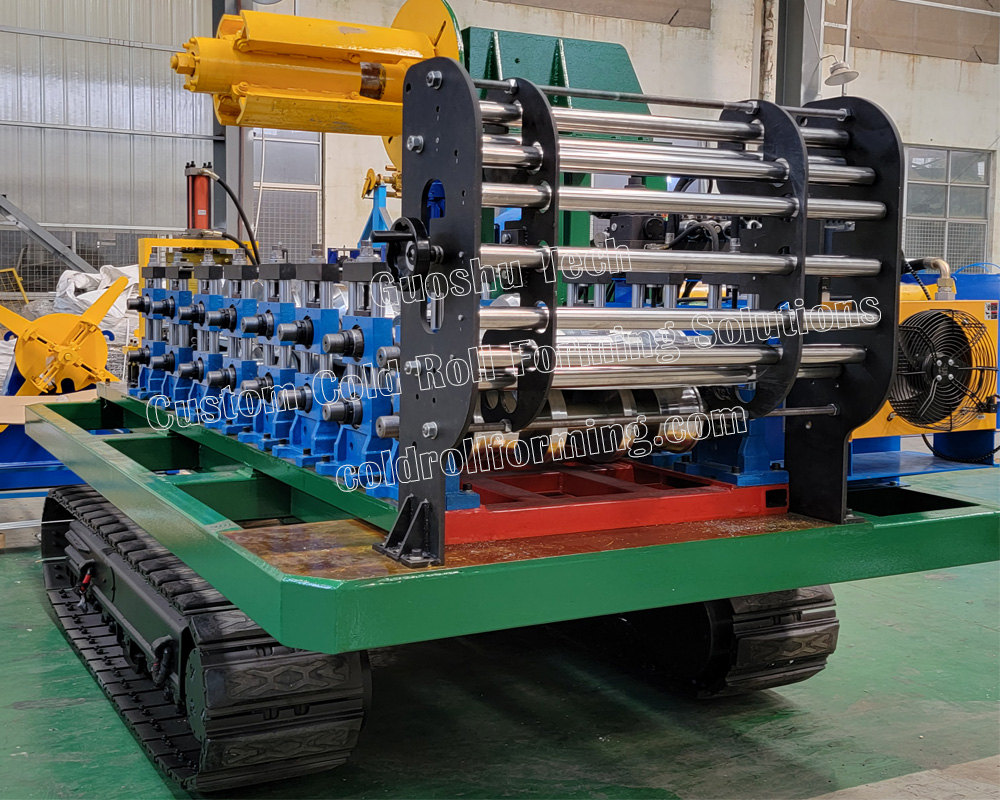

This cultivation trough forming machine is specially developed for greenhouse soilless culture scenarios, featuring core advantages such as precise forming, stable operation and high efficiency. It can meet the customized production needs of soilless cultivation troughs of different specifications. The following are the detailed technical parameters to provide professional reference for your purchasing decision.
Keywords: Cultivation trough forming machine, Greenhouse soilless culture equipment, Soilless cultivation trough forming machine, Hydraulic cultivation trough making machine
1. Overall Core Parameters
| Parameter Item | Specific Specification |
|---|---|
| Overall Dimensions (mm) | Length: Approx. 3800mm | Width: 2000mm | Height: Approx. 2700mm |
| Container Loading & Transportation Method | 20ft General Container (5898mm×2352mm×2393mm), compliant with international transportation standards |
2. Uncoiling Device Parameters
| Parameter Item | Specific Specification |
|---|---|
| Uncoiling Method | Passive uncoiling with hydraulic tightening, stable uncoiling without material deviation, ensuring forming precision |
| Reel Tension Dimensions | Inner Diameter 460mm - Outer Diameter 550mm, compatible with mainstream raw coil specifications |
| Uncoiler Load Capacity | 3-4 Tons, meeting the needs of mass continuous production |
3. Forming System Parameters (Core Forming Part of Soilless Cultivation Trough)
| Parameter Item | Specific Specification |
|---|---|
| Drive Motor | 7.5KW 380V Servo Motor, stable power output, energy-saving and efficient, suitable for long-time continuous operation |
| Rolling Wheel Configuration | 6-8 Groups of Rolling Wheels, 2 Wheels (Upper & Lower) per Group, uniform forming, ensuring smooth surface of cultivation trough |
| Rolling Wheel Middle Shaft | φ70mm 40Cr Material, Quenched and Tempered (Hardness HB220-260), high rigidity, wear-resistant and durable |
| Applicable Raw Materials | S280GD Galvanized Sheet (Compliant with EN 10142/10143 Standards), Color Coated Sheet, suitable for greenhouse humid environment |
| Raw Material Coating Process | 7μm-15μm Epoxy Paint + 20μm-25μm Polyester Fiber, corrosion-resistant, rust-proof, extending the service life of cultivation trough |
| Raw Coil Thickness | 0.6-0.7mm, compatible with mainstream raw material thickness requirements of soilless cultivation trough |
| Forming Speed | 0-40 Meters/Minute, Stepless Speed Regulation, adjustable flexibly according to production needs |
| Rolling Wheel Material | GCR15 Steel, Quenched, Precision Turned, Polished and Chromed, Hardness up to 58-62°, wear-resistant and anti-damage |
| Cutting Method | Hydraulic Automatic Cutting, supporting precise cutting by setting length, compatible with different length requirements of greenhouse cultivation trough |
| Cutting Tool Material | GCR12MOV, Hardness 58-62°, sharp cutting, smooth section without burrs |
| Maximum Cutting Length | Unlimited Length, customizable cultivation trough of any length as needed |
4. Control System & Safety Configuration
| Parameter Item | Specific Specification |
|---|---|
| PLC Control System | Siemens Brand, high control precision, stable operation, easy to operate |
| Encoder | Omron Brand, precise detection of speed and position, ensuring forming and cutting precision |
| Emergency Stop Button | 2 Pcs (1 on Main Machine, 1 on Remote Control), double safety guarantee, quick shutdown in emergency |
| Safety Warning Device | 1 Set of Safety Work Light + Buzzer, real-time warning of equipment operation status, improving operational safety |
| Operation Method | Equipped with Wireless External Remote Control, flexible and convenient operation, remote control of equipment operation |
5. Hydraulic System Parameters
| Parameter Item | Specific Specification |
|---|---|
| Hydraulic Solenoid Valve Brand | Beijing Huade, reliable quality, stable hydraulic transmission, ensuring precise and efficient uncoiling and cutting actions |
This equipment focuses on the efficient forming of greenhouse soilless cultivation troughs. Core components are selected from well-known brands to ensure long-term stable operation of the equipment. For more product details or customization needs, please feel free to consult.
