Window Frame Roll Forming Machine
Reading time: 4 minutes
As a professional manufacturer engaged in technology research, development, production, and sales of mechanical equipment, Changzhou Guosu Technology Co., Ltd. is committed to providing reliable and efficient industrial solutions for global customers.
Our high precision window frame roll forming machine is independently developed and produced for manufacturers who demand exceptional accuracy, efficiency, and durability. Based on rich experience in metal processing, this machine delivers consistent, high-quality rectangular profiles for window and door frames—helping you elevate production standards and gain a competitive edge.
Product Overview

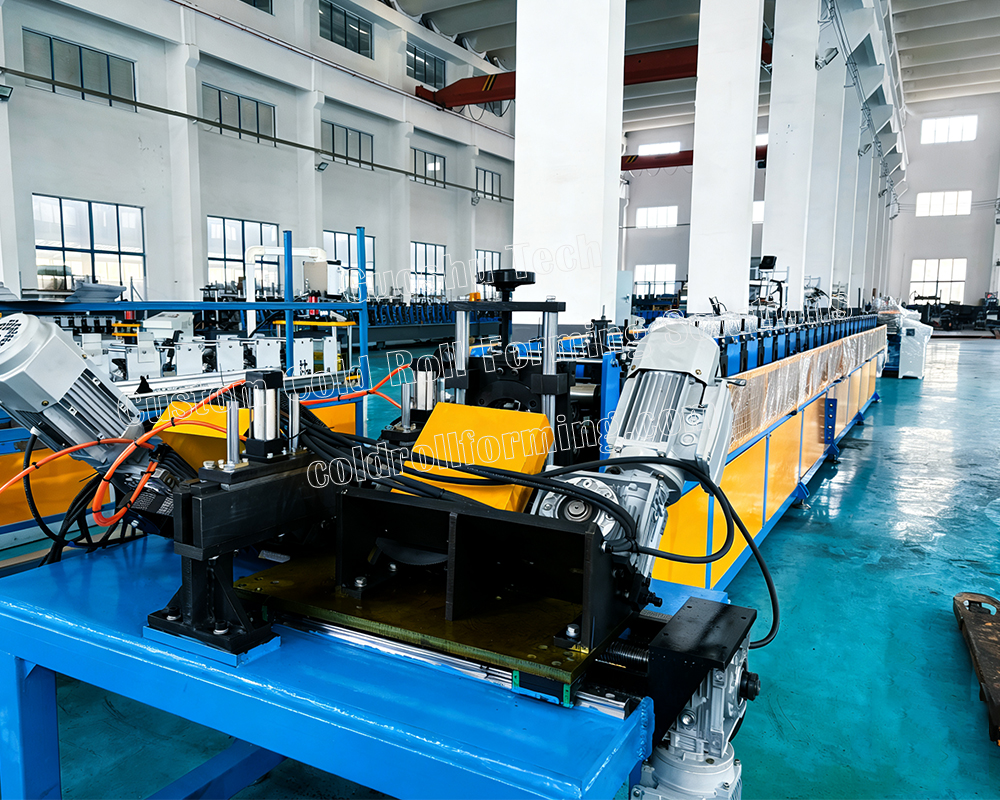

Developed specifically for mass production of high-precision window and door frame profiles, this automatic window frame roll forming machine from Changzhou Guosu Technology features a galvanized steel body for excellent corrosion resistance and structural stability.
The machine integrates automatic feeding, precise hydraulic punching, and high-efficiency roll forming functions. Every produced profile meets strict quality standards, making it suitable for high-end markets. With our own R&D capabilities and import/export qualifications, we continuously optimize performance to meet diverse global needs.
Technical Specifications
| Item | Specification |
|---|---|
| Material | Galvanized Steel |
| Material Thickness | 0.3mm – 0.5mm |
| Decoiler | 2-in-1 Automatic with Leveling Function |
| Feeding System | Servo Feeder |
| Punching System | Hydraulic Punching with Servo Control |
| Roll Forming Stations | 26 stations |
| Roller Material | GCr15 Steel, Hard Chrome Coated |
| Transmission | Chain Drive (Gear-box optional) |

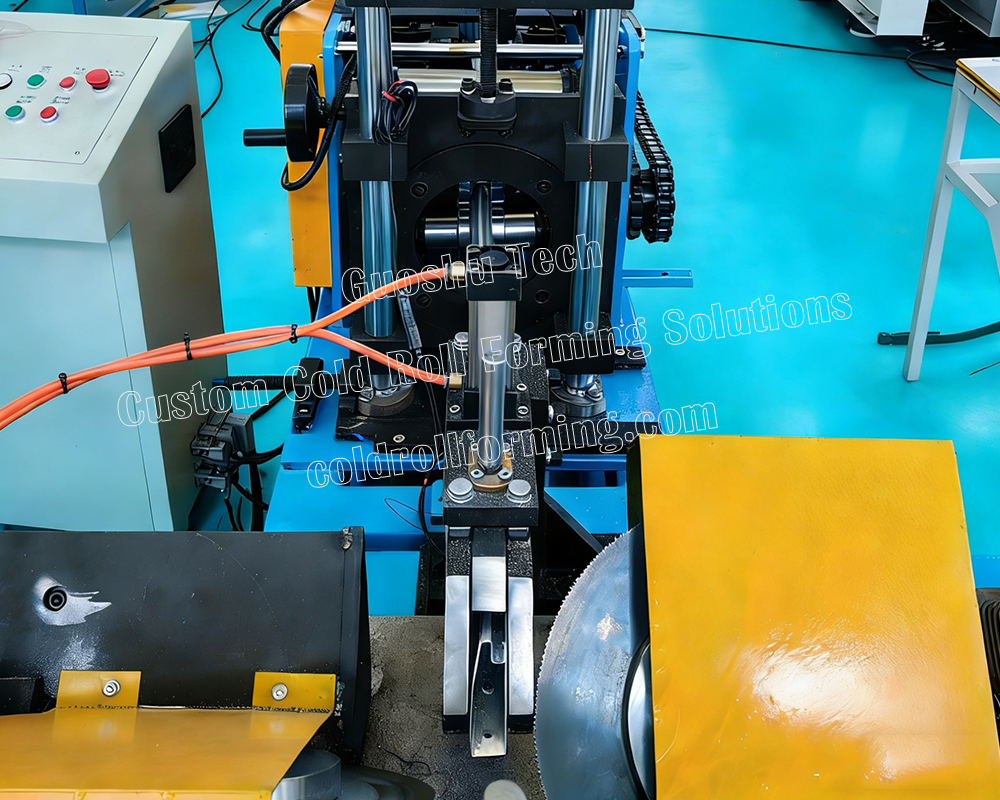

| Cutoff System | 45-Degree Flying Saw Cutoff |
| Cutting Control | Independent PLC for Cutoff |
| Punching Control | Separate PLC for Punching |
| Production Speed | 10–15 meters per minute (cutting not included) |
| Output Profile Type | Window / Door Frame Profiles (Rectangular) |
| Power Requirement | 380V, 50Hz, 3 Phase (customizable) |
| Line Dimension (approx.) | 20m x 2m x 1.8m (L x W x H) |
Core Advantages
High-Quality Material & Durability
Galvanized steel body and GCr15 steel hard chrome coated rollers provide strong corrosion and wear resistance, reducing maintenance costs and ensuring long-term stable operation.
Precise Control & Reliable Quality
Equipped with independent PLC control systems for punching and cutting, servo feeding, and hydraulic punching technology, achieving precision up to ≤0.1mm for consistent profile quality.
Full Automation & High Efficiency
2-in-1 automatic decoiler with leveling, servo feeder, and 45-degree flying saw cutoff enable full automation, reducing labor input by 60% and significantly improving production efficiency.
Customizable Design & Professional Service
As a professional manufacturer with import/export qualifications, we customize power requirements, profile sizes, and additional functions (e.g., gear-box) to meet diverse market needs. Comprehensive after-sales support provided.
Applications
This high-precision automatic window frame roll forming machine is widely used in:
- Large-scale manufacturing plants
- Building material factories
- Window & door production enterprises

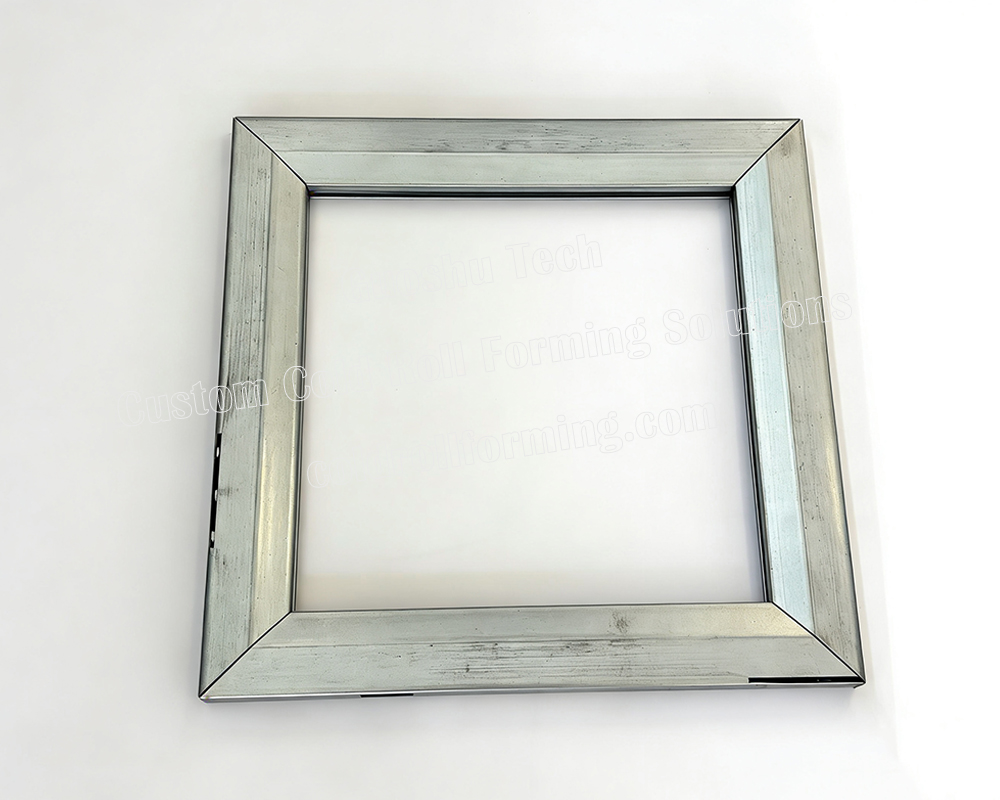

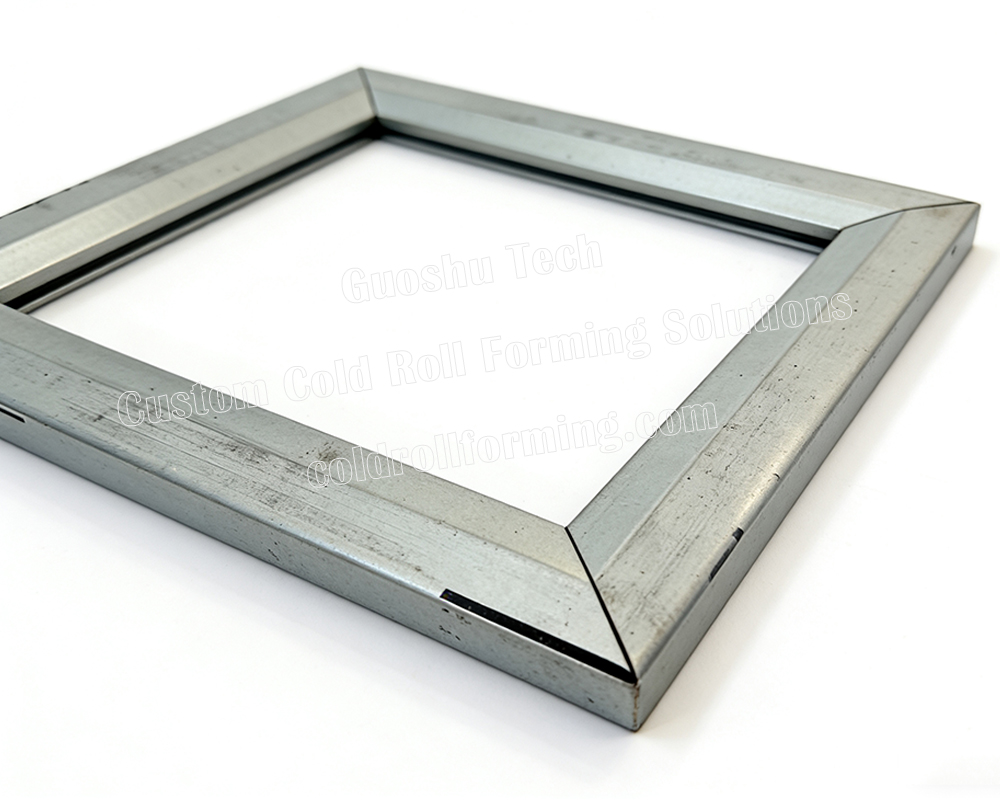

It produces high-quality window frames, door frames, and related rectangular profiles suitable for:
- Residential buildings
- Commercial buildings
- Industrial workshops
- Other construction projects
Based in Changzhou Wujin, we offer convenient transportation and complete industrial supporting facilities for timely delivery and professional technical support.
Frequently Asked Questions
What is the minimum order quantity for this window frame roll forming machine?
We accept single machine orders with no minimum quantity. Contact us for details.
Can the machine produce different sizes of window frames?
Yes, the machine is customizable for different profile sizes. Our engineering team will adjust according to your requirements.
What is the delivery time for export orders?
Typically 30–45 days after deposit confirmation, depending on customization level.
Have more questions? Please visit our FAQ page for more details.
