When investing in a cold roll forming machine or a custom roll forming machine, many buyers focus on obvious factors like price, delivery time, or maximum material thickness. However, one of the most critical technical details—the number of forming stations—is often overlooked. Yet, this single parameter can make the difference between a production line that delivers flawless profiles and one that struggles with dimensional instability, surface defects, and premature tool wear.

At Changzhou Guosu Technology Co., Ltd., we believe that true customization begins with engineering decisions tailored to your specific profile. As demonstrated in our recent project delivering a custom door and window frame roll forming machine to a client in India, we designed the line with 33 forming stations.[Read the full project story: Unlimited Possibilities: Custom Cold Roll Forming Machine for Door & Window Frames – Any Size, Any Shape.] This was not a random number; it was the result of careful analysis to ensure optimal forming quality for their complex profile requirements.

What Are Roll Forming Stations?

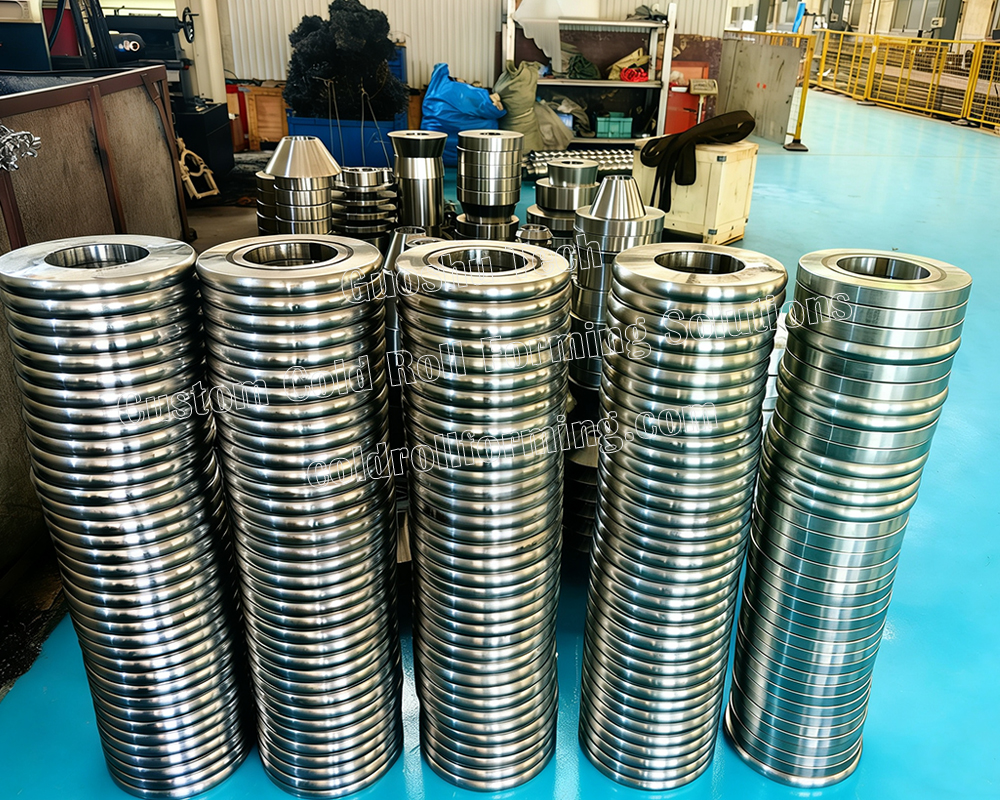

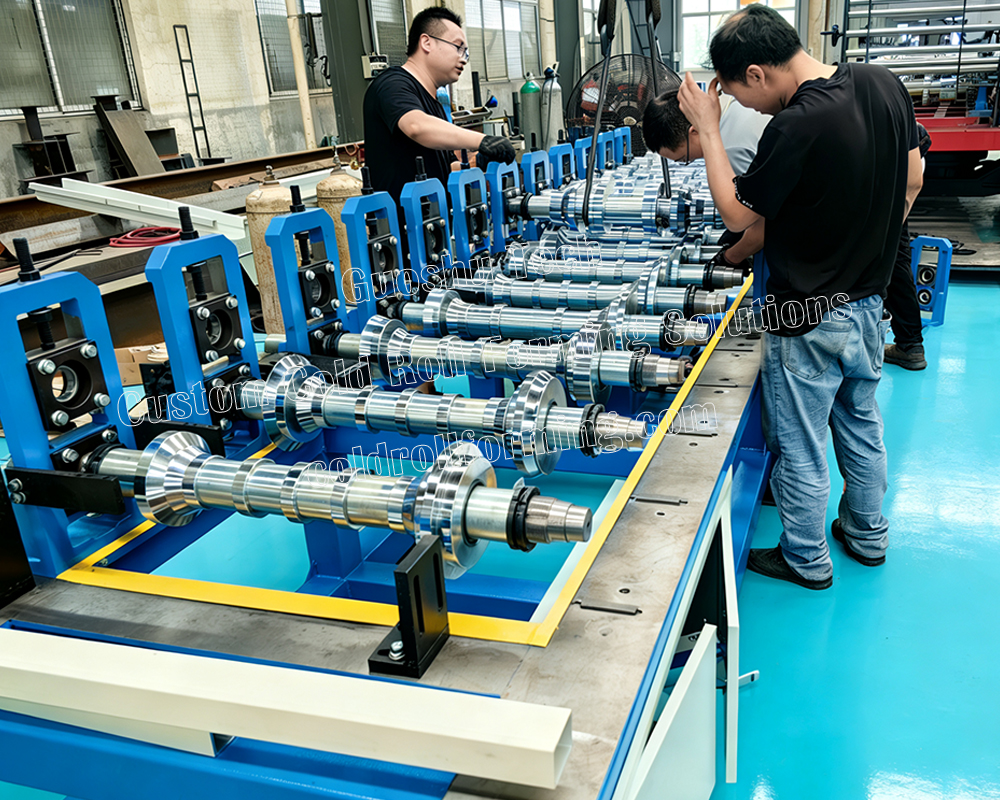

A roll forming station consists of a pair of top and bottom rollers that gradually shape a metal strip as it passes through the machine. Each station performs a small, incremental bend. By the time the strip exits the final station, it has been transformed into the desired profile.

The number of forming stations determines how gradually the material is formed. Fewer stations mean more aggressive bending per step, while more stations distribute the deformation across smaller, gentler increments. The number of forming stations directly impacts your final product quality, production efficiency, and tooling lifespan.

Why the Number of Stations Matters

1. Material Stress and Springback

When metal is bent too aggressively, internal stresses build up. These stresses can lead to springback—where the profile tries to return to its original flat shape after forming—resulting in dimensional inaccuracies. A higher number of forming stations allows for smoother deformation, reducing internal stress and minimizing springback.

2. Surface Quality

Aggressive bending can also cause surface defects such as scratching, marking, or micro-cracking, especially on coated materials like pre-painted galvanized steel. More forming stations ensure that each bend is gentle, preserving the integrity of the surface finish. This is particularly important for high-quality custom roll forming.

3. Dimensional Accuracy

Complex profiles with tight tolerances require precise control at every stage. Additional forming stations provide more opportunities to refine and stabilize the shape before the final exit, ensuring consistent dimensions across the entire production run. This is a key advantage of custom engineered roll forming solutions.

4. Tool Wear and Machine Longevity

When fewer forming stations are used, each set of rollers bears a heavier load. This accelerates wear and increases maintenance frequency. A properly engineered number of stations distributes the workload evenly, extending tool life and reducing downtime.

How We Determine the Right Number of Stations

At Guosu, there is no "one-size-fits-all" formula. Our engineers analyze several factors to calculate the optimal number of forming stations for each custom roll forming machine:

• Profile Complexity: More complex cross-sections with multiple bends, asymmetrical shapes, or narrow tolerances require more stations.
• Material Type: Different materials behave differently. High-strength steel requires gentler forming, while aluminum may need fewer stations but more precise alignment.
• Material Thickness: Thicker materials demand more gradual deformation to avoid stress concentration.
• Production Speed: Higher speeds may require additional forming stations to maintain stability and accuracy.

For our Indian client's door and window frame roll forming machine, the profile involved multiple bends and required high dimensional consistency for downstream assembly. Our engineering team determined that 33 forming stations provided the ideal balance between forming quality, production efficiency, and tool longevity.[Explore how this custom solution enabled the client to take on complex, high-value orders: Unlimited Possibilities: Custom Cold Roll Forming Machine for Door & Window Frames.]

The Guosu Advantage

When you choose a custom roll forming machine from Changzhou Guosu Technology Co., Ltd., you are not buying a standardized machine with a fixed number of stations. You are investing in an engineered solution where every component—including the number of forming stations—is optimized for your specific profile. This ensures high-precision roll forming and reliable production for complex profiles.

Let Our Engineers Analyze Your Profile

If you have a profile drawing and want to know how many forming stations your project requires, send it to us at wxxl2024@gmail.com. Within 48 hours, our engineers will provide a professional analysis and a customized roll forming solution tailored to your profile requirements.
