1. Introduction: Automatic Gutter Corner Forming Machine

The Automatic Gutter Corner Forming Machine is a high-precision, custom-engineered solution for manufacturing gutter corners and downspout components. Designed for non-standard roof drainage systems worldwide, this machine delivers ±0.1mm accuracy, automatic mold changeover in ≤3 minutes, and supports K-style, box, round, and custom profiles.

2. Quick Specs

3. Designed for Non‑Standard Roof Systems Worldwide

In the global roof drainage and metal roofing industry, standardized equipment is no longer sufficient.

North America primarily uses K‑style gutters, Europe prefers box gutters, while Australia often adopts custom roof drainage systems. Combined with different waterproofing standards such as ASTM, EN, and AS/NZS, many overseas manufacturers face the same problem:

The machine does not match real production requirements.

At the same time, the industry is shifting toward multi‑profile, small‑batch production. Traditional machines rely heavily on manual operation and manual mold changeovers, resulting in long downtime, rising labor costs, and limited flexibility.

Changzhou Guosu Technology Co., Ltd. developed its Automatic Custom Gutter Corner Forming Machine specifically for this reality. Instead of pushing a one‑size‑fits‑all solution, we focus on:

• High quality
• Non‑standard customization
• Full‑process automation

4. Practical Automation & Customization Based on Real Production Needs

With years of experience in building material forming equipment, we understand two consistent challenges faced by overseas manufacturers:

• High labor costs
• Complex and varied production scenarios

This machine is designed to balance automation and flexibility. It is not marketed as a universal solution, but as a practical productivity upgrade that adapts to real production lines.

5. High‑Accuracy Custom Forming

±0.1 mm Tolerance to Reduce Waterproofing Risk

Corner accuracy directly affects gutter waterproofing performance. Even small deviations can lead to leakage and costly rework.

Our system allows precision calibration based on project requirements, achieving tolerances down to ±0.1 mm, fully compliant with international waterproofing standards.

The entire process—from feeding and forming to cutting—is fully automatic, eliminating random human error and ensuring dimensional consistency across every produced piece.

This testing process was added after early projects revealed that precision alone was insufficient in heavy‑rain regions. Climate‑specific validation is now part of our standard workflow.

6. Production Speed Customization

Flexible Output with Minimal Downtime

Labor cost efficiency depends directly on equipment productivity. Our automated system is designed to support different production scales without forcing unnecessary investment.

Example applications:

• Small European manufacturers operating in low‑energy modes (30–60 m/h)
• Large North American suppliers running high‑speed production (80–120 m/h)

The modular mold interface and servo positioning system were refined over multiple iterations, reducing changeover time from over 10 minutes in early designs to the current performance level.

7. Intelligent Material Adaptation

The machine automatically adjusts forming speed and pressure based on material thickness (0.3–1.2 mm):

• Thinner materials: Reduced speed to prevent deformation
• Thicker materials: Increased pressure for proper forming

This eliminates constant manual parameter adjustments and improves consistency across mixed material orders.

8. Full Shape Customization

From Drawings to Production

Roof drainage profiles vary widely across regions. Standard machines struggle with:

• K‑style gutters
• Box gutters
• Round gutters
• Irregular or project‑specific profiles

Our system supports:

• 90° / 135° standard corners
• Custom angles and profiles
• Custom lengths

Engineers work directly with customer drawings or samples, covering design optimization, tooling development, and trial validation.

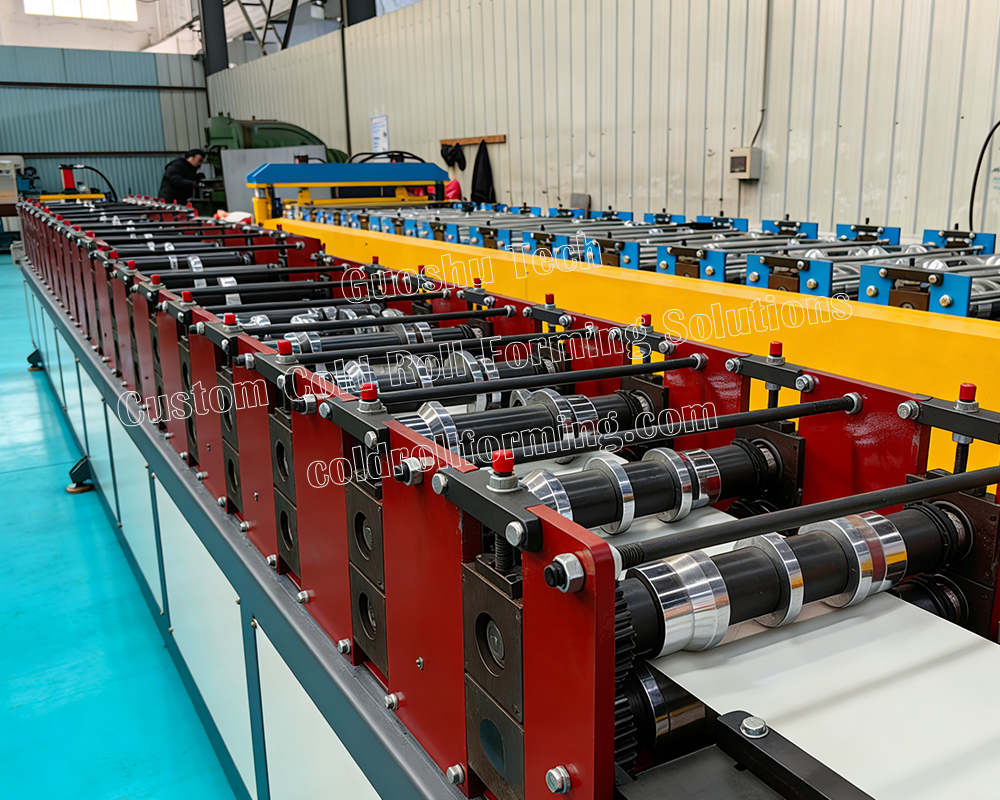

The core technology enabling this flexibility is our adjustable forming roller system, allowing profile changes without replacing complete tooling sets—reducing cost and downtime.

9. Built for Durability in Overseas Environments

International customers place high importance on equipment reliability due to the cost and complexity of overseas maintenance.

Field results show stable performance in high‑humidity and heavy‑rain environments, with an expected service life of 8–10 years.

10. Compliance & Material Compatibility

• Certifications: CE / UL / CSA
• Supported materials:
  • Aluminum (6061 / 3003)
  • Color‑coated steel
  • Galvanized steel
  • Copper

Applicable thickness range: 0.3–1.2 mm

11. End‑to‑End Support for Overseas Customers

Customization extends beyond equipment delivery.

Spare parts for wear components are kept in stock with typical delivery within 7 days.

12. Global Applications

Our automatic custom gutter corner forming machines are in operation across:

• United States
• Germany
• Australia
• Canada

Serving over 200 overseas customers in residential, commercial, industrial, and municipal projects.

13. Looking Ahead

We continue to invest in automation and customization technologies, including material recognition systems currently under testing. Once validated, these upgrades will further reduce manual parameter input and improve consistency.

If you are evaluating solutions for non‑standard gutter corner production or frequent profile changes, we are available to discuss feasibility and configuration options.
