Single vs Double Layer Roofing Sheet Machine: How to Choose the Right High-Speed Configuration for Dual Profiles

The configuration of a high-speed metal trapezoidal roofing sheet roll forming machine directly affects the production efficiency of any roofing sheet factory, especially for manufacturers focusing on versatile dual-profile panel production.

Choosing between a single layer and a double layer roofing sheet roll forming machine requires careful evaluation of your target output goals, factory floor space, and long-term scalability.

• Daily output requirements for two different roof profiles
• Available factory floor space
• Long-term production scalability and product mix

Whether you are integrating a high-speed trapezoidal rollformer or adopting a fully automatic one, the structural differences between single and double layer systems will significantly impact your production line flexibility and overall efficiency.

This article compares key differences between single and double layer equipment and helps overseas manufacturers select the ideal configuration for their specific panel requirements.

1. Production Capacity & Output

✅ Single Layer – High Volume, Single Panel Type

• Ideal for factories producing one profile type continuously
• Stable production speed: 8–60 m/min (model dependent)
• Consistent output quality for standard roof panels
• Best for steady, single-profile market demand

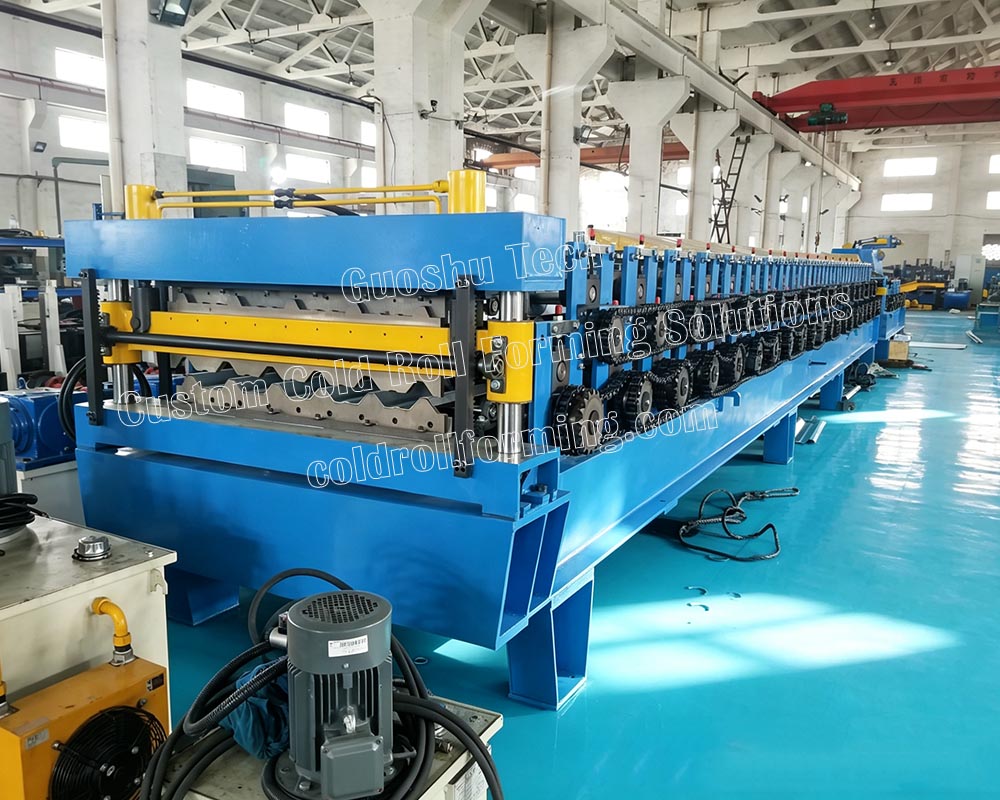

✅ Double Layer – Two Roof Profiles on One Machine

• Produces two different panel shapes using the same base frame
• Cannot run both layers simultaneously – only top or bottom layer at a time
• PLC system stores cutting length and quantity for batch production of two profiles



👉 Quick summary:
Single profile, high volume → Single Layer Machine
Multiple profiles, flexible production → Double Layer Machine

2. Operational Efficiency & Changeover Time

Single layer advantage: Simple maintenance, lower operator skill requirement.

Double layer advantage: Fast switching between different panel styles, ideal for minimizing downtime when fulfilling mixed orders.

3. Factory Space & Layout

📐 Single Layer Machine

• Each profile requires a dedicated machine
• Typical footprint (model 840): 5500mm × 1300mm × 1200mm
• Multiple profiles mean significantly more floor space required

📦 Double Layer Machine

• Vertically stacked forming design for two panel types
• One machine footprint for producing two different profiles
• Shared components: Decoiler, Roll former, Cutter, Control box, Hydraulic pump, Run-out tables

👉 Best for: Small workshops or factories with limited expansion space.

4. Investment Cost & Long-Term Value

💡 Long-term perspective: If you plan to produce two or more profiles, a double layer machine delivers better ROI and saves factory space.

5. Maintenance & Technical Complexity

🔧 Single Layer Machine

• Simple mechanical structure
• Fewer synchronized moving components
• Lower failure rate for long time running
• Routine maintenance completed by general technicians

⚙️ Double Layer Machine

• Shared hydraulic and intelligent control systems
• Maintenance on any shared component requires full machine stop
• Recommended: Choose suppliers with reliable after-sales support and adequate spare parts inventory

✅ Tip: Before buying a double layer machine, confirm spare parts supply and local technical support availability.

6. Typical Applications & Market Suitability

• Materials: Galvanized steel, pre-coated steel, aluminum
• Thickness range: 0.2–0.8mm metal sheet
• Technology: Cold roll forming + hydraulic cutting for trapezoidal panels

✅ Final Verdict: Which One Should You Choose?

Choose a Single Layer roll forming machine if:

• You produce only one panel type long-term
• You have a limited equipment budget
• You have sufficient factory space for multiple machines
• You have a small technical maintenance team

Choose a Double Layer roll forming machine if:

• You need to produce 2 or more different panel types
• Your factory space is limited
• You want lower long-term total investment cost
• You need fast changeovers for mixed customer orders
